Move ahead with the power to do more
-
Semi Elliptical Leaf Spring
Suspension
-
3100 mm
Wheelbase
-
225 Nm
Torque
-
75 HP
Engine Power

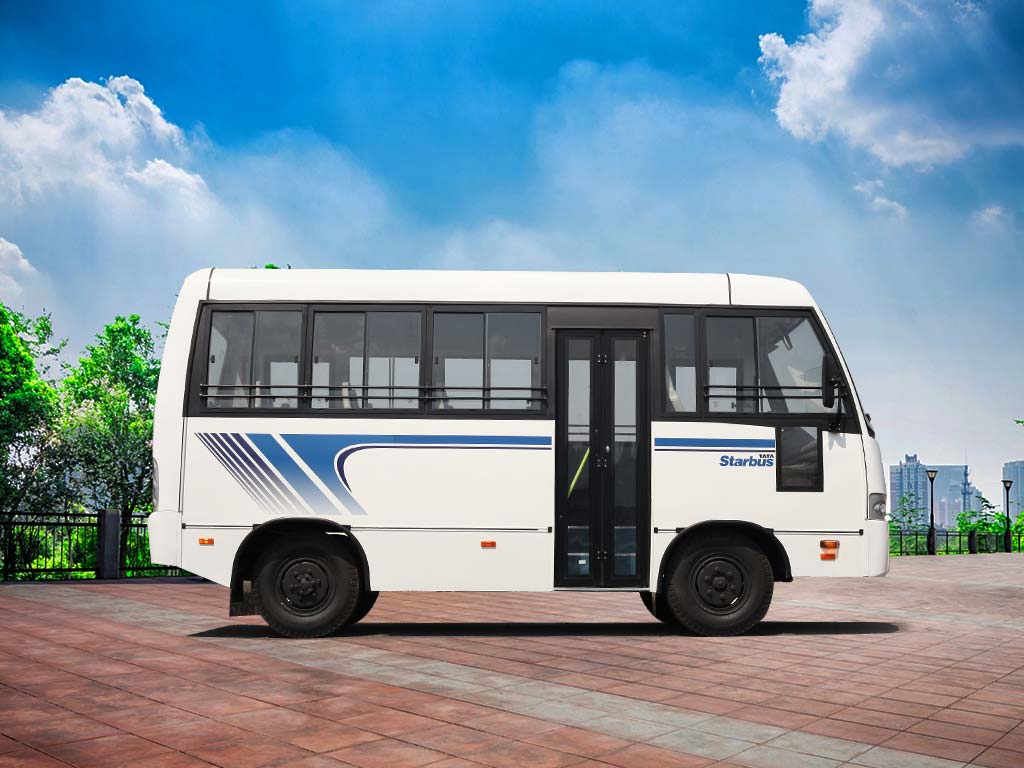

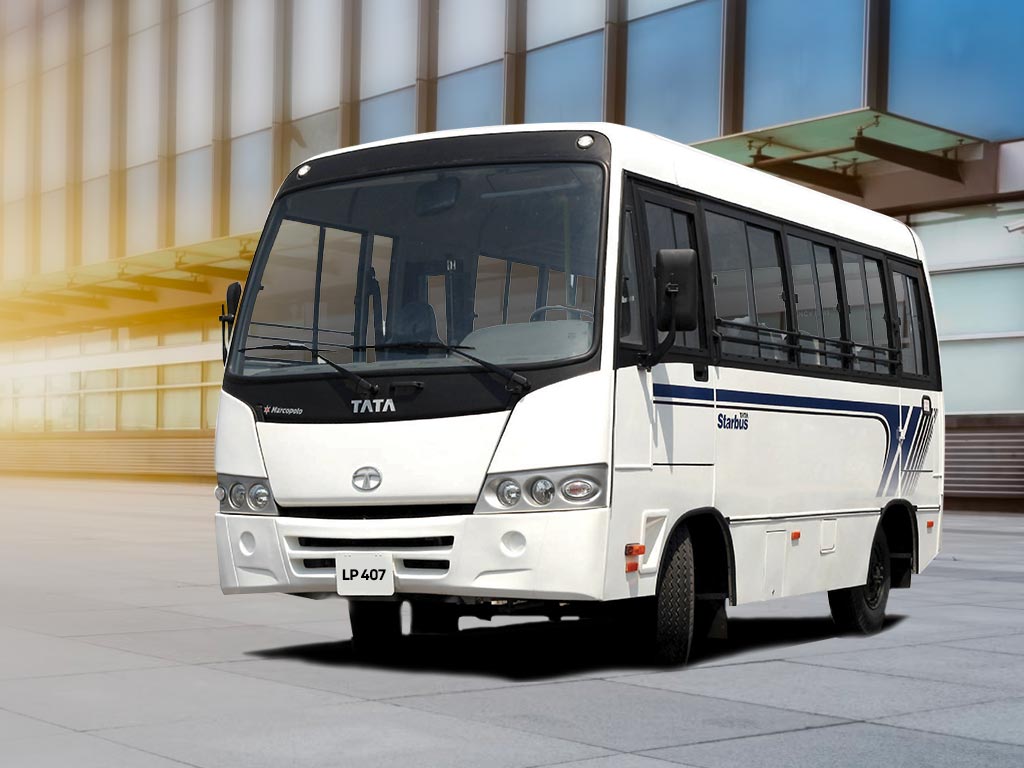

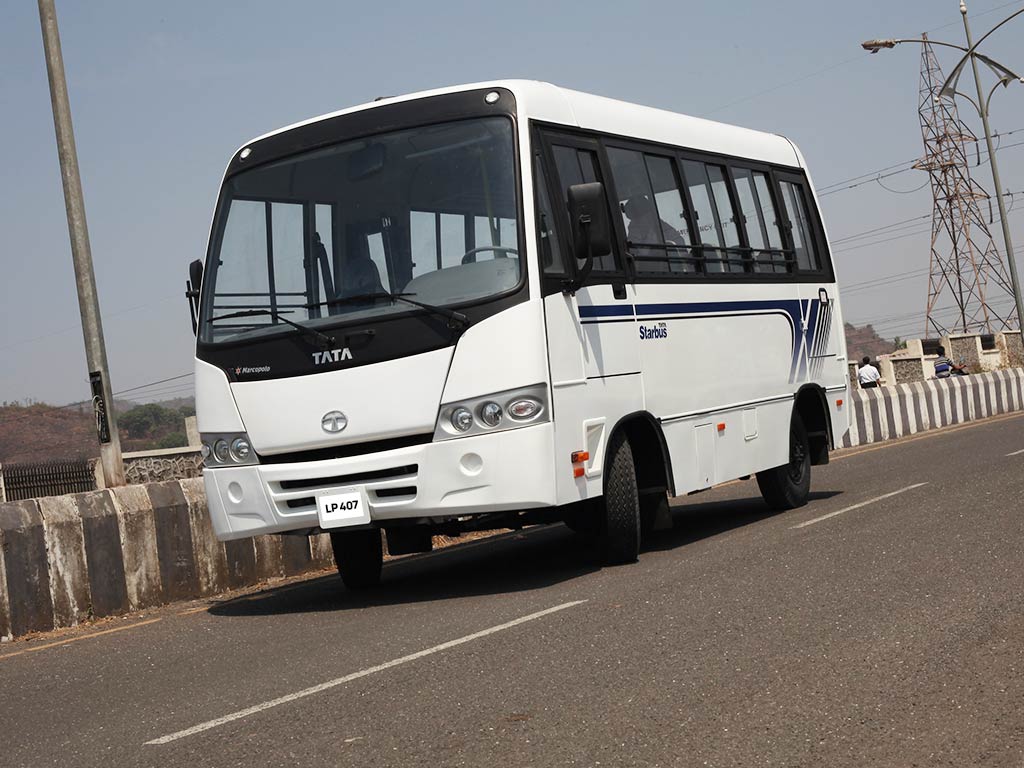

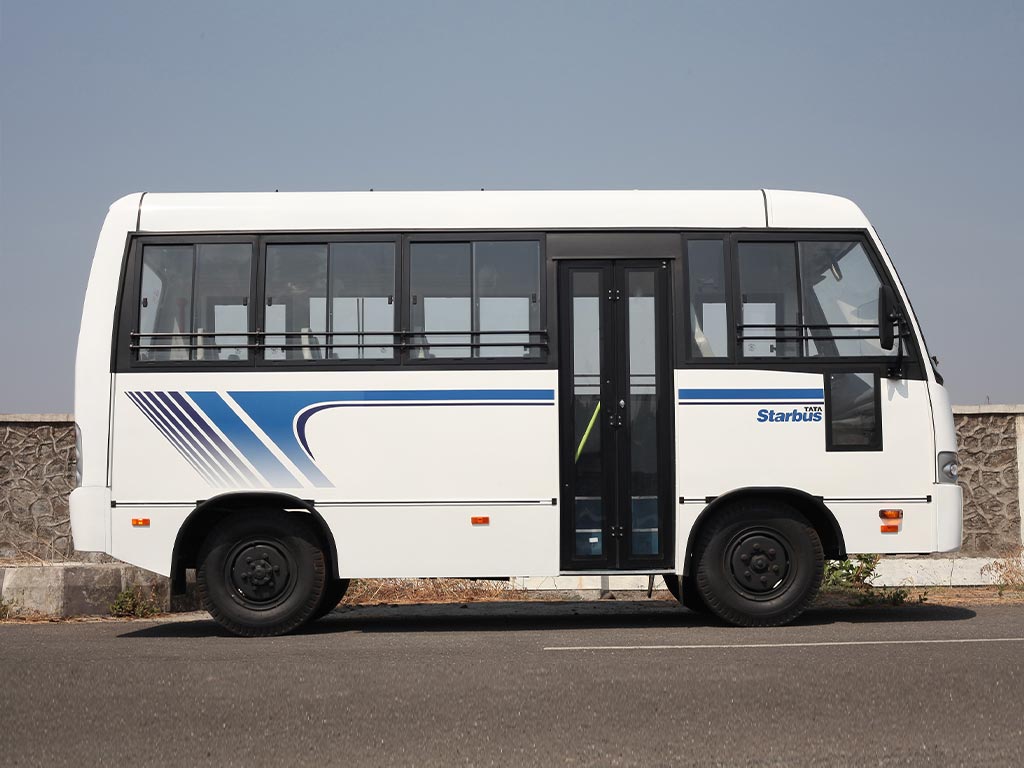

LP 407
Elevate the travelling experience for your passengers with the Tata Motors LP 407. Powered by an efficient Tata 497 SP Turbo BSIIl engine, this bus delivers a maximum power of 75 HP at 2800 rpm and a torque of 225 N-m @ 1500-1800 RPM. This reliable and optimally powered engine with best-in-class torque provides maximum fuel efficiency.
The 5-speed GBS-18 Synchromesh gearbox ensures smooth and precise gear shifts, optimizing performance and fuel efficiency. Safety takes precedence with the vacuum-assisted dual-circuit hydraulic brake system featuring a tandem master cylinder, providing responsive braking control. The suspension system, equipped with semi-elliptical leaf springs with ARB, ensures a comfortable and stable ride for passengers.
- Robust Tata 497 SP TURBO BSIII Engine
- 75 HP Maximum Power
- Tata 5 Speed GBS-18 Synchromesh
- Vacuum-Assisted Dual Circuit Hydraulic Brake System with Tandem Master Cylinder
Optimized wheelbase of 3100 mm, this bus offers ample space for passengers to travel in comfort. Experience reliable performance and passenger comfort with the Tata Motors 407, designed to redefine your transportation journey.
Features designed for performance and profits
01LP 407 specifications
Engine
TATA 497 SP TURBO BSII
Engine Type
BHARAT STAGE II
Engine Capacity
2956 cc
Max Engine Output
55.2 Kw (75 PS) at 2800 rpm
Cylinders / Displacement
4 Cylinder / 2956 cc
Max Speed
101 kmph
Torque
225 Nm (22.9 mKg) at 1500-1800 rpm
Gradeability
24.2%
Gear Box
GBS-18 Synchromesh
Clutch
240 mm Dia Single plate dry friction type
Steering System
Mannual Steering (STANDARD) Hydraulic power assisted steering
Brakes
Vaccum assisted dual circuit hydraulic with tandem master cylinder
Suspension
Semi Elliptical leaf Spring with ARB
Suspension - Front
Semi Elliptical leaf springs
Suspension - Rear
Semi Elliptical leaf springs
Tyre Size
7.00 X 16 - 12 PR Radial
Length
5375 mm
Width
2140 mm
Height
2487 mm
Wheelbase
3100 mm
Turning Circle Diameter
12400 mm
GVW
5600 kg
Kerb Weight
1982
Fuel Tank Capacity
60 litres
Battery
12V,70 Ah
Alternator
65 A
Seats
20+D
Warranty
1 Years / 64,000 Kms
