Move ahead with the power to do more
-
11R22.5
Tyres
-
16%
Maximum Gradeability
-
1550 Nm
Maximum Torque
-
Suspension
Parabolic Spring and Semi Elliptical Leaf Spring

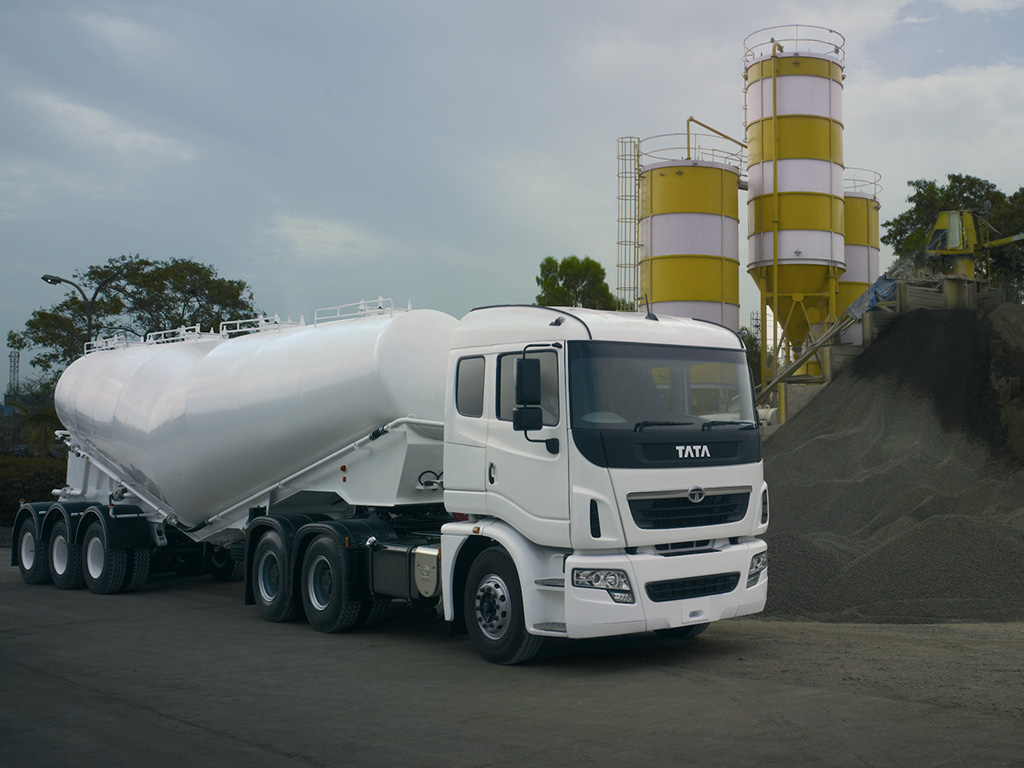

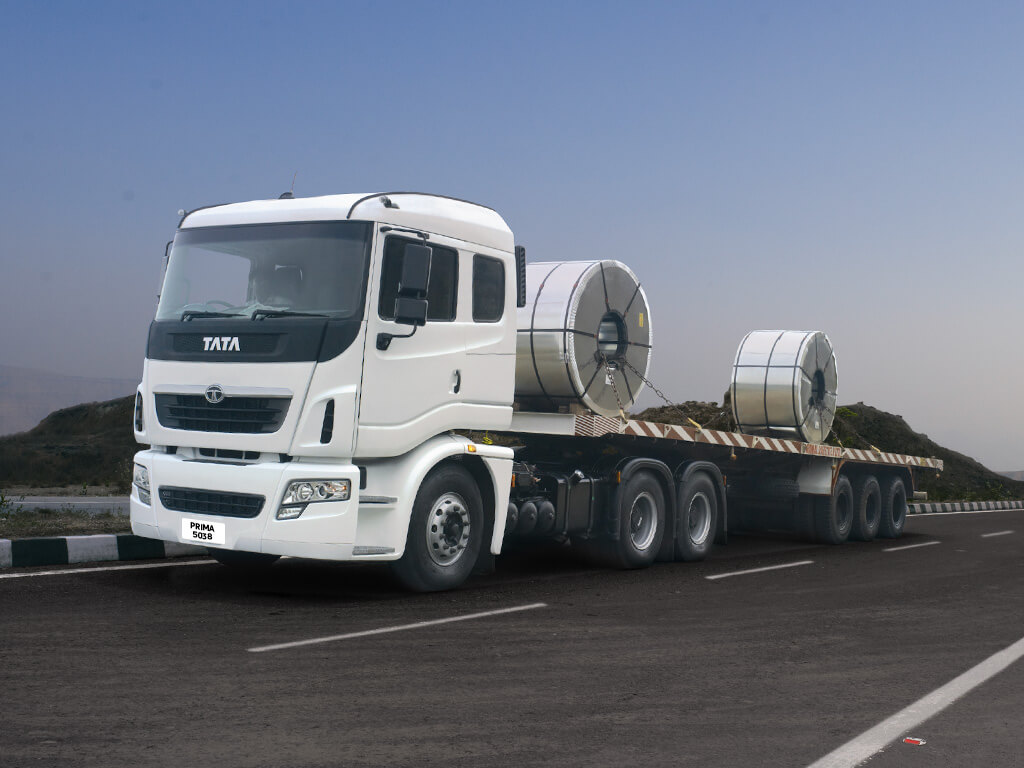

PRIMA 5038.S
The Tata Motors Prima 5038.S comes equipped with the formidable Cummins ISLe diesel engine. It delivers a maximum power output of 370 BHP at 2100 rpm and a maximum torque of 1550 Nm. This tractor is built to tackle heavy-duty tasks with remarkable power and efficiency.
A Eaton 8F + 1 C + 1 R gearbox ensures a seamless and responsive driving experience. The Prima 5038.S features a full-air dual-circuit S-cam braking system with ABS for reliable and precise stopping power. At the front, the suspension system features a compensating linkage parabolic spring, providing excellent ride comfort and stability. At the rear, the truck is equipped with a two-spring balance beam bogie with semi-elliptic multi-rubber-mounted torque rods and a V-Rod, enhancing load-carrying capacity and minimizing vibrations during heavy tipper operations.
- CUMMINS ISLe Diesel Engine
- 370 HP Maximum Power
- Eaton 8F + 1 C + 1 R Gearbox
- Full Air S-Cam Brake System With ABS
Whether you're involved in plowing, tilling, hauling, or other heavy-duty tasks, with a maximum gradeability of 16%, the Prima 5048.S is the perfect companion for your business.
Features designed for performance and profits
01PRIMA 5038.S specifications
Engine
CUMMINS ISLeCUMMINS ISLe
Body Type
PRIMA 5038.S 6X4,EATON GB,SRT 110 4.55
Engine Capacity
8898
Engine Power
370 HP @ 2100 rpm
Max Speed
120
Torque
1550 Nm at 1200-1400 rpm
Gradeability
16%
Gear Box
Eaton, 8F + 1C + 1R
Clutch
430
Steering System
Hydraulic Power Steering
Brakes
All Air Dual circuit - S Cam with ABS
Suspension - Front
Parabolic leaf spring at front
Suspension - Rear
TML Bogie Suspension with semi elliptic multi leaf spring & rubber Mounted torque rods and V-rod at Rear
Tyre Size
11R22.511R22.5
Length
7350
Width
2545
Height
3268
Wheelbase
4275
Ground Clearance
250
Turning Circle Radius
7060
GVW
50500 kg
Kerb Weight
9400 kg
Fuel Tank Capacity
300
