Move ahead with the power to do more
-
1550 kg
Payload
-
250 Nm
Torque
-
Semi Elliptical Leaf Spring
Suspension
-
27%
Gradeability

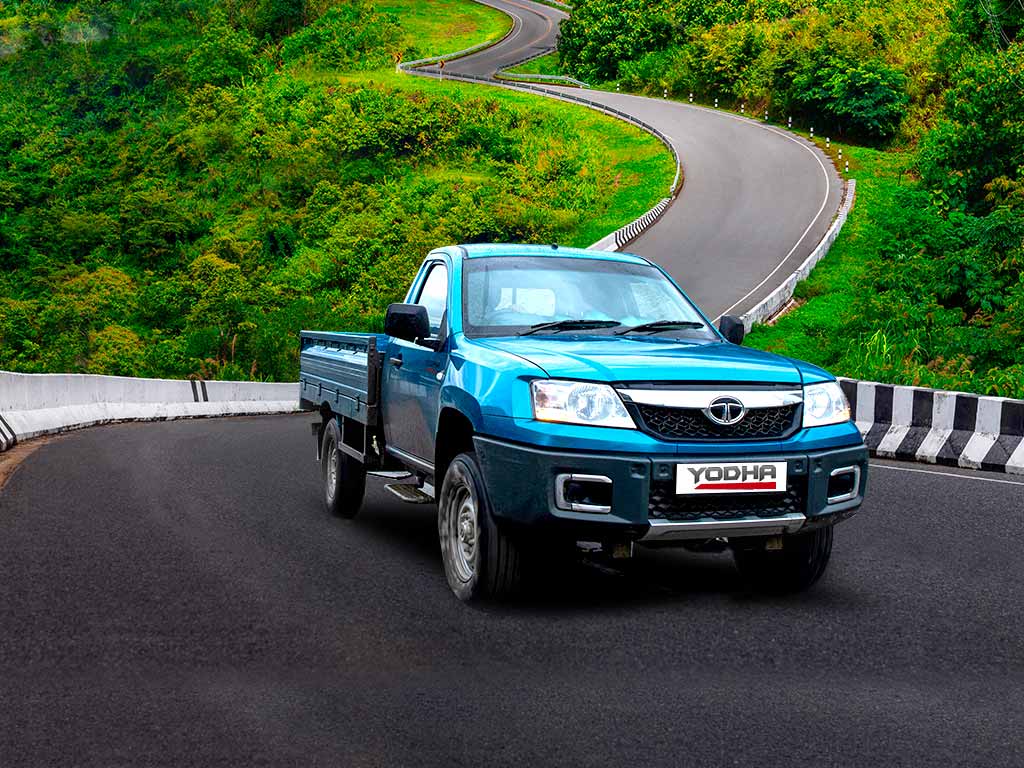

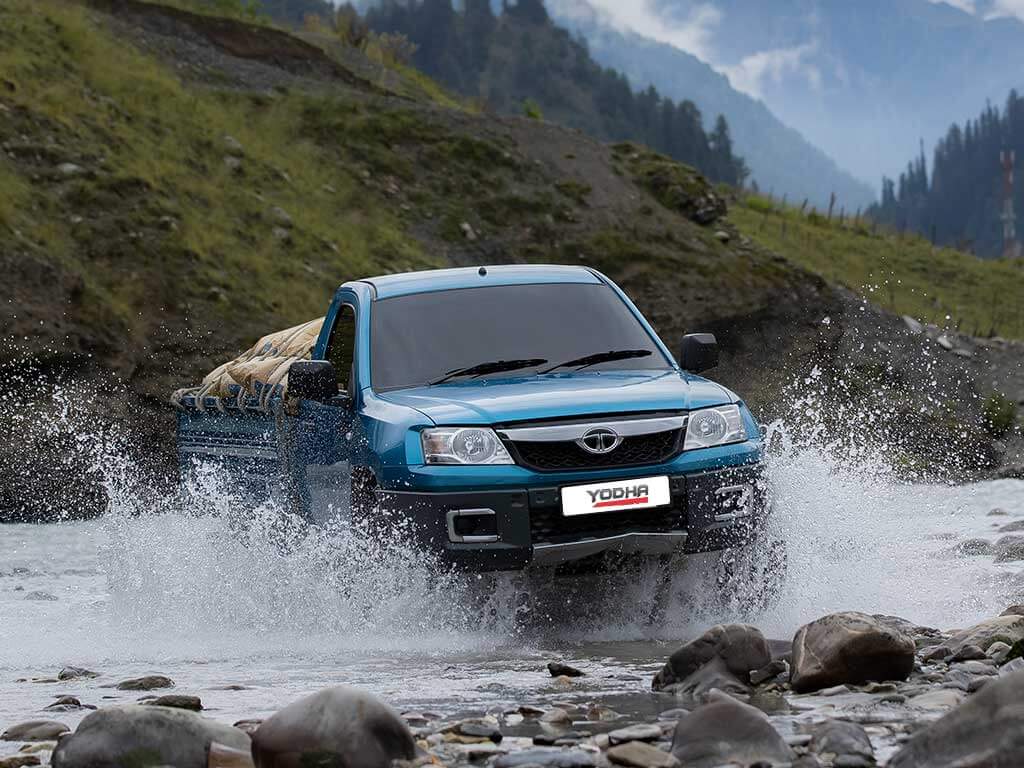

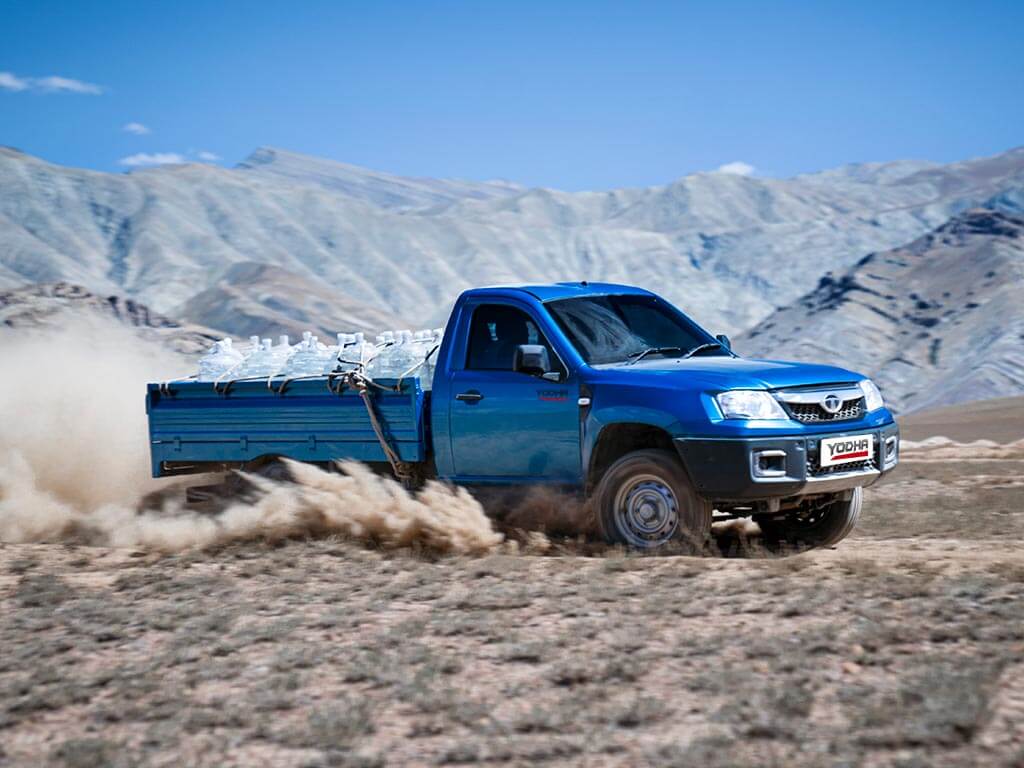

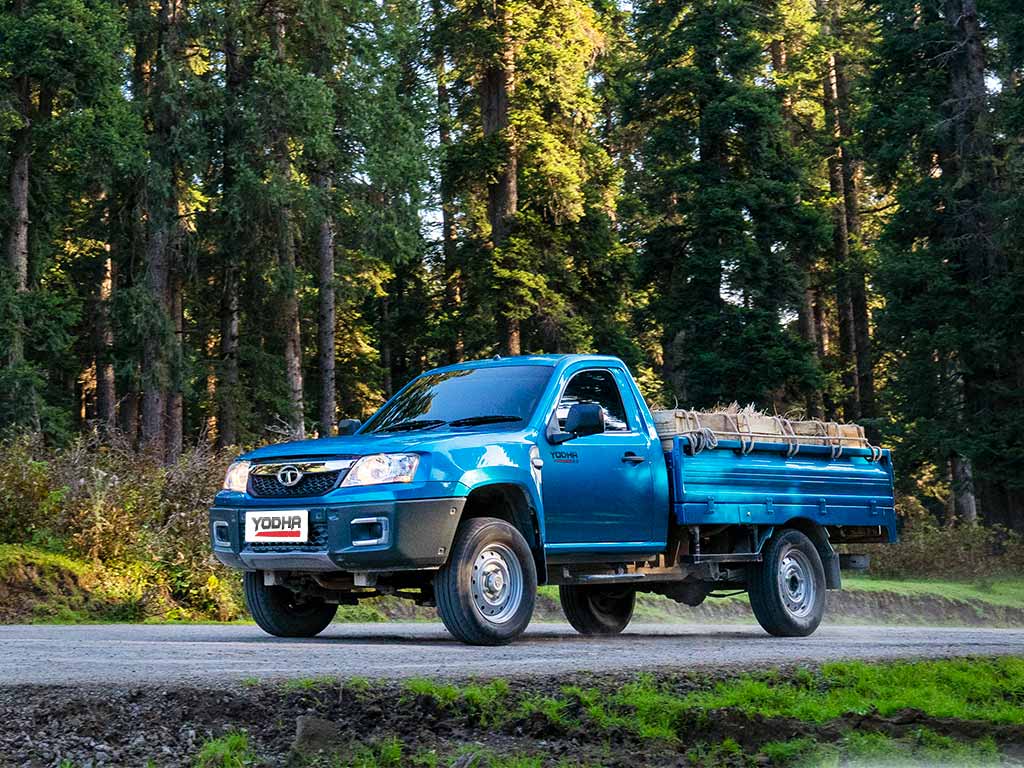

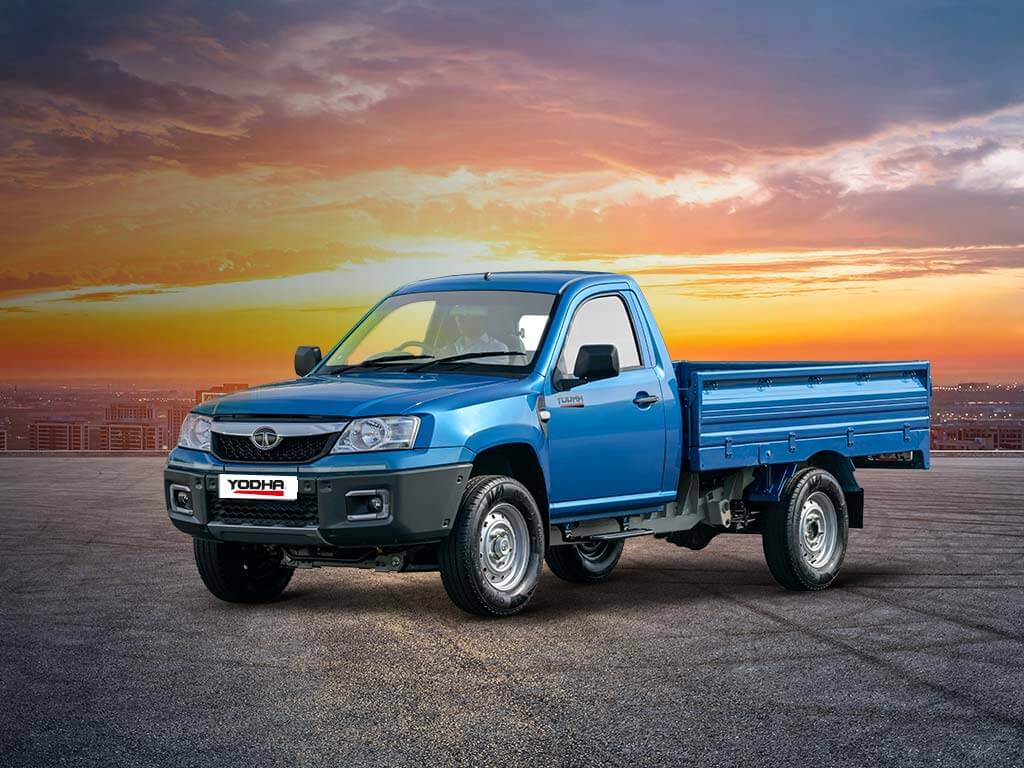

YODHA 31 SC
Engineered for peak performance and reliability, the Tata Yodha is a robust pickup truck equipped with the powerful Tata 4SPCR10 diesel engine. With a maximum power output of 85Hp at 3000 rpm and a maximum torque of 250 nm, it delivers the raw power you need to tackle any task with ease.
This pickup truck is equipped with vacuum-assisted independent hydraulic brakes on both the front and rear, operated through a tandem master cylinder. The suspension system of the Tata Yodha features a semielliptical design that offers excellent stability and a smooth ride, even when traversing uneven terrain.
- Robust Tata 4SPCR10 Engine
- 85Hp Maximum Power
- 250 Nm Maximum Torque
- 27% Maximum Gradeability
With a massive carrying capacity of 1550 Kg, this pickup truck is designed to handle heavy loads effortlessly. Whether you're transporting equipment, materials, or goods, you can rely on the Tata pickup truck to get the job done efficiently and effectively. It's the ideal companion for businesses and individuals alike, offering unmatched versatility and capability.
Features designed for performance and profits
01YODHA 31 SC specifications
Engine
TATA 4SPCR10
Engine Capacity
2956 cc
Max Engine Output
64 KW at 3000 rpm
No of Cylinders
4 Inline
Torque
250 Nm at 1000-2000 rpm
Gradeability
27%
Grade Restartability
20%
Clutch
Single Plate Dry Friction Diaphragm conventional
Clutch Lining Outside Diameter
260 mm
Steering System
380 mm dia. 3 Spoke Steering Wheel.
Brakes
Vacuum assisted independent Hydraulic Brakes on Front and Rear through Tandem Master Cylinder
Brake - Front
296 dia. disc brake with Twin pot caliper.
Brake - Rear
295 dia drum brake with LCRV,
Brake Drum Diameter
295 mm
Suspension - Front
Semielliptical type
Suspension - Rear
Semielliptical type
Tyre Size
215/75 R 16 LT 113/111 S
No of Wheels
Front - 2, Rear - 2, Spare - 1
Axle - Front
Straight Dead Tubular, Ball joint Type knuckle. With Twin pot caliper
Axle - Rear
Single reduction, Salisbury type Rear Axle, Hypoid gears, Semi floating Axle Shafts (with flange type propeller joint) with Over slung suspension
Frame
Rectangular tube, ladder type frame
Frame Depth
115 mm
Frame Width
60 mm
Wheelbase
3150 mm
Ground Clearance
210 mm
Overall Length
5350 mm
Overall Width
1860 mm
Max Width LB
1843 mm
Overall Height (Unladen)
1810 mm
Overall Height (Laden)
1777 mm
Over Hang - Front
870 mm
Over Hang - Rear
1330 mm
Turning Circle Diameter
12.5 m
Turning Clearance Circle Diameter
13.5 m
Track Front
1550 mm
Track Rear
1460 mm
GVW
3350 (FAW-1250, RAW-2100)
Kerb Weight
1850 (FAW –1050, RAW- 800)
Max Permissible FAW
1250 kg
Payload
1550 kg
Fuel Tank Capacity
45 Liters
Battery
12V,80 AH
Vehicle Drive
RHD
