Move ahead with the power to do more
-
22%
Maximum Gradeability
-
BSIII
Emission Standard Compliant
-
685 Nm
Maximum Torque
-
Cummins B5.9
Engine

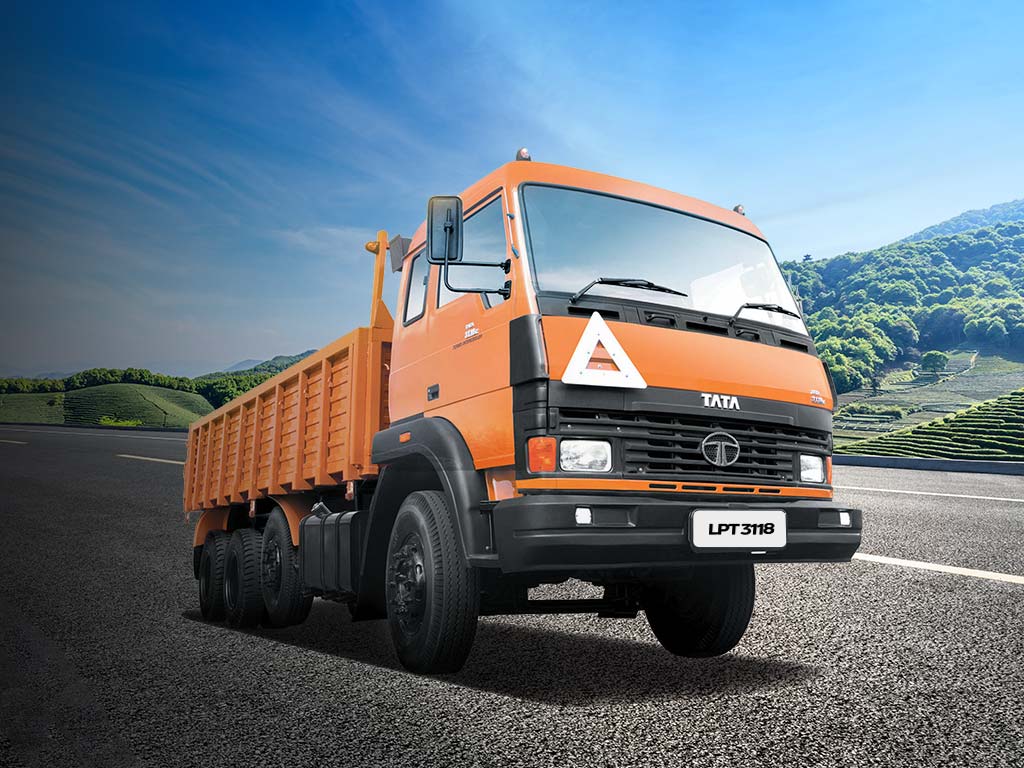

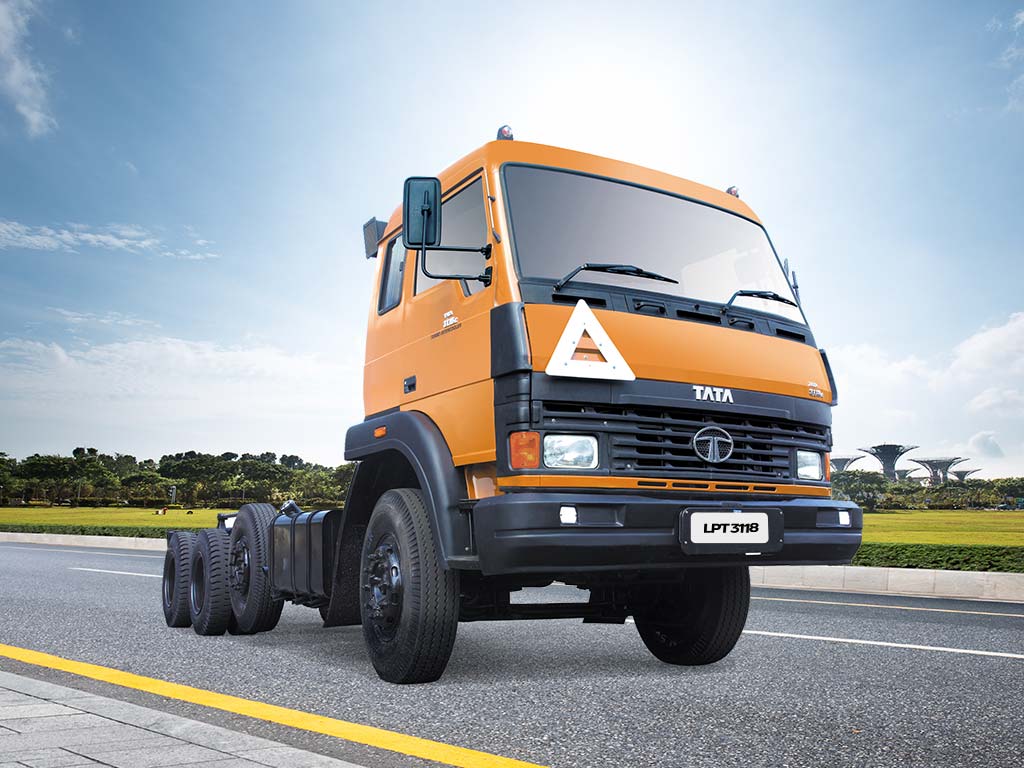

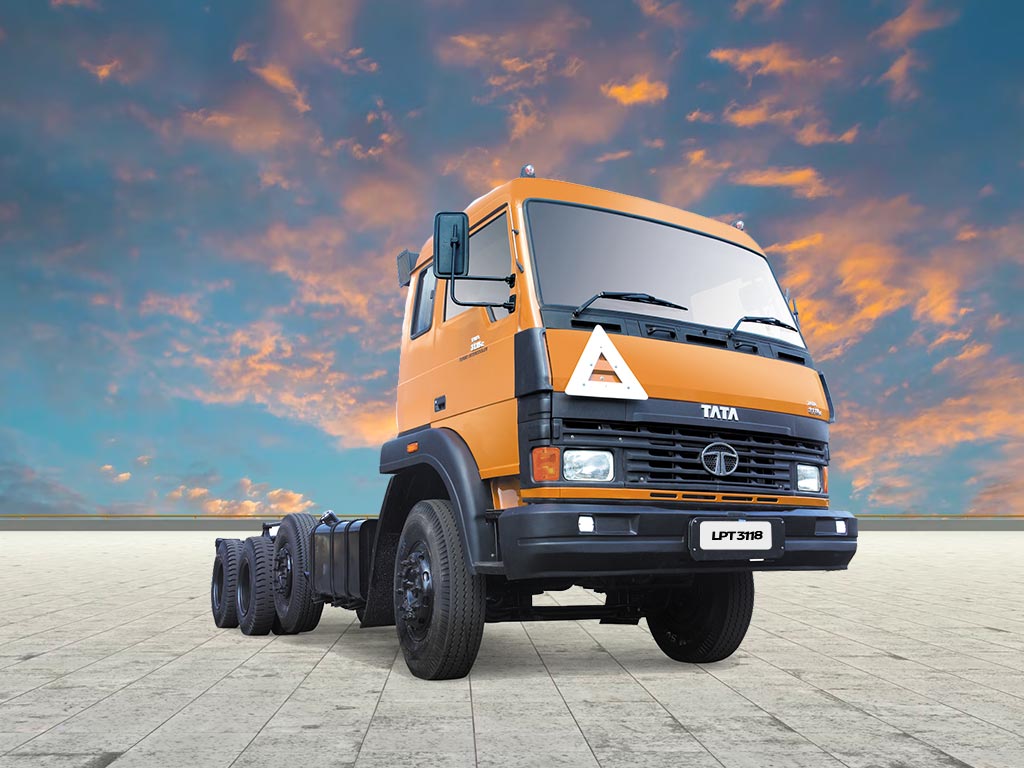

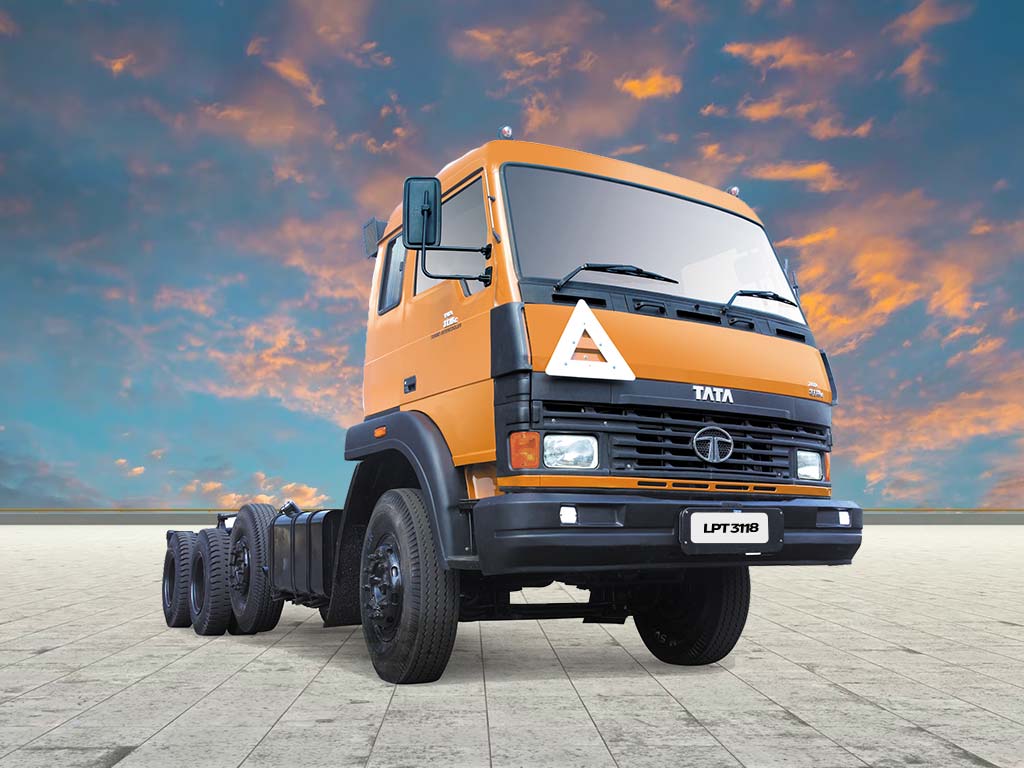

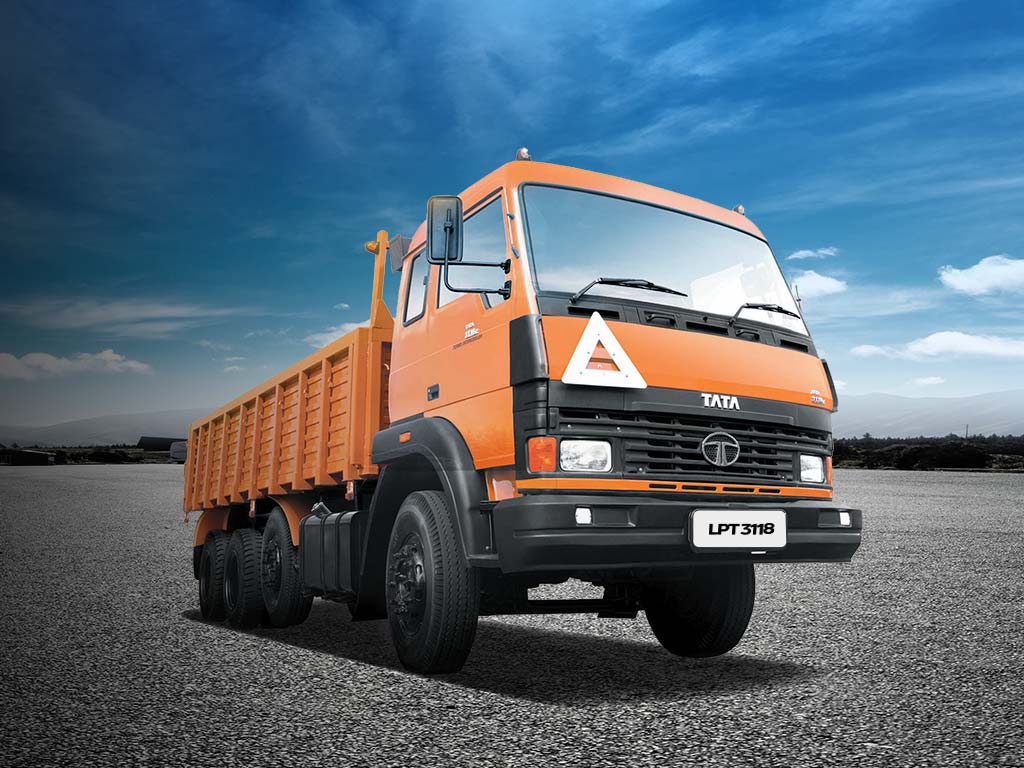

LPT 3118/52
The Tata Motors LPT 3118 is a powerhouse designed to meet the toughest transportation challenges with exceptional performance and reliability. Powered by a proven Cummins B5.9 water-cooled direct injection turbocharged intercooled diesel engine, this truck is built to deliver outstanding power and efficiency. With its maximum power output of 180 HP at 2500 rpm and a torque of 685 nm, it effortlessly handles any loads or terrains you throw at it.
The Tata GB750 6F + 1R gearbox ensures optimal performance, allowing for smooth operation and efficient transportation of goods. The braking system is a full air S-cam brake system with automatic slack adjuster that provides reliable and responsive stopping power ensuring safety. A parabolic spring in the front, a semi-elliptical leaf spring at the rear, and a pneumatic suspension at the lift axle provides excellent stability, enhanced load-bearing capacity, and superior shock absorption, ensuring a smooth and controlled ride.
- Water-Cooled Direct Injection Turbocharged Intercooled Diesel Engine
- 180 HP Maximum Power
- Tata GB750 6F + 1R Gearbox
- Full Air S-Cam Brake System with Automatic Adjuster
Trust the Tata Motors LPT 3118 for reliability, power, and performance. Add it to your fleet and witness your business reaching new heights.
Features designed for performance and profits
01LPT 3118/52 specifications
Engine
CUMMINS B5.9
Engine Type
Water cooled direct injection Turbo charged intercooled Diesel Engine with viscous fan
Body Type
LPT 3118 SLTCAB NA 52WB 109RR 10R20 ABS
Engine Capacity
5883
Engine Power
180 HP @ 2500 RPM
Max Speed
80
Emission
BS III
Torque
685 Nm at 1400 - 1600 rpm
Gradeability
22%
Gear Box
GB750
Clutch
380
Steering System
Power Steering, 470 mm diameter
Brakes
Dual circuit full air S-cam brake
Suspension
Parabolic Spring in front , Semi elliptical leaf spring at rear and Pneumatic suspension at Lift axle
Suspension - Front
Parabolic Spring in front
Suspension - Rear
Semi elliptical leaf spring at rear and Pneumatic suspension at Lift axle
Tyre Size
10 R 20- 16PR
Axle - Rear
RA-109
Axle Final ratio
6.14
Length
9290
Width
2577
Height
3025 mm
Wheelbase
5205 mm
Ground Clearance
248 mm
Turning Circle Radius
9950 mm
Turning Circle Diameter
21.5 mm
GVW
31000 kg
Kerb Weight
7750 kg
Max Permissible FAW
12000 kg
Max Permissible RAW
19000 kg
Fuel Tank Capacity
400
Cabin Ventilation
Non-AC
