Move ahead with the power to do more
-
155/R13
Bigger Tyres
-
38 Nm
Torque
-
710 Kg
Payload
-
15%
Gradeability

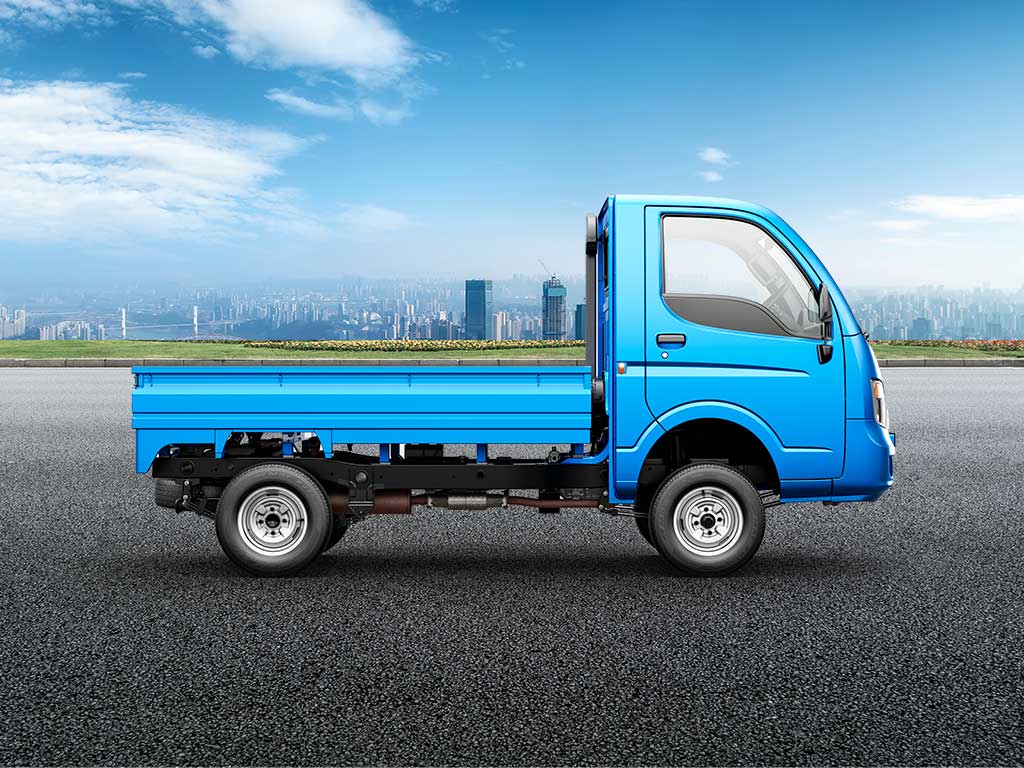

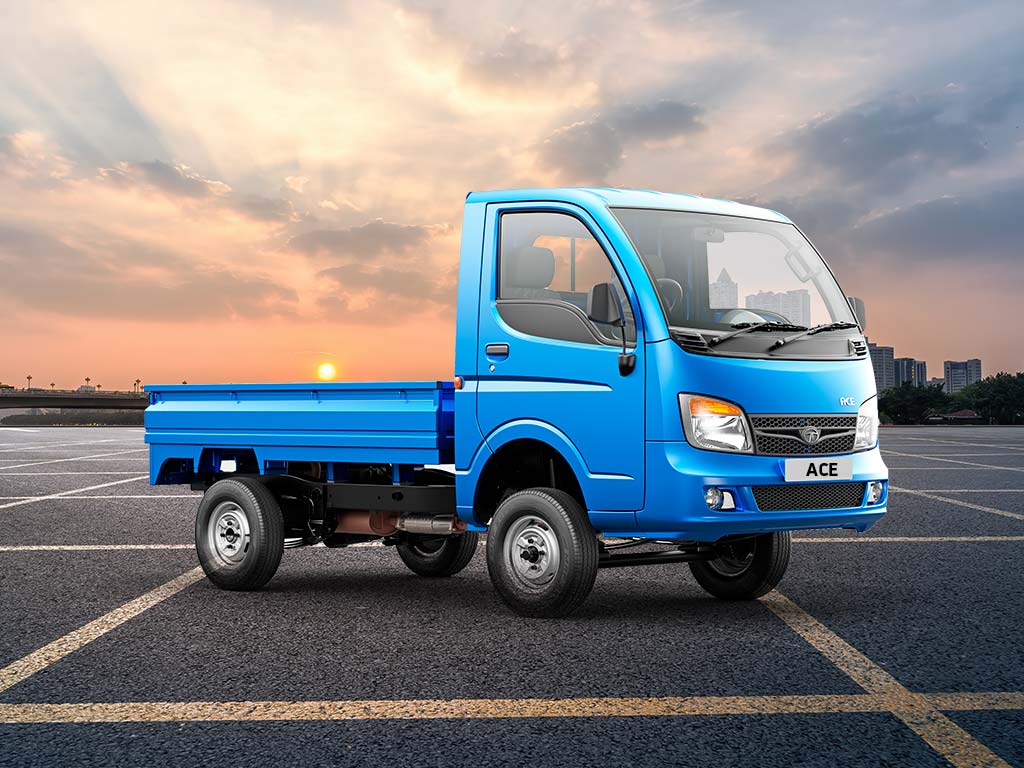

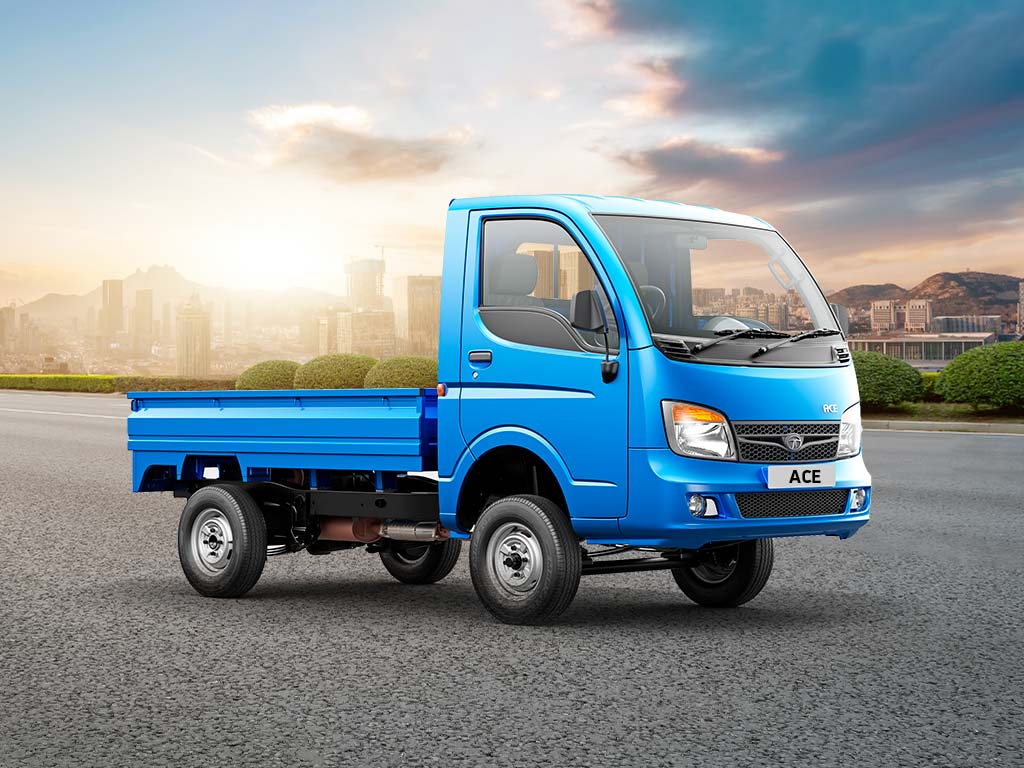

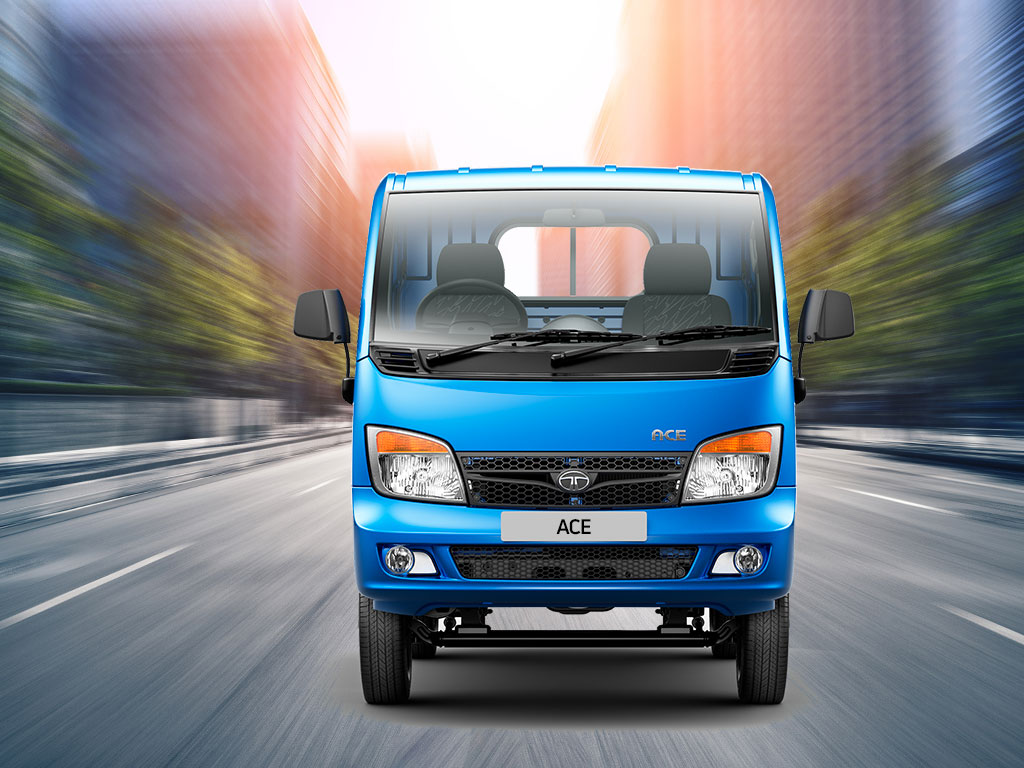

TATA ACE EX2
Presenting the all-new Tata Ace EX 2, built for power and versatility. This rugged and efficient mini truck offers incredible maneuverability in tight spaces. Whether you're looking to start a business or expand it, the Ace EX 2 is here to take your logistics business to the next level.
With its robust construction and reliable performance, the MiniTruck is designed to handle heavy loads effortlessly. Its compact size belies its impressive hauling capacity, making it ideal for transporting goods, equipment, or supplies in urban and suburban areas. From delivering packages to moving furniture, the MiniTruck is your trusted partner on wheels.
- Proven 700 cc Euro-I 2-cylinder IDI NA engine
- 16 HP power
- High fuel efficiency of 20 km/l
- 4-speed gearbox for smooth gear shifting
- Lesser maintenance & improved aggregate life
Choose the Tata Ace EX 2 for reliability, superior safety, versatility and ease of maintenance. Experience maximum fuel efficiency without compromising on performance. Redefine convenience with the Tata Ace EX 2, the ultimate mini truck built to help you excel.
Features designed for performance and profits
01TATA ACE EX2 specifications
Engine
TATA 702cc 2-Cylinder Diesel Engine
Body Type
CLB
Engine Capacity
702cc
Engine Power
11.2 kW (15hp) @ 3200 rpm
Max Speed
70 kmph
Emission
E2
Torque
39 Nm@2000 rpm
Gradeability
15%
Grade Restartability
14%
Gear Box
GBS 65-5/5.27
Clutch
Single plate dry friction diaphragm type
Steering System
Mechanical, variable ratio Ratio 23.1 to 28.9
Brakes
Front - Disc brakes; Rear - Drum brakes 200mm dia x 30mm; PCRV provided for Rear brakes only
Brake - Front
Disc
Brake - Rear
Drum
Suspension - Front
Parabolic leaf spring
Suspension - Rear
Parabolic leaf spring
Tyre Size
155 R13 LT 8PR Radial
Length
3800 mm
Width
1500 mm
Height
1861 (unladen)
Wheelbase
2100
Ground Clearance
175
Overall Height (Unladen)
1861 mm
Turning Circle Radius
4300
Track Front
1310 mm
Track Rear
1330 mm
Length
2140 mm
Width
1430 mm
Height
300 mm
GVW
1550
Kerb Weight
840
Payload
710
Fuel Tank Capacity
30 L
Cargo Box Dimensions
2.14 X 1.43 X 0.3
Seats
D+1
Warranty
