Move ahead with the power to do more
-
18%
Gradeability
-
Loadbody
16 Feet,19 Feet and 22 Feet
-
Tata 497 TCIC
Engine
-
Semi Elliptical Leaf Spring
Suspension System

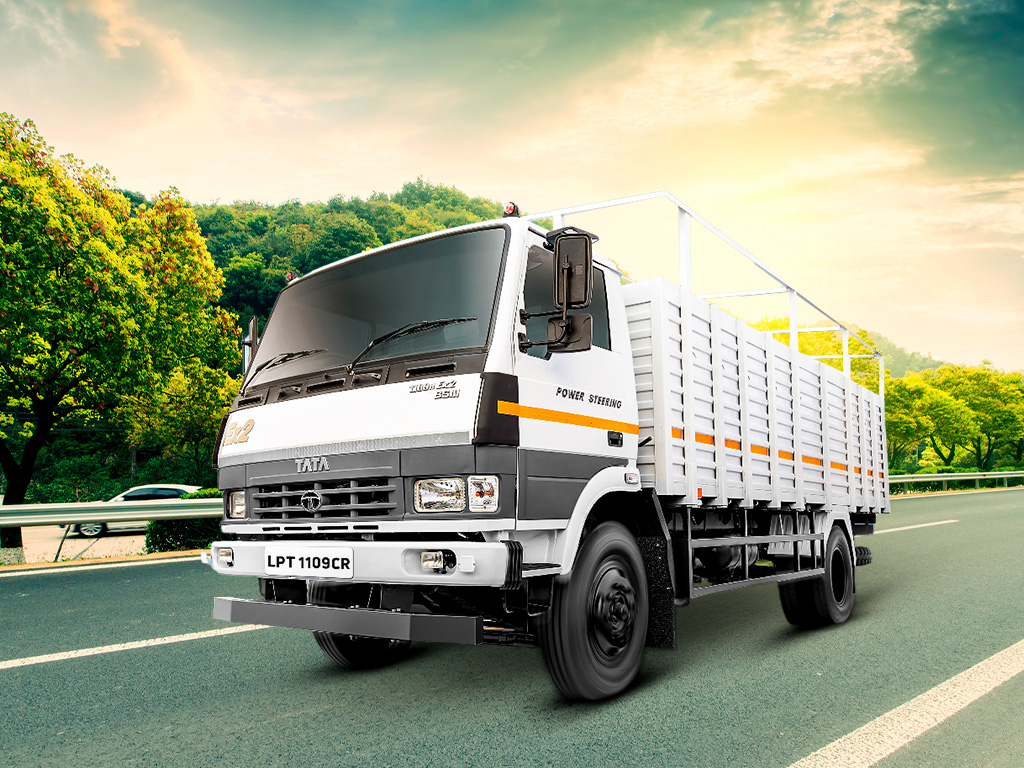

LPT 1109
Get ready to unleash the power of efficiency and reliability. The Tata LPT 1109 is powered by a robust Tata 497 TCIC water-cooled direct injection diesel engine. This truck delivers a maximum power output of 66.2 kW and a maximum torque of 300 Nm while complying with BS2 emission standards.
The GBS-40 synchromesh, 5F + 1R gearbox, and gear shifts provide a seamless and responsive driving experience, enhancing overall productivity. It also comes with a dual-circuit, full-air S-Cam brake system that offers effective braking performance. The front semi-elliptical Leaf Spring suspension, combined with the rear semi-elliptical leaf spring with auxiliary springs, provides enhanced comfort and stability.
- Powerful Water-Cooled Direct Injection Diesel Engine
- 300 Nm Maximum Torque
- Tata GBS-40 Synchromesh, 5F + 1R Gearbox
- Dual Circuit Full Air S-CAM Brake System
Experience the perfect blend of reliability, efficiency, and durability with the LPT 1109, your ideal companion for various business needs, delivering exceptional performance and setting new standards in the industry.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. High capacity reliable engine with proven track record
2. Optimum torque gives better performance and efficiency
3. Easy engagement of gears gives driving comfort and efficient power transmission provides balance between power & efficiency
1. Superior engine life and ease reparability
2. High torque allows to carry more load with ease of driving even at low speeds or at stiff inclines and also improves clutch life
3.Bigger size clutch offers better power transmission and less wear & tear for more life
1. High capacity reliable engine with proven track record
2. Optimum torque gives better performance and efficiency
3. Easy engagement of gears gives driving comfort and efficient power transmission provides balance between power & efficiency

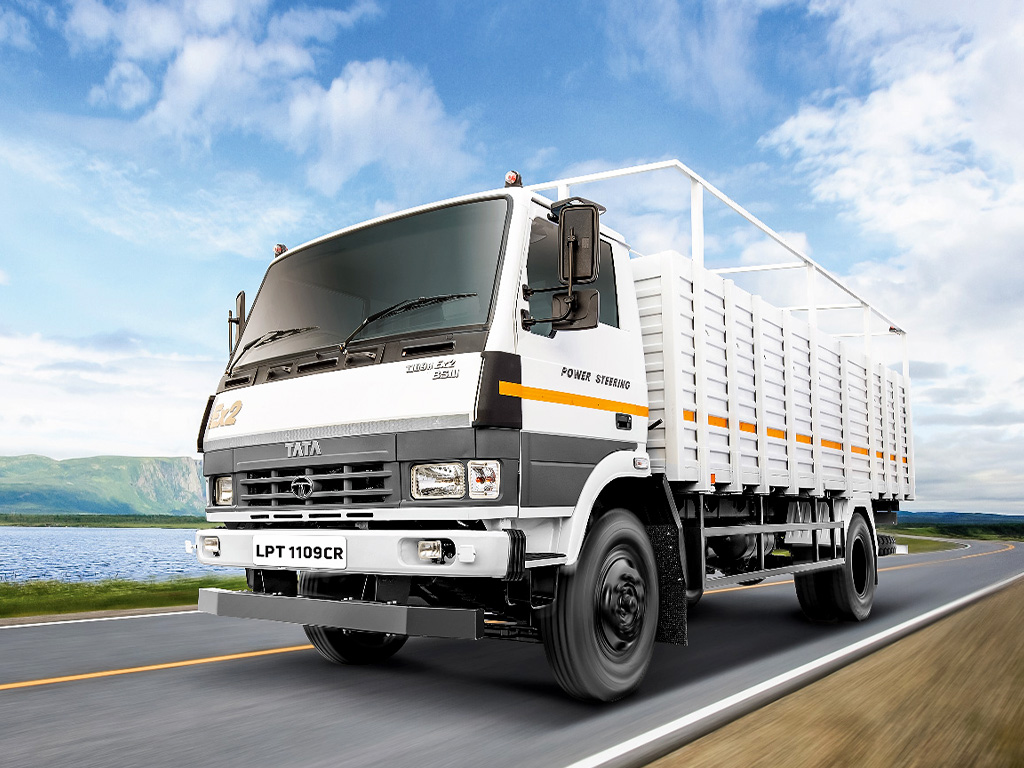

LPT 1109 specifications
Engine Type
TATA 497 TCIC, water cooled direct injection diesel
Engine Capacity
3783 cc
Max Engine Output
66.2 kW (90 Ps) @ 2400 rpm
Max Speed
72 kmph
Emission
BS II
Torque
300 Nm @ 1400 – 2000 rpm
Gradeability
18.0%
Gear Box
GBS-40 synchromesh, 5 forward 1 reverse
Clutch
Single plate dry friction type
Steering System
Power steering
Brakes
Dual circuit full air S-CAM brake
Suspension - Front
Semi elliptical leaf spring
Suspension - Rear
Semi elliptical leaf spring with auxiliary springs
Shock absorber
Hydraulic double acting telescopic type at front only
No of Tyres
6+1
No of Wheels
6+1
Size & Ply rating
8.25 x 20 -14 PR
Frame
Ladder type frame with rivetted / bolted cross members, side members are of channel section, depth: 223 mm (max), flange width: 60 mm, thickness: 7 mm
Wheelbase
3600 mm & 4200 mm
Overall Length
6300 mm & 7575 mm
Max Width LB
2270 mm
Turning Circle Diameter
14.8 mm & 16.6 mm
GVW
11500 kg
