Move ahead with the power to do more
-
Semi Elliptical Leaf Spring
Smooth & Comfortable Ride
-
4920 mm
Optimized wheelbase
-
325 Nm
Maximum Torque
-
497TCIC
Engine

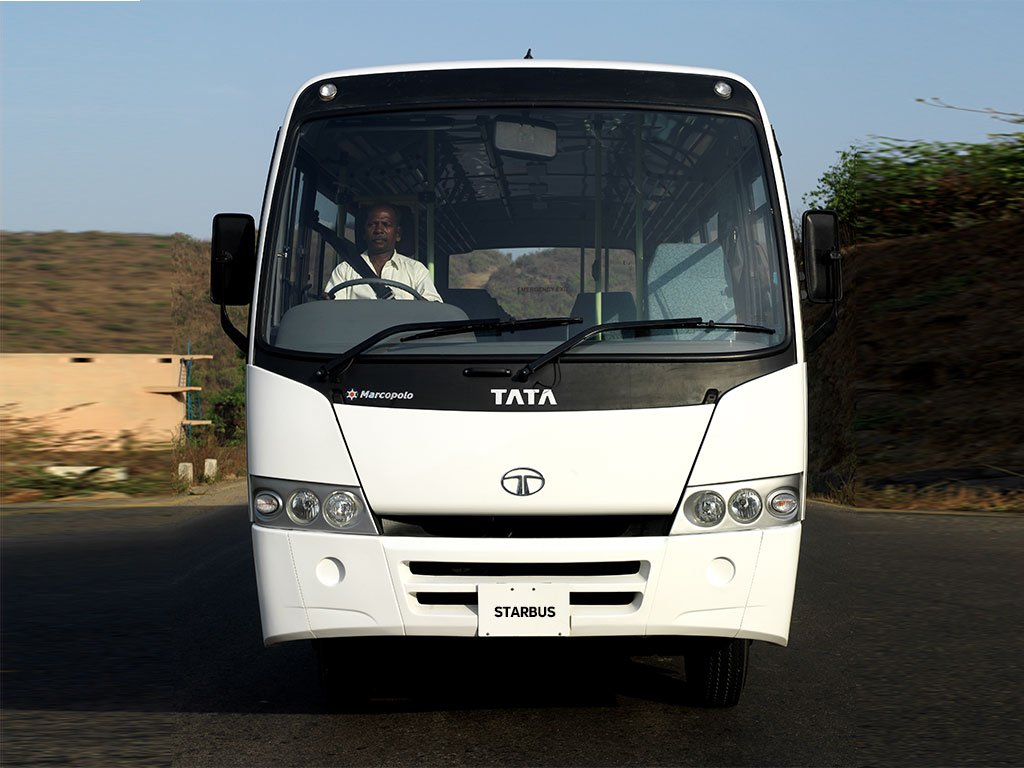

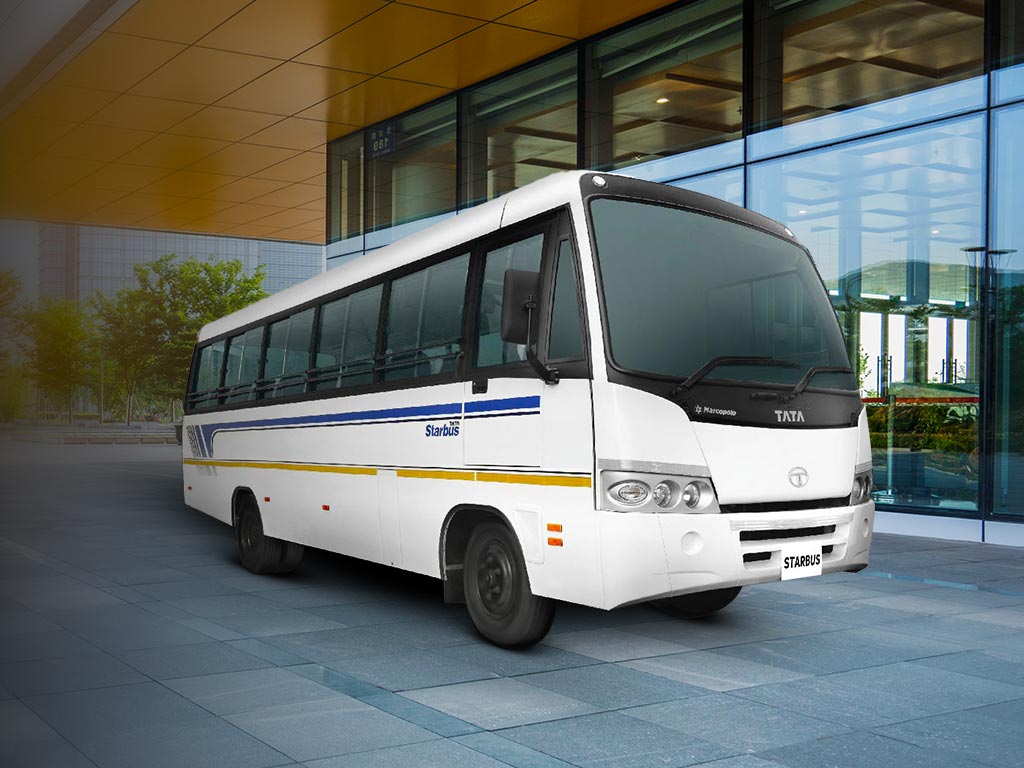

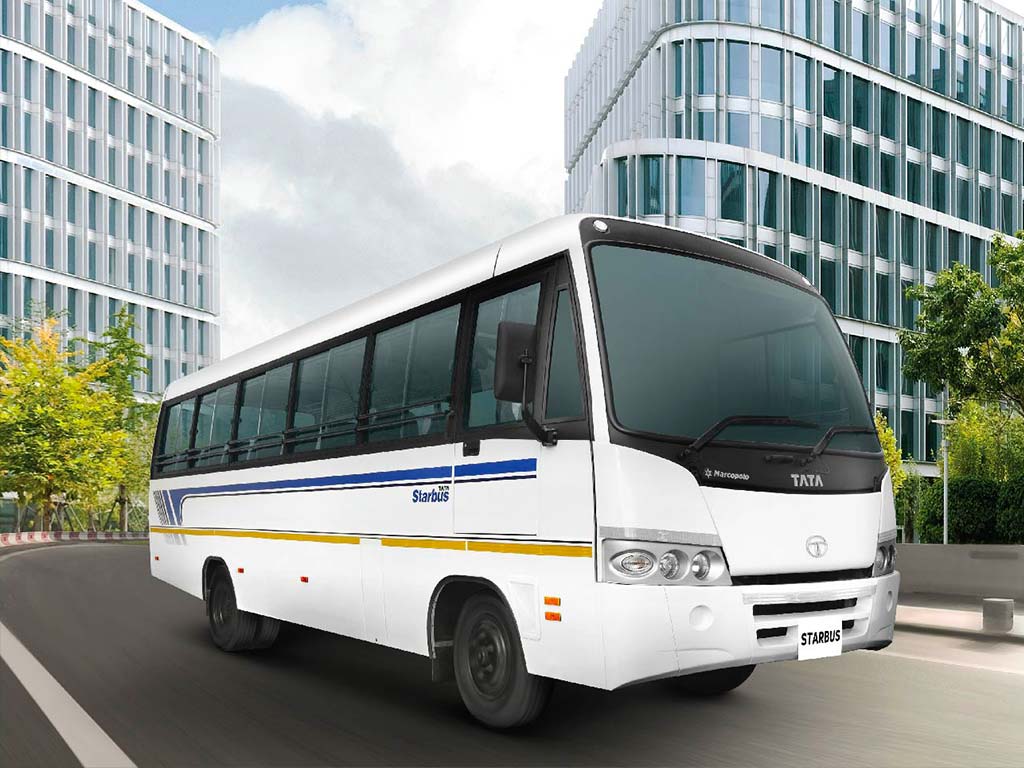

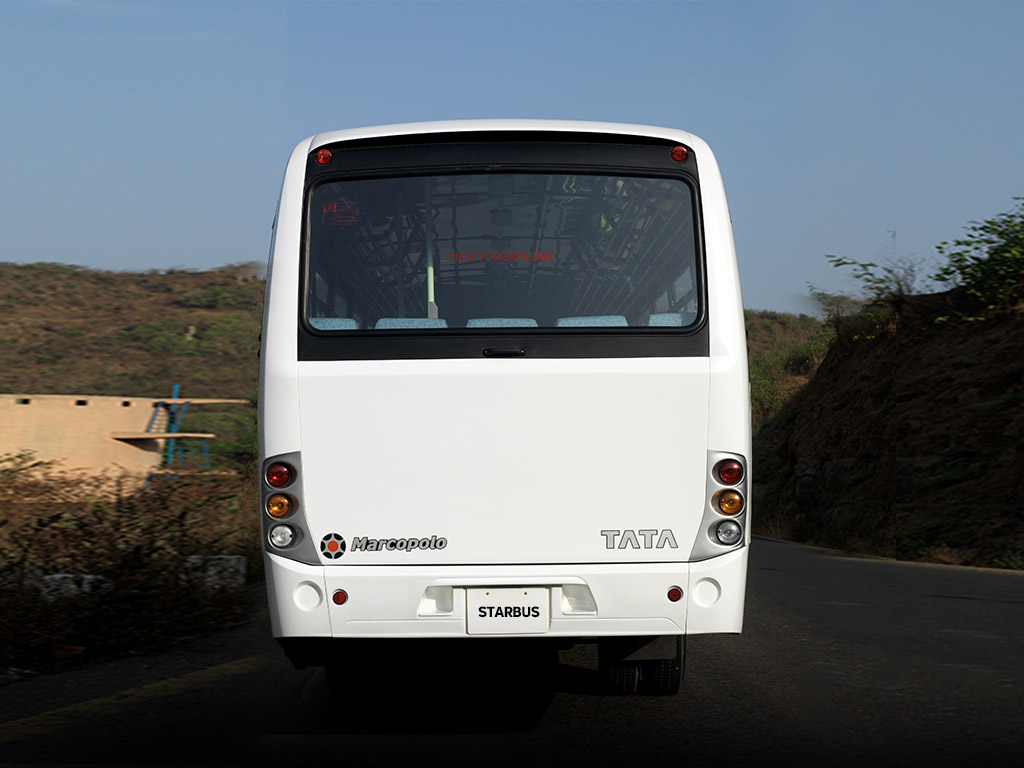

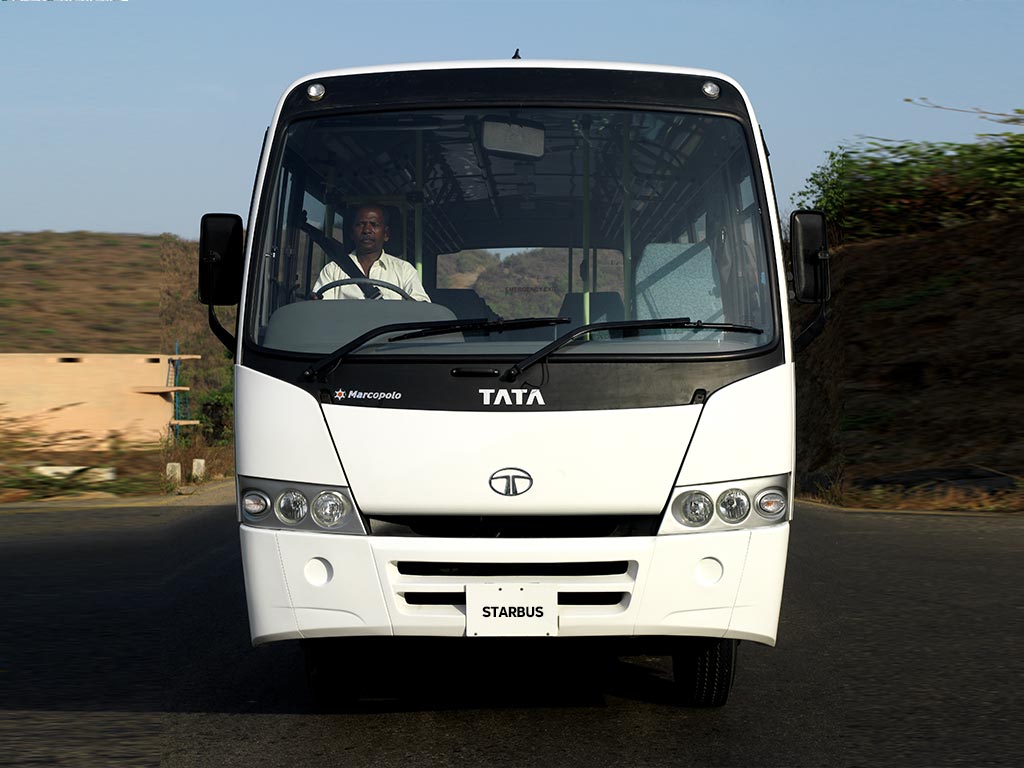

LP 909
Add the Tata Motors LP 909 to your fleet and redefine your transportation experience. Powered by the robust Tata 497TCIC BS-II water-cooled direct injection diesel engine, this bus delivers a maximum power of 90 HP at 2400 rpm and a maximum torque of 325 nm. Its engine achieves more power at lower rpm, which provides better drivability and fuel efficiency, ensuring better engine life.
The 5-speed GBS-27 synchromesh gearbox ensures seamless gear transitions, optimizing performance and occupant comfort. A dual-circuit, full-air S-CAM brake system featuring a 325mm Dia., provides safety. The suspension system consists of semi-elliptical leaf springs at the front and rear, ensuring a smooth and comfortable ride for passengers.
- Water Cooled Direct Injection Diesel Engine
- 90 HP Maximum Power
- Tata 5 Speed GBS-27 synchromesh
- Dual Circuit, Full Air S-CAM Brake System with A 325mm Dia.
Optimized wheelbase of 4920 mm offers ample space for passengers to travel in comfort. Experience the perfect blend of reliability, efficiency, and passenger comfort with the Tata Motors 909.
Features designed for performance and profits
01LP 909 specifications
Engine
TATA 497TCIC BS-II
Engine Type
Water cooled direct injection Diesel
Engine Capacity
3783 cc
Max Engine Output
66.3 Kw @ 2400 rpm
Cylinders / Displacement
4 Cylinder inline / 3783 cc
Max Speed
90 kmph
Torque
325 Nm @ 1300-1600 rpm
Gradeability
22%
Gear Box
GBS-27 synchromesh
Clutch
280 mm Dia Single plate dry friction type, booster assisted
Steering System
Integral hydraulic power assisted steering
Brakes
Dual circuit full air S-Cam brake
Suspension
Semi elliptical leaf spring at front & rear with ARB.
Suspension - Front
Semi Elliptical leaf springs
Suspension - Rear
Semi Elliptical leaf springs
Tyre Size
8.25x16 16PR
Length
9050 mm
Width
2140 mm
Height
2568 mm
Wheelbase
4920 mm
Turning Circle Diameter
17500 mm
GVW
9000 kg
Kerb Weight
2885
Fuel Tank Capacity
160 litres
Battery
2x12 Volts, 150 Ah
Alternator
75AMPS
Seats
40+D
Warranty
1 Years / 64,000 Kms
