Move ahead with the power to do more
-
90 PS
High Power
-
325 NM
High Torque
-
Tata 497 TCIC
Engine
-
26%
High Gradeability

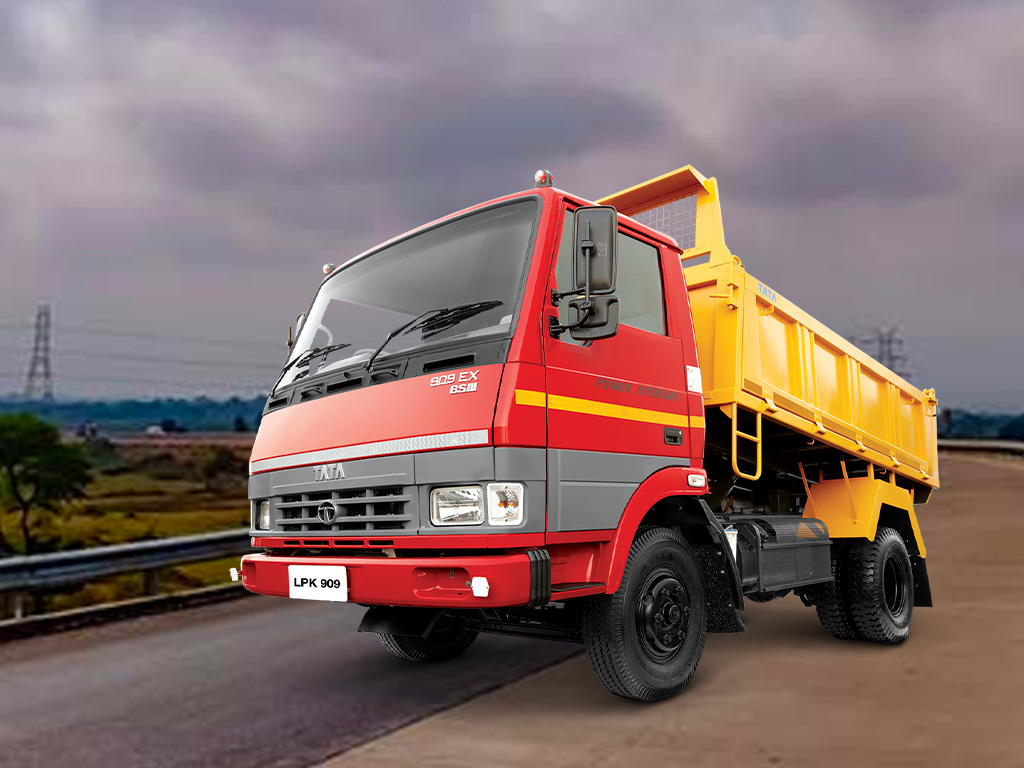

LPK 909
Tata Motors' LPK 909 3.5 Cu.M tipper is a game-changer for businesses looking to enhance their profitability. This robust and efficient tipper truck offers a host of benefits, including superior load-carrying capacity and excellent fuel efficiency, reducing operational costs significantly. Its advanced technology ensures smoother handling and increased driver comfort, minimizing maintenance downtime.
LPK 909 3.5 Cu.M tipper also boasts exceptional manoeuvrability, making it ideal for navigating tight spaces on construction sites. Its robust build and advanced suspension system ensure stability and smooth handling, even when carrying heavy loads, providing unmatched reliability in demanding environments.
- Powerful Tata 497 TCIC Water-Cooled Direct Injection Diesel Engine
- 325 Nm Maximum Torque
- GBS-40 Synchromesh 5F+1R Gear Box
- Dual Circuit full air S-Cam brakes
Moreover, the LPK 909's durability and reliability guarantee a longer lifespan, translating to improved return on investment. In a competitive business landscape, this versatile tipper empowers enterprises to optimize their transportation operations, reduce overheads, and ultimately, bolster their productivity.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. High capacity reliable engine with proven track record
2. Optimum torque gives better performance and efficiency
3. Easy engagement of gears gives driving comfort and efficient power transmission provides balance between power & efficiency
1. Superior engine life and ease reparability
2. High torque allows to carry more load with ease of driving even at low speeds or at stiff inclines and also improves clutch life
3.Bigger size clutch offers better power transmission and less wear & tear for more life
1. High capacity reliable engine with proven track record
2. Optimum torque gives better performance and efficiency
3. Easy engagement of gears gives driving comfort and efficient power transmission provides balance between power & efficiency
LPK 909 specifications
Engine
Tata 497 TCIC
Engine Type
Tata 497 TCIC, water-cooled direct injection diesel engine with intercooler
Engine Capacity
3783 cc
Max Engine Output
90 Ps @ 2400 rpm
Max Speed
85 kmph
Emission
BS II
Torque
325 Nm @ 1300-1600 rpm
Gradeability
26%
Gear Box
GBS-40 Synchromesh 5F+1R
Clutch
310mm Dia, Single plate dry friction
Steering System
Power steering
Brakes
Dual Circuit full air S-Cam brakes
Suspension - Front
Semi-Elliptical Leaf Springs
Suspension - Rear
Semi-Elliptical Leaf Springs
Shock absorber
Hydraulic double acting telescopic type at front and rear
No of Tyres
6+1
Tyre Size
8.25 x 16 - 16PR (Front - Rib, Rear - Lug)
No of Wheels
6+1
Size & Ply rating
8.25 x 16 -16 PR (Front : Rib type; Rear – Lug type)
Axle - Rear
Single reduction, hypoid gears, full floating axle shafts. Axle Ratio : 4.57
Frame
Ladder type heavy duty frame with riveted/bolted cross members Side members are of channel section Depth -200 mm (max) Flange Width -60mm Thickness 5mm
Length
5100 mm
Width
2268 mm
Height
2418 mm
Wheelbase
2775 mm
Overall Length
5000 mm
Max Width LB
2155 mm
Turning Circle Radius
10.2 m
Turning Clearance Circle Diameter
10.2 meters
GVW
9600 kg
Kerb Weight
4075 (light weight Body), 2850 (cab chassis)
Max Permissible FAW
3250
Max Permissible RAW
6350
Fuel Tank Capacity
90 L
Cabin
Day Cab
Cargo Box Dimensions
3.5 Cu.M
Seats
D+2
Warranty
1 Year or 64000 kms, whichever is earlier
