Move ahead with the power to do more
-
27% & 30%
Maximum Gradeability
-
BSIII
Emission Standard Compliant
-
800 Nm
Maximum Torque
-
Cummins 6B5.9
Engine

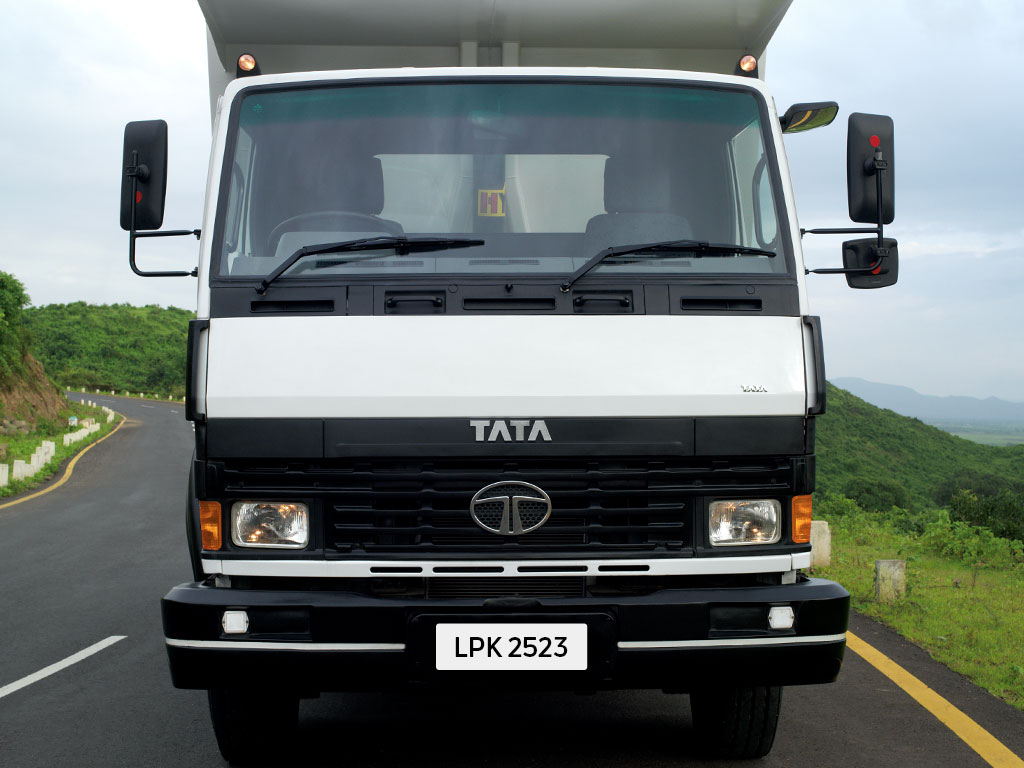

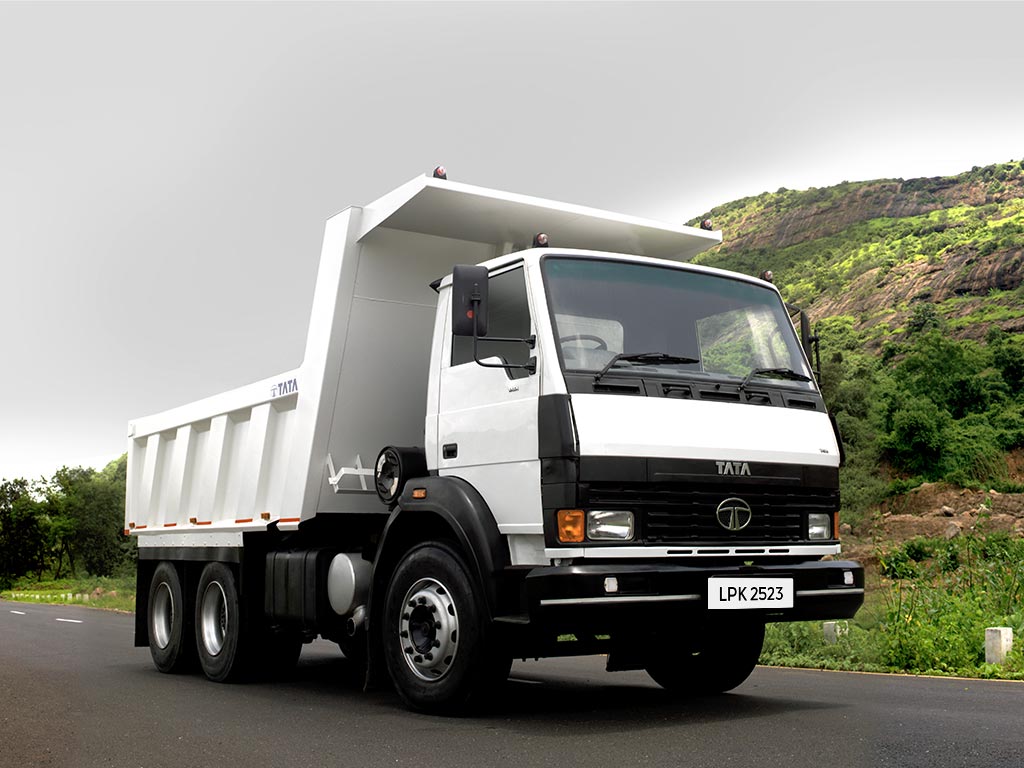

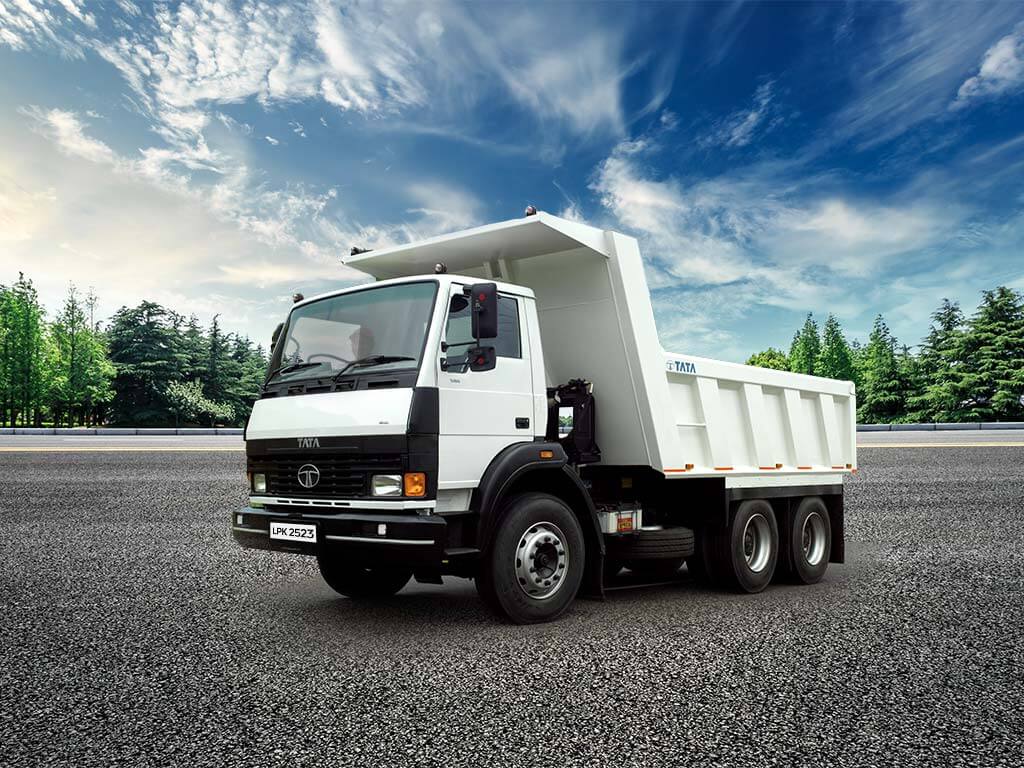

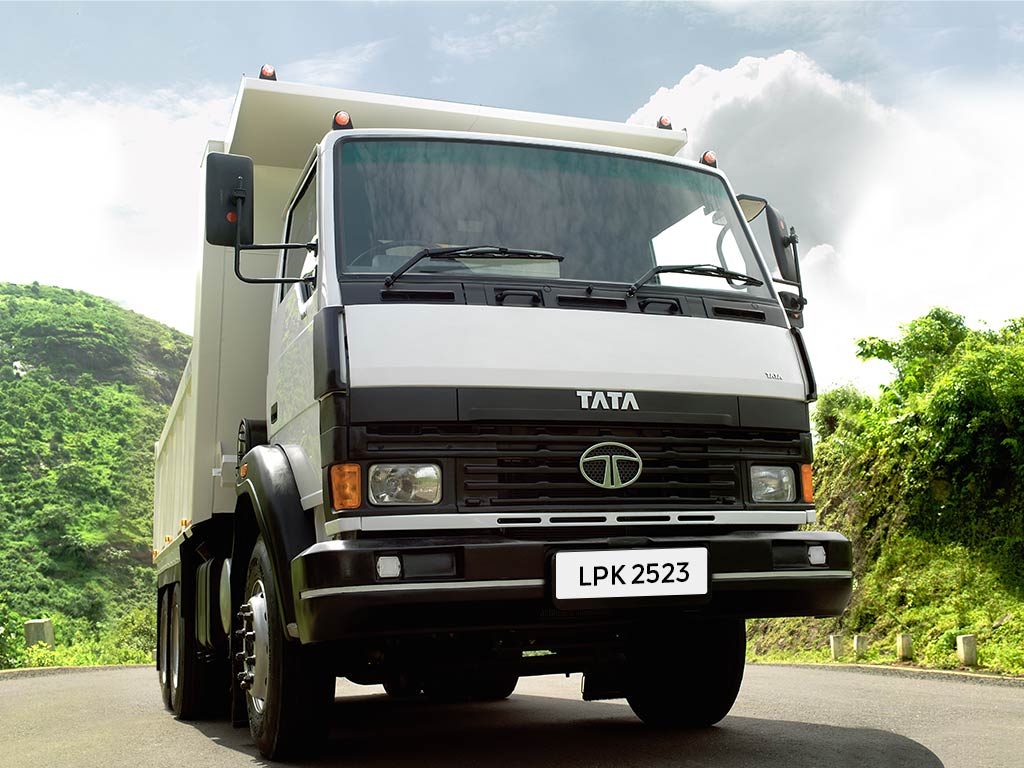

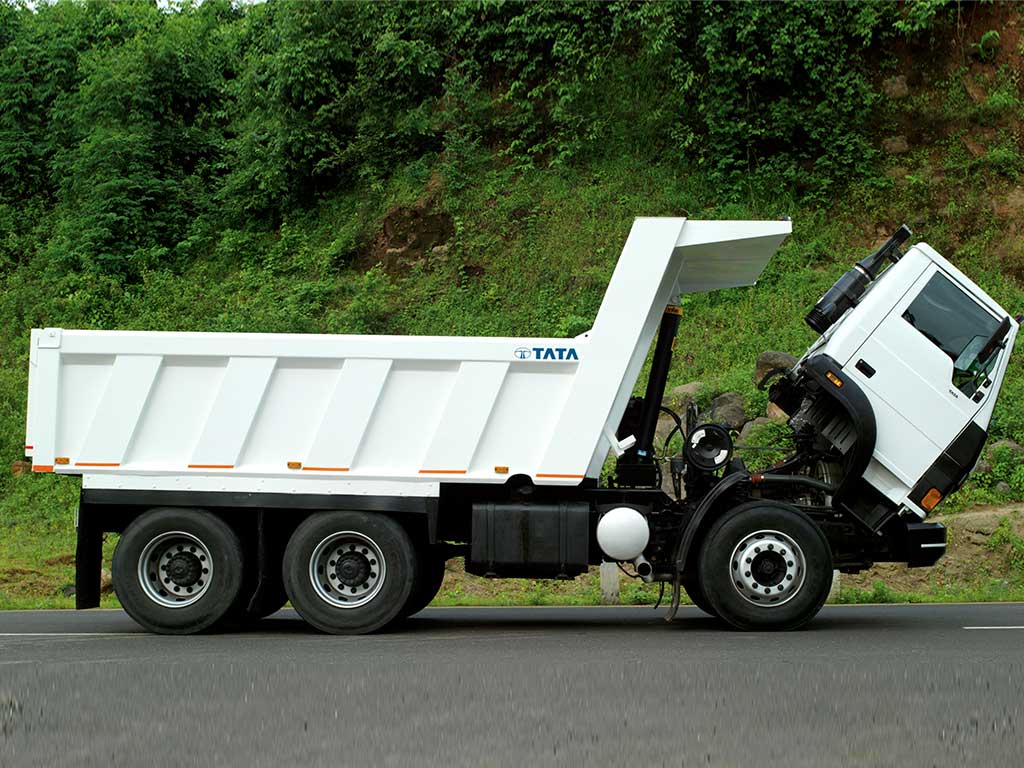

LPK 2523
The Tata Motors LPK 2523 is a true powerhouse designed to handle the most demanding transportation tasks with exceptional performance and reliability. With a robust Cummins 6B5.9 water-cooled direct injection turbocharged intercooled diesel engine at its core this truck delivers outstanding power and efficiency. It delivers a maximum power output of 215 HP at 2500 rpm and a torque of 800 nm.
Its G 1150, 8F+1C+1R gearbox offers smooth and precise gear shifting for optimal control. It is equipped with an advanced full air S-Cam brake system with automatic adjuster. This advanced braking technology ensures safety for the driver and the cargo. The suspension system consists of semi-elliptical leaf springs at the front, providing excellent stability and load-bearing capacity. At the rear, our truck features an inverted TML bogie suspension, delivering enhanced shock absorption and superior handling even on uneven terrains. With a gradeability of 31%, the LPK 2523 effortlessly conquers slopes and inclines, ensuring efficient transportation across various landscapes.
- Water-Cooled Direct Injection Turbocharged Intercooled Diesel Engine
- 215 HP Maximum Power
- Tata G 1150, 8F+1C+1R Gearbox
- Full Air S-Cam Brake System with Automatic Adjuster
Get the formidable Tata Motors LPK 2523 truck and take your business to new heights.
Features designed for performance and profits
01LPK 2523 specifications
Engine
CUMMINS 6B5.9
Engine Type
Water cooled direct injection Turbo charged intercooled Diesel Engine
Body Type
LPK 2523 HD CAB NA SRT 10X20 NT
Engine Capacity
5883
Engine Power
215 HP at 2500 rpm
Emission
BS III
Torque
800 Nm at 1500 rpm
Gradeability
31%
Gear Box
G 1150, 8F+1C+1R
Clutch
380
Steering System
Hydraulic Power Steering
Brakes
Full Air S-Cam with Automatic Adjuster
Suspension
Semi elliptical leaf spring at front and inverted TML bogie suspension at rear
Suspension - Front
Semi elliptical leaf spring
Suspension - Rear
Inverted TML bogie suspension
Tyre Size
10.00 X 20-16PR
Axle - Rear
RA-109SRT with inter-axle differential lock
Axle Final ratio
6.14
Length
6705
Width
2430
Height
3024 mm
Wheelbase
3880 mm
Ground Clearance
235 mm
Turning Circle Radius
8500 mm
GVW
25000 kg
Kerb Weight
7677 kg
Fuel Tank Capacity
365 Liters (std.) / (365+260)=625 liters (Optional)
Cabin Ventilation
NA
Body Option
16 Cum
