Move ahead with the power to do more
-
22%
Maximum Gradeability
-
Euro I
Emission Standard Compliant
-
550 Nm
Maximum Torque
-
Cummins 6BT 5.9
Engine

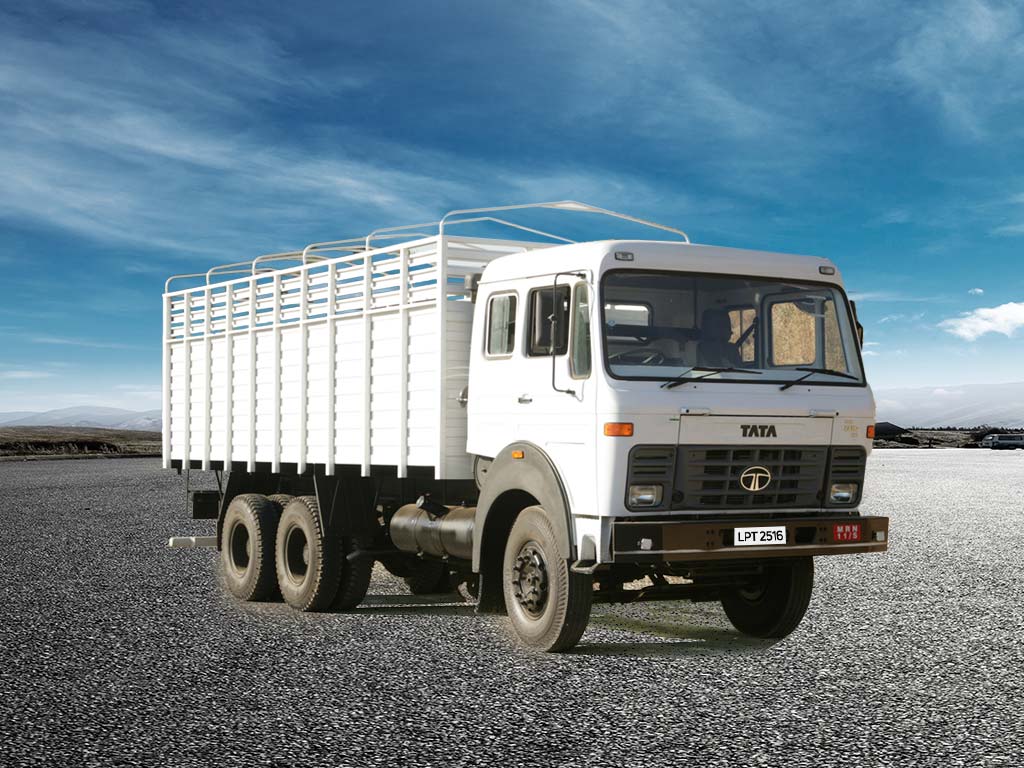

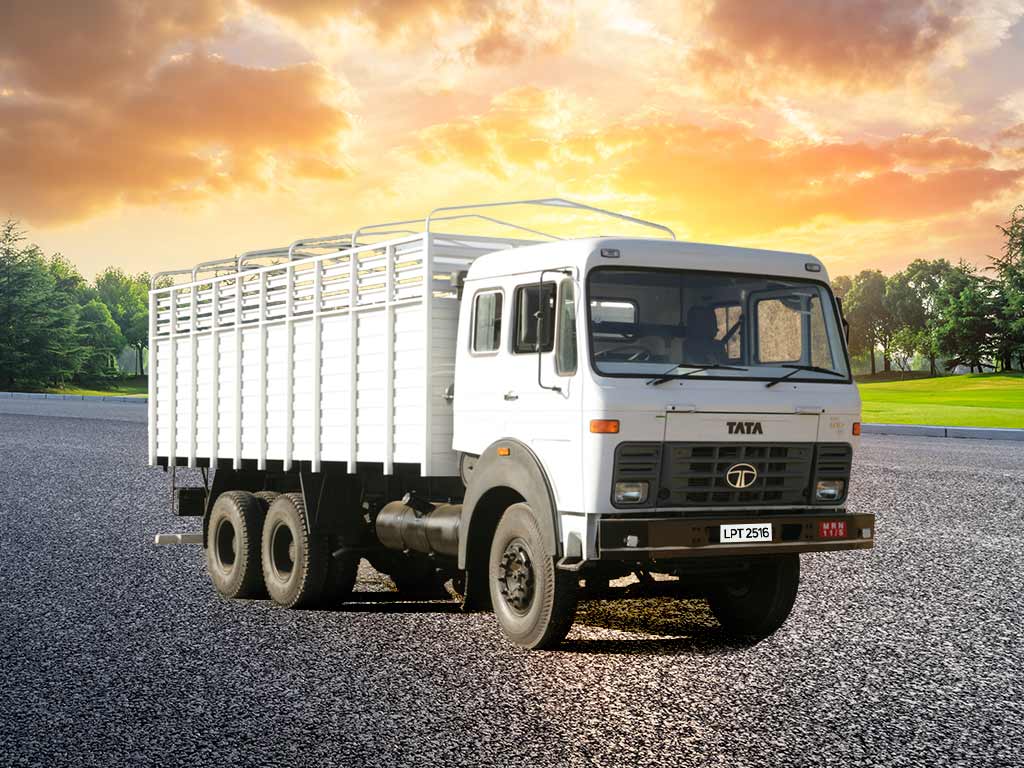

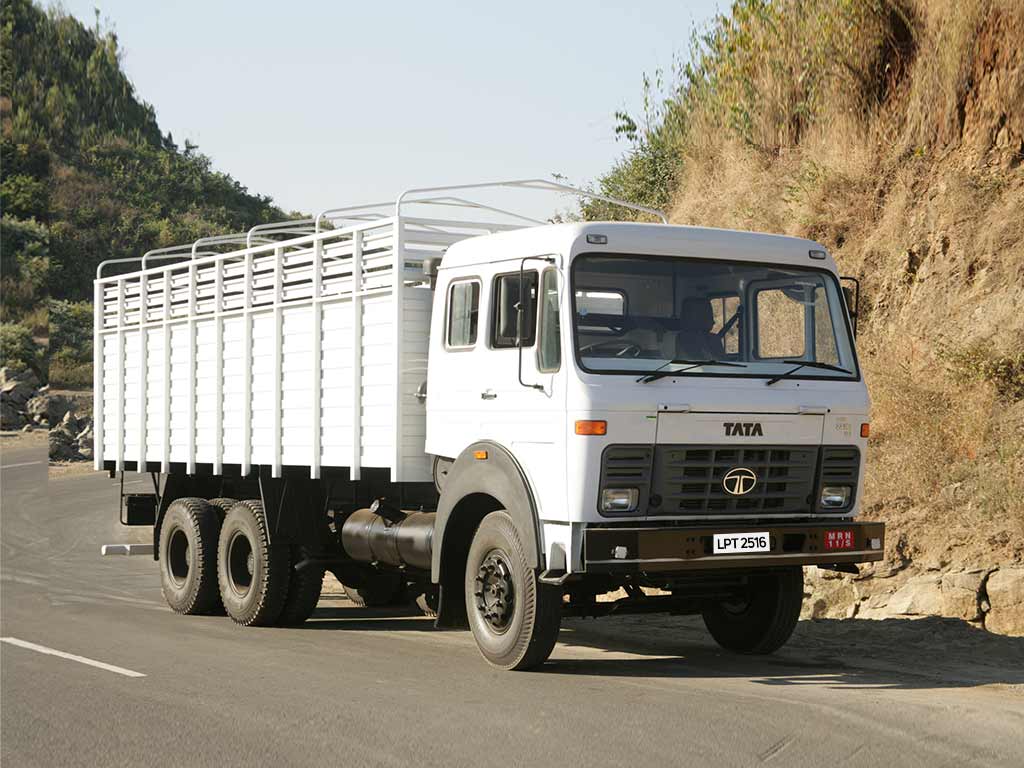

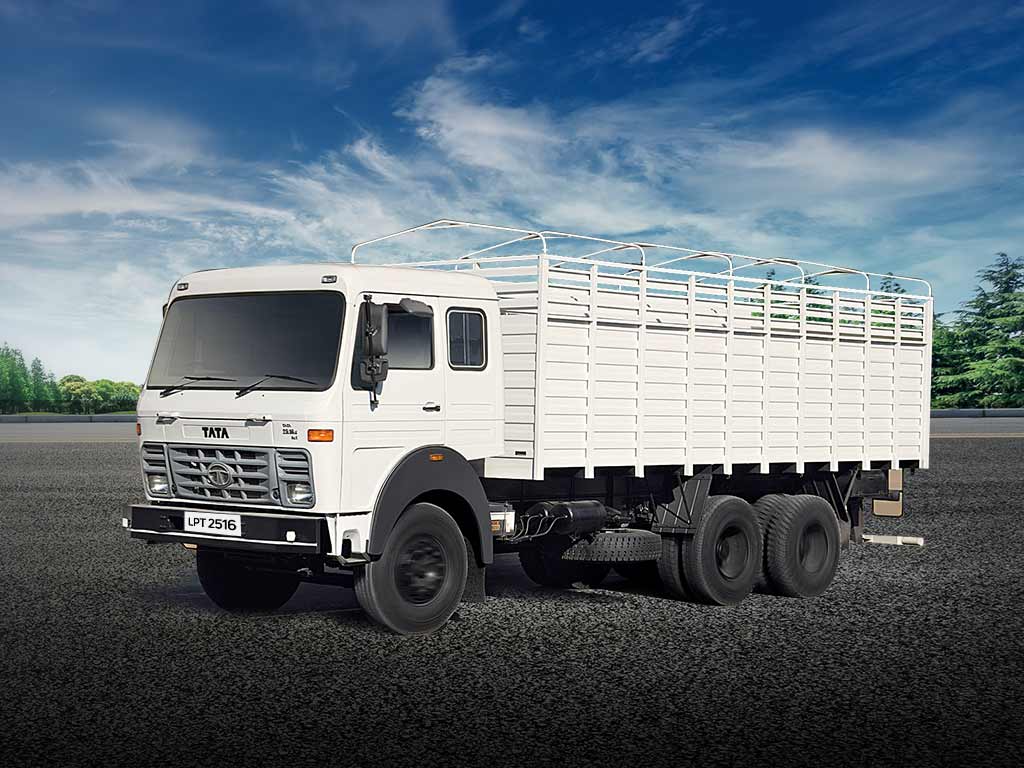

LPT 2516/48

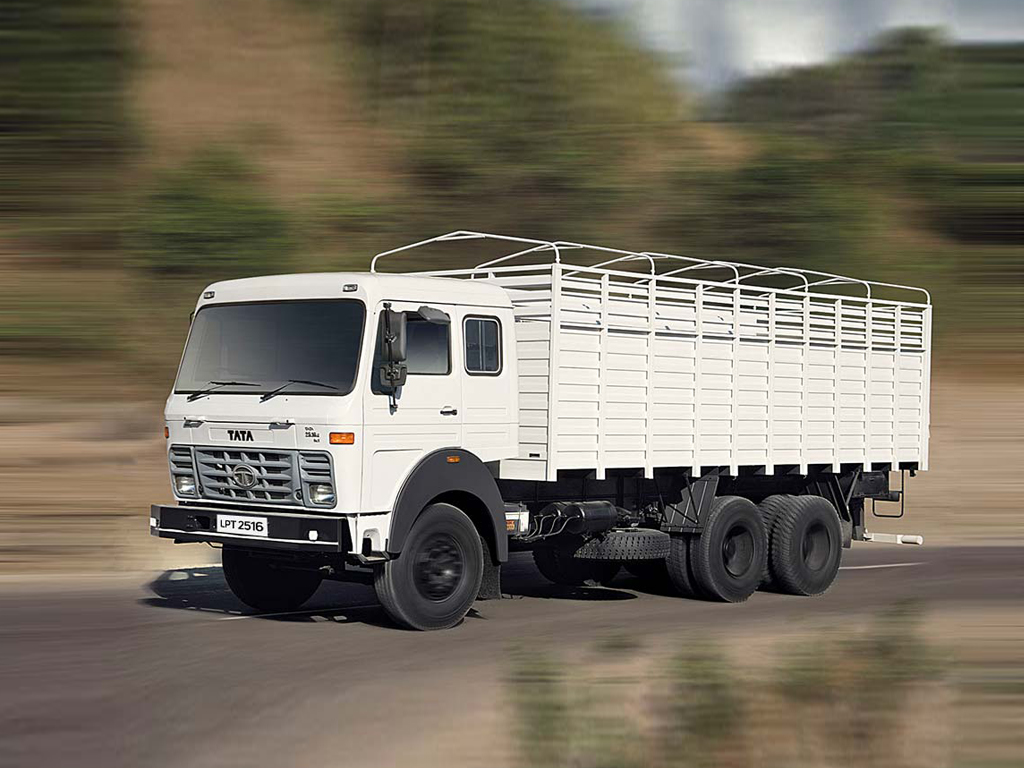

The Tata Motors LPT 2516 cargo truck is built to handle heavy tasks with efficiency and reliability. Powered by the robust Cummins 6BT 5.9 water-cooled direct injection Turbocharged, Intercooled Diesel engine, this truck delivers impressive performance. With a maximum power output of 160 HP at 2500 r/min and a torque of 550 Nm at 1500 r/min, it effortlessly handles heavy loads and navigates through challenging terrains.
The truck features a TATA GB 600, 6F + 1R gearbox for smooth gear shifting and optimal performance. The LPT 2516 comes fitted with a Full Air S-Cam brake system with Automatic Adjuster, it guarantees reliable and responsive stopping power. The suspension system consists of semi-elliptical leaf springs at both the front and rear, providing excellent stability and load-bearing capacity. With a gradeability of 22%, this truck makes climbing moderate slopes seem effortless.
- Water-Cooled Direct Injection Turbocharged Intercooled Diesel Engine
- 160 HP Maximum Power
- Tata GB 600, 6F + 1R Gearbox
- Full Air S-Cam Brake System with Automatic Adjuster
Add the Tata Motors LPT 2516 truck to your fleet and experience the power, reliability, and versatility like never before.
Features designed for performance and profits
01LPT 2516/48 specifications
Engine
CUMMINS 6BT 5.9
Engine Type
Water cooled direct injection Turbocharged, Intercooled Diesel engine
Body Type
LPT 2516 FCAB 48WB NA 109SRT 10X20
Engine Capacity
5883
Engine Power
160 HP at 2500 rpm
Max Speed
69
Emission
E I
Torque
550 Nm at 1500 rpm
Gradeability
22%
Gear Box
TATA GB 600, 6F + 1 R
Clutch
352
Steering System
Hydraulic Power Steering
Brakes
Full Air S-Cam with Automatic Adjuster
Suspension
Semi elliptical leaf spring at front and rear, antiroll bar at front axle only
Suspension - Front
Semi elliptical leaf spring, and antiroll bar at front axle only
Suspension - Rear
Semi elliptical leaf spring
Tyre Size
10 X 20- 16PR
Axle - Rear
RA-109
Axle Final ratio
6.83
Length
9087
Width
2440
Height
3010
Wheelbase
4880 mm
Ground Clearance
264 mm
Turning Circle Radius
9250
Turning Circle Diameter
18.5 mm
GVW
25000 kg
Kerb Weight
6280 kg
Max Permissible FAW
6000 kg
Max Permissible RAW
19000 kg
Fuel Tank Capacity
250
Cabin Ventilation
Non-AC
