Move ahead with the power to do more
-
12R24
Tyres
-
54%
Maximum Gradeability
-
1550 Nm
Maximum Torque
-
Suspension
Parabolic Spring and Semi Elliptical Leaf Spring

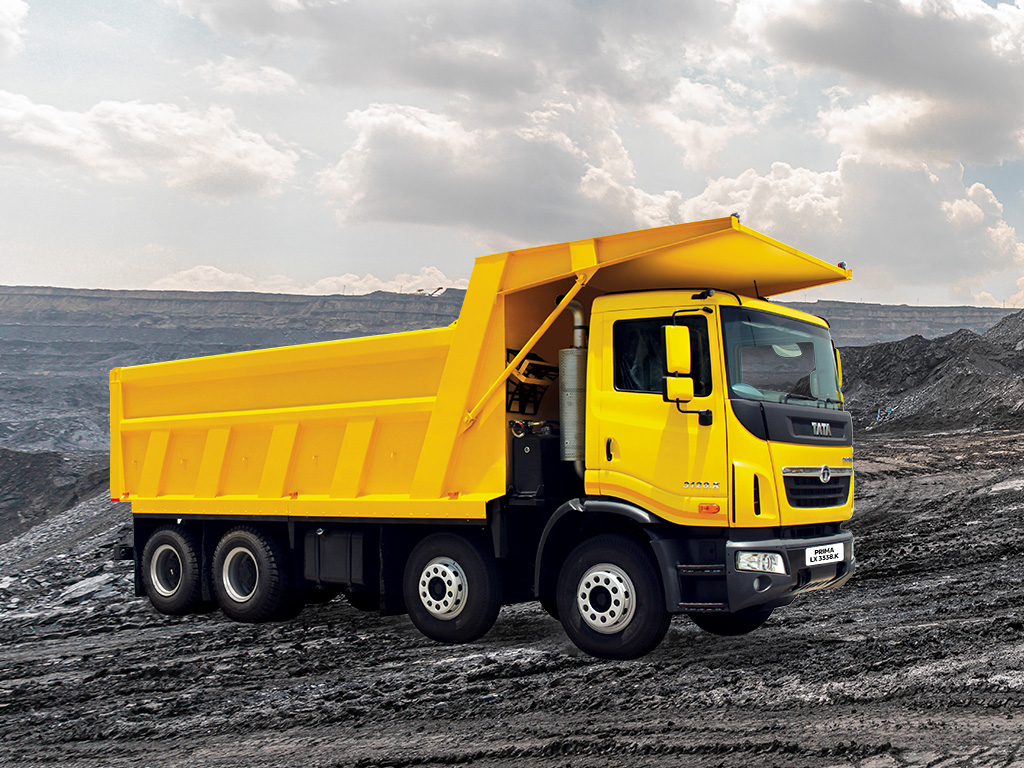

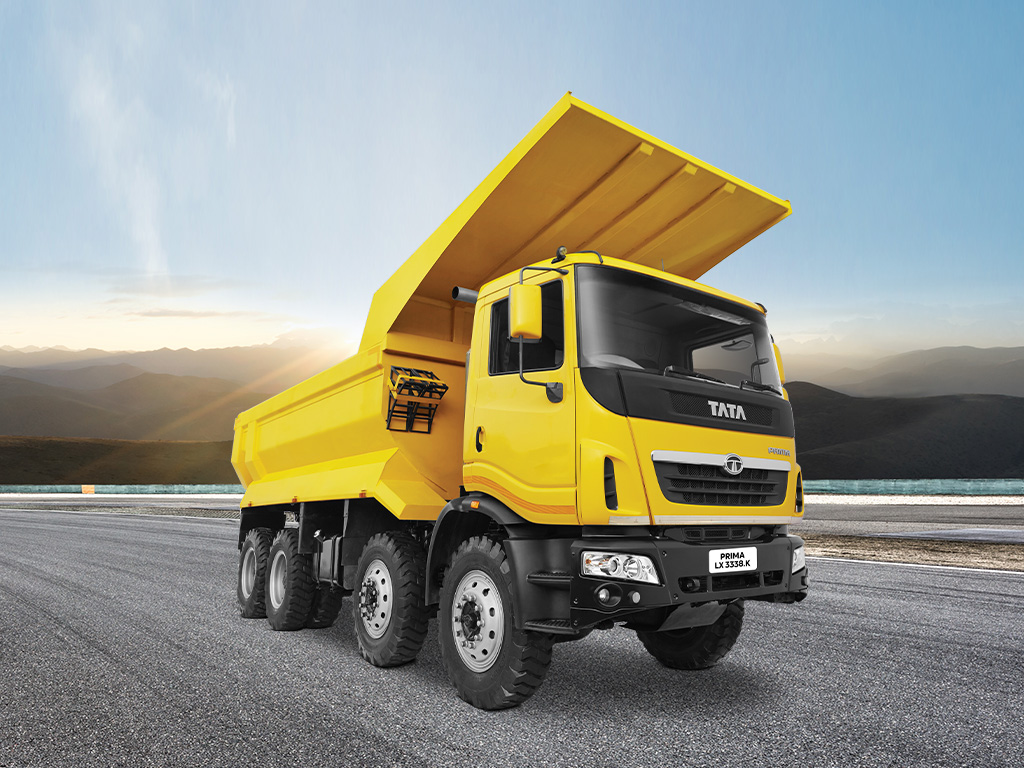

PRIMA LX 3338.K
The Tata Motors Prima Lx 3338.K is powered by a formidable Cummins ISLe diesel engine. It delivers a maximum power output of 370 BHP at 2100 rpm and a maximum torque of 1550 Nm. This truck is designed to excel in heavy-duty tipper operations, delivering remarkable power and performance.
The Eaton 8F + 1 C + 1 R gearbox guarantees effortless gear shifts and smooth power transmission, resulting in a seamless and responsive driving experience for the driver. The truck features a Full Air Dual circuit - S Cam braking system with ABS for enhanced control and safety. At the front, the suspension system features a compensating linkage parabolic spring, providing excellent ride comfort and stability. At the rear, the truck is equipped with a two-spring balance beam bogie with semi-elliptic multi-rubber-mounted torque rods and a V-Rod, enhancing load-carrying capacity and minimizing vibrations during heavy tipper operations.
- CUMMINS ISLe Diesel Engine
- 370 HP Maximum Power
- Eaton 8F + 1 C + 1 R Gearbox
- Full Air S-Cam Brake System With ABS
With a best-in-class gradeability of 54%, the Tata Motors Prima Lx 3338.K confidently conquers challenging terrains and inclines, making it the ideal choice for various construction and mining applications.
Features designed for performance and profits

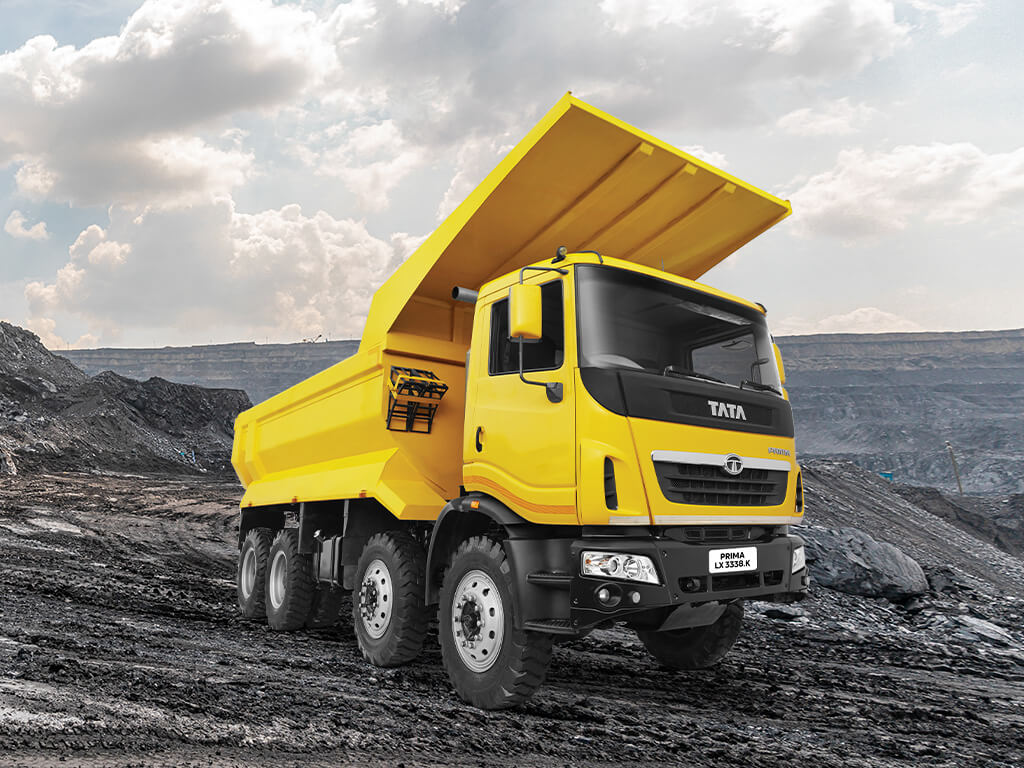

01PRIMA LX 3338.K specifications
Engine
Cummins ISLe
Body Type
3338.K 8X4 E3 52WB NS 12R24 KB 7.246
Engine Capacity
8898
Max Engine Output
370 BHP @ 2100 rpm
Torque
1550 Nm at 1200-1400 rpm
Gradeability
54%
Gear Box
Eaton, 8F + 1 C + 1 R
Clutch
430
Steering System
Hydraulic Power Steering
Brakes
Full Air Dual circuit - S Cam with ABS
Suspension
Compensating Parabolic leaf spring at front & two spring balance beam Bogie with semi elliptic multi spring & rubber mounted torque rods & V-rod Anti roll bar at rear
Tyre Size
12R24
Length
8488
Width
2590
Height
3232
Wheelbase
5250
Ground Clearance
353
Turning Circle Radius
11137
GVW
33000 kg
Kerb Weight
11220 kg
Fuel Tank Capacity
260
Body Option
25 Cum
