Move ahead with the power to do more
-
Semi Elliptical Leaf Spring
Suspension
-
LoadBody
12 feet and 10 feet
-
Tata 497 SP Turbo
Engine
-
26%
Gradeability

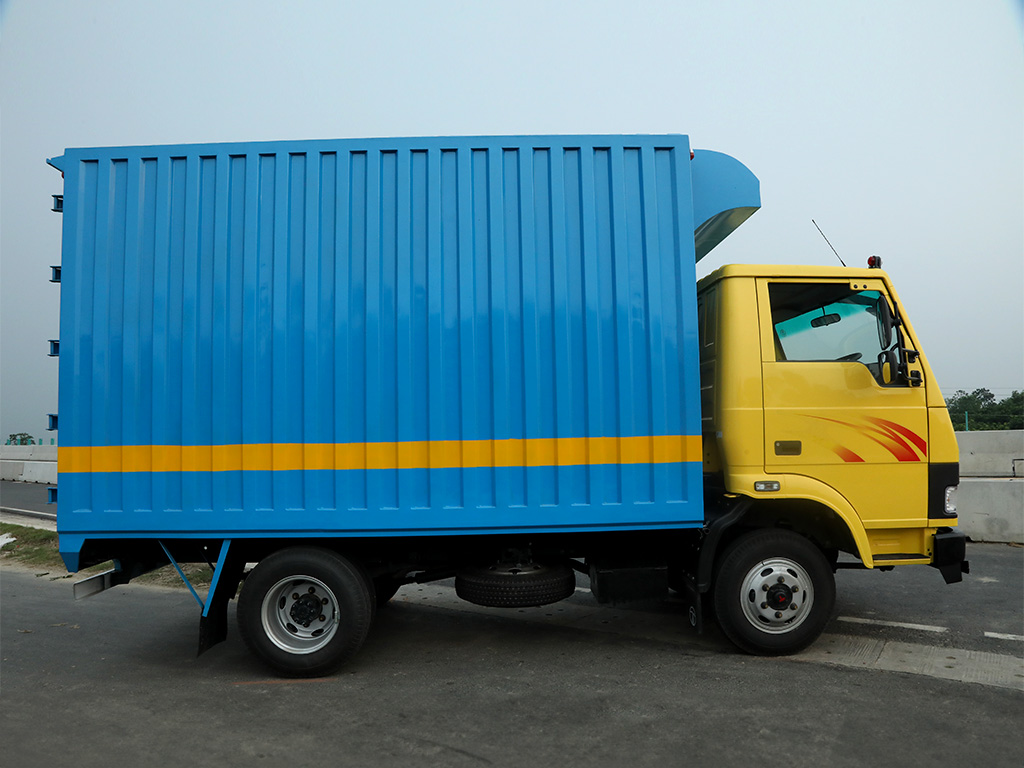

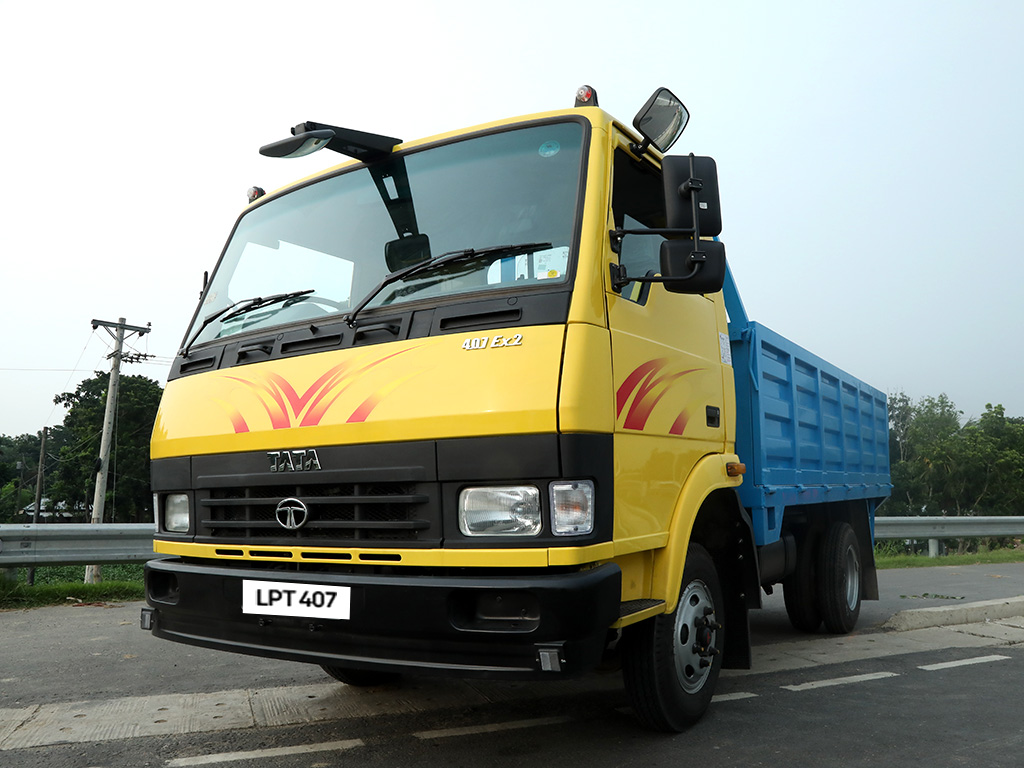

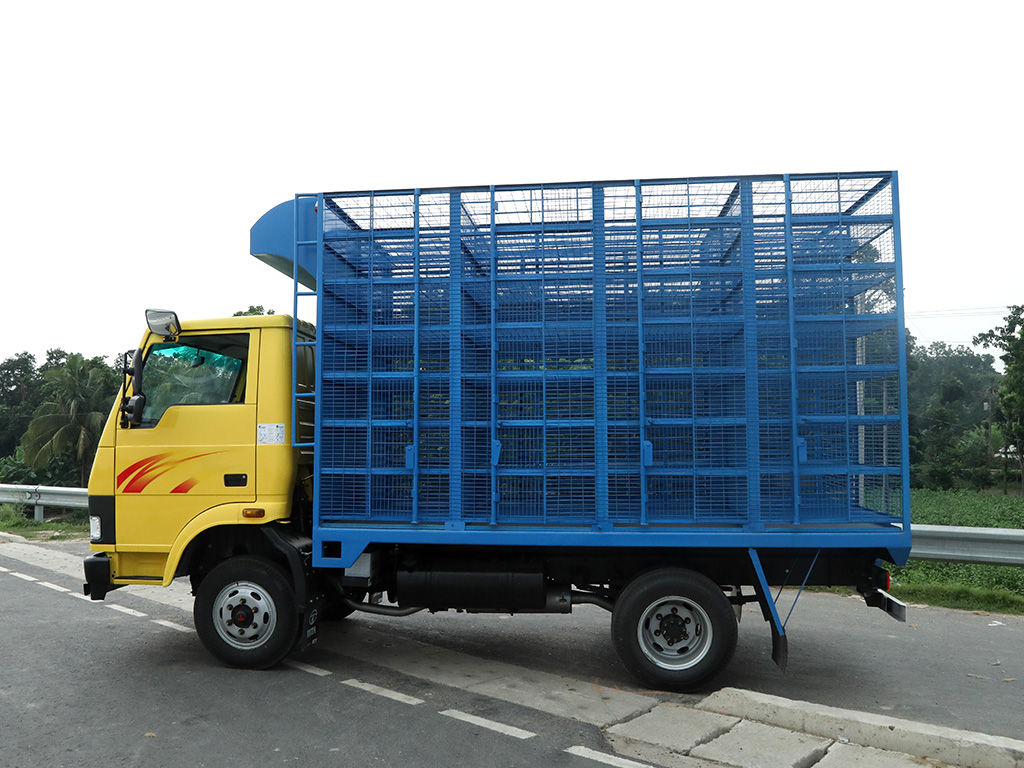

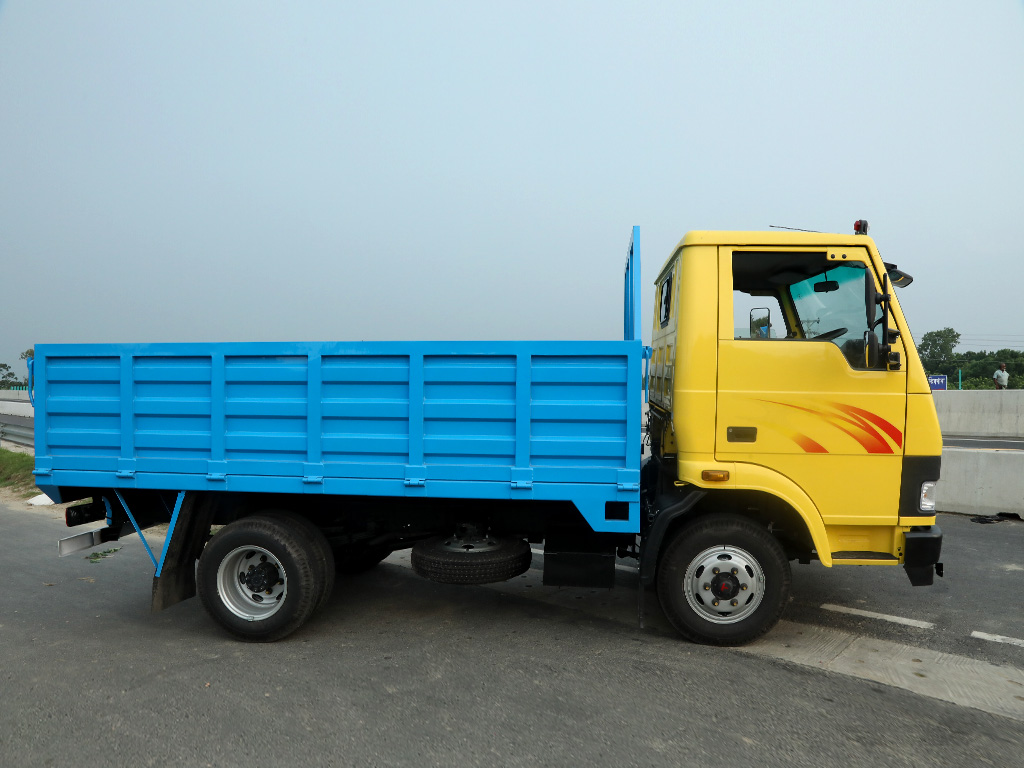

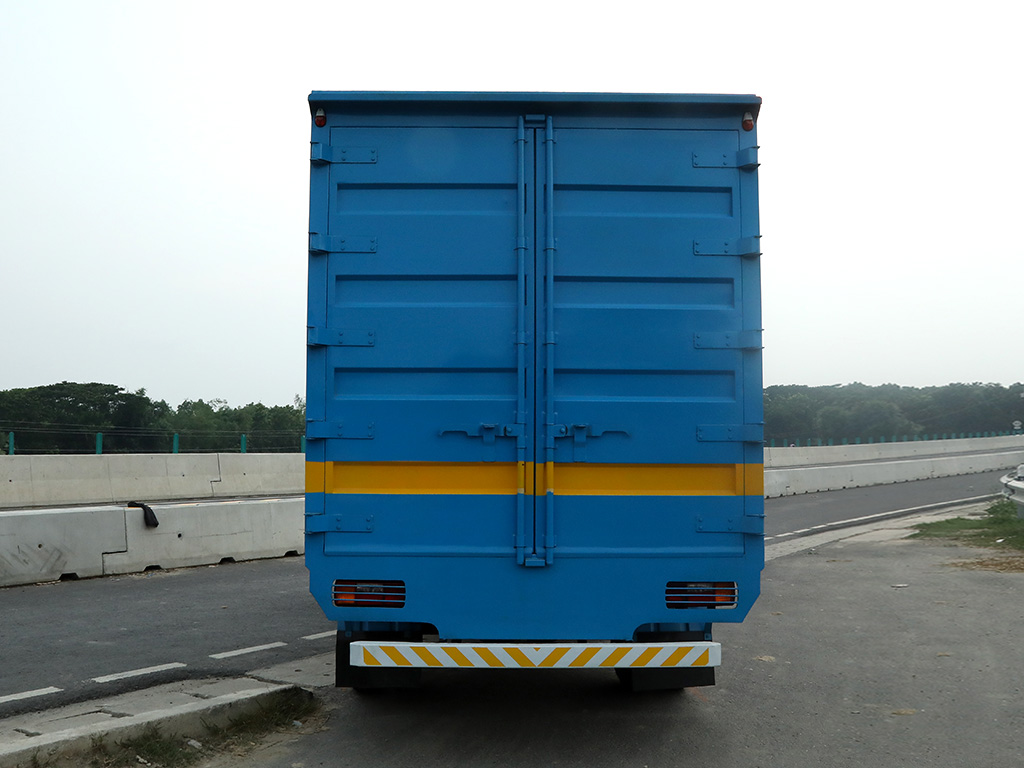

LPT 407
Find the perfect balance of power, efficiency, and reliability with Tata Motors LPT 407. Powered by the Tata 497 SP turbo water-cooled direct Injection diesel engine, this truck delivers exceptional performance while maintaining BS2 emission compliance. With a maximum power output of 75 ps and a maximum torque of 250 Nm, it makes challenging terrain and demanding workloads look easy.
Its GBS-27 Synchromesh gearbox makes transmission seamless and efficient, ensuring a smooth driving experience. The vacuum-assisted dual-circuit hydraulic brakes with a tandem master cylinder ensure safety and control in all situations. Its semi-elliptical leaf spring suspension at both the front and rear provides unmatched comfort and stability, absorbing bumps and delivering a smooth ride. With a gradeability of 26%, this truck conquers steep inclines and challenging terrain with ease.
- Powerful Water-Cooled Direct Injection Diesel Engine
- 250 Nm Maximum Torque
- Tata GBS-27 Synchromesh 5F + 1R Gearbox
- Vaccum-Assisted Dual Circuit Hydraulic Brake System With A Tandem Master Cylinder
Whether it's transportation, delivery, or any other business application, the Tata Motors LPT 407 offers the perfect combination of reliability, durability, and performance. It's a dependable partner that takes your business to new heights while ensuring efficient operations and unparalleled productivity.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. Proven 497 Turbo Engine - optimum torque gives better performance and efficiency.
2. More load carrying capacity in one go.
3. Lowest turning circle diameter in the class.
1. Enables to carry more load with ease of driving
2. Offers higher earning and thus better ROI
3. Ease of driving and excellent maneuverability on congested roads
1. Optimum torque gives better performance and efficiency
2. More load carrying capacity in one go
3. Lowest turning circle diameter in the class
4. Best in class ground clearance for movement in difficult terrains

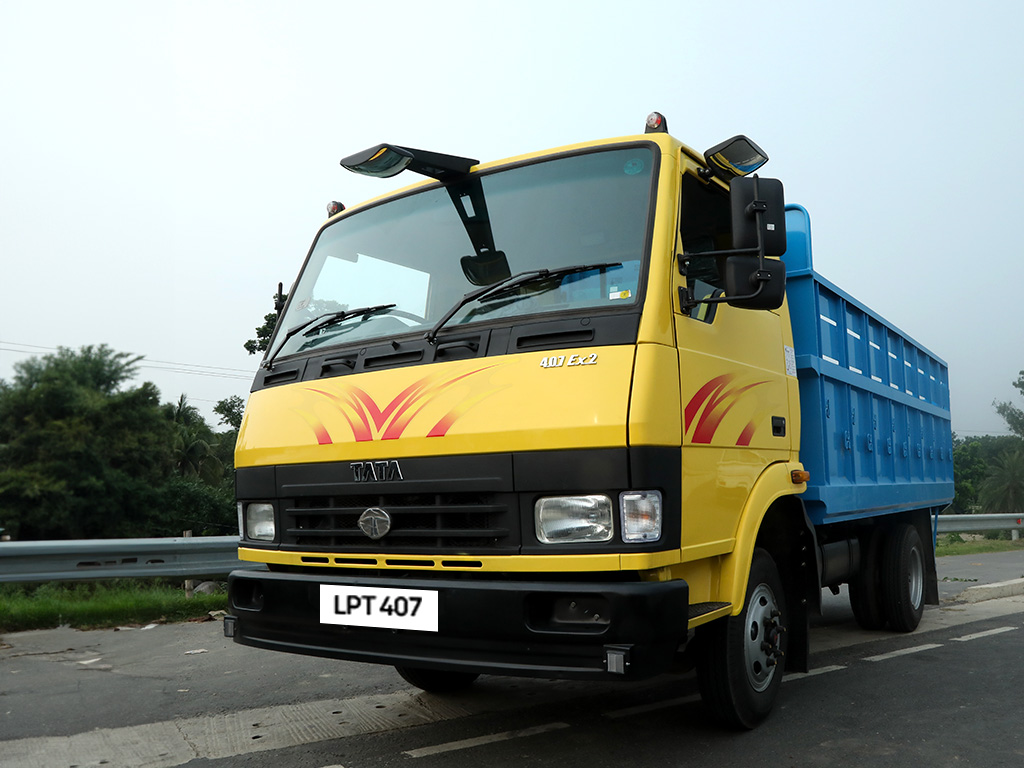

LPT 407 specifications
Engine
Tata 497 SP Turbo
Engine Type
Water cooled direct injection Diesel Engine
Engine Capacity
2956 cc
Engine Power
75 Ps @ 2800 rpm
Max Speed
87 kmph
Emission
BS2
Torque
225 Nm @ 1500-1800 rpm
Gradeability
26%
Transmission Model
GBS-27 Synchromesh
No of Gears
5F + 1R
Gear Box
GBS-27 Synchomesh 5F+1R
FGR
7.36
Clutch
280mm Dia, Single plate dry friction
Clutch Lining Outside Diameter
280mm
Steering System
Power
Brakes
Vaccum assisted Dual circuit Hydraulic with tandem master cylinder
Brake - Front
Drum
Brake - Rear
Drum
Suspension - Front
Semi-Elliptical Leaf Springs
Suspension - Rear
Semi-Elliptical Leaf Springs
No of Tyres
Front =2, Rear 4
Tyre Size
7.50 x 16 - 16PR (Front - Rib, Rear - Lug)
Wheel Rims
6G x 16 SDC
Size & Ply rating
6.50 x 16 - 16PR Diagonal Ply
Axle - Front
2535 kg
Axle - Rear
Single reduction, hypoid gears, fully Floating axle shafts & 3715 kg
Axle Final ratio
4.57
Frame
Ladder type frame with riveted/ bolted cross members Side members are of channel section Depth : 200 mm (max) Width : 60 mm and Thickness : 5mm
Length
5125 mm
Width
2132 mm
Height
2358 mm
Wheelbase
2775 mm
Overall Length
5425 (w/o Loadbody) mm
Overall Width
2132 mm
Turning Circle Diameter
10.2 m
Track Front
1650 mm
Track Rear
1587 mm
Angle of Departure
30 degree
GVW
3000
Kerb Weight
2530 kg & 2530 kg
Max Permissible FAW
1200
Max Permissible RAW
1800
Payload
3720 kg & 470 kg
Fuel Tank Capacity
90 L
Cabin
Day Cab
Cargo Box Dimensions
10 ft
Seats
D+2
Warranty
1 Year or 64000 kms, whichever is earlier
