Move ahead with the power to do more

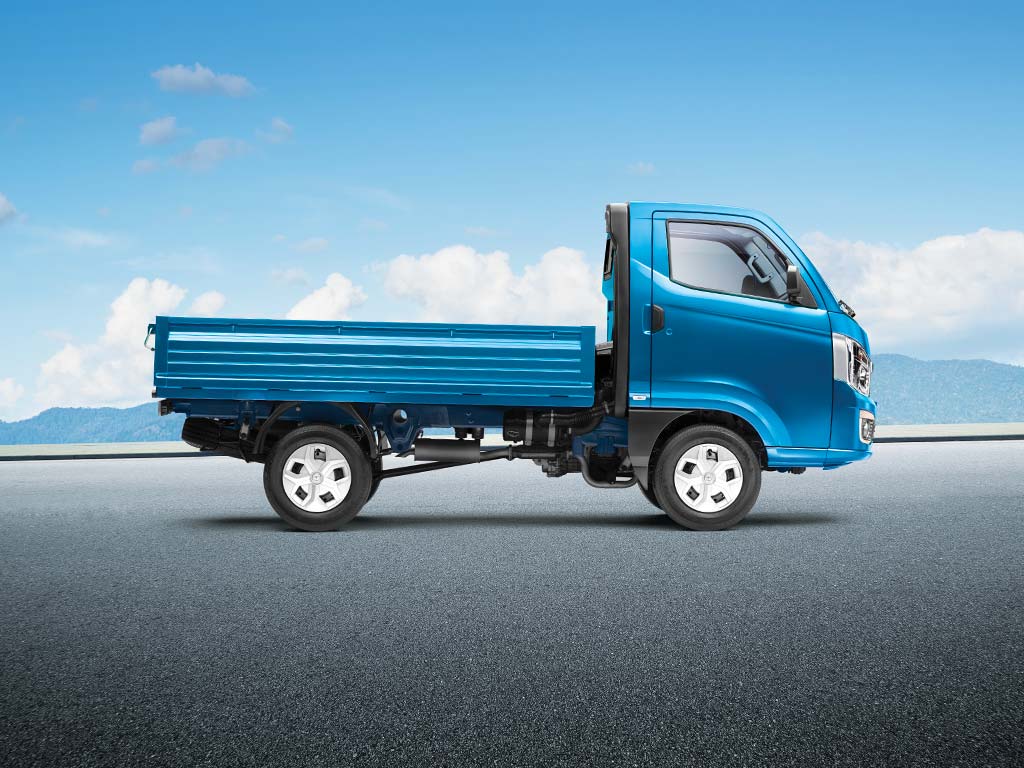

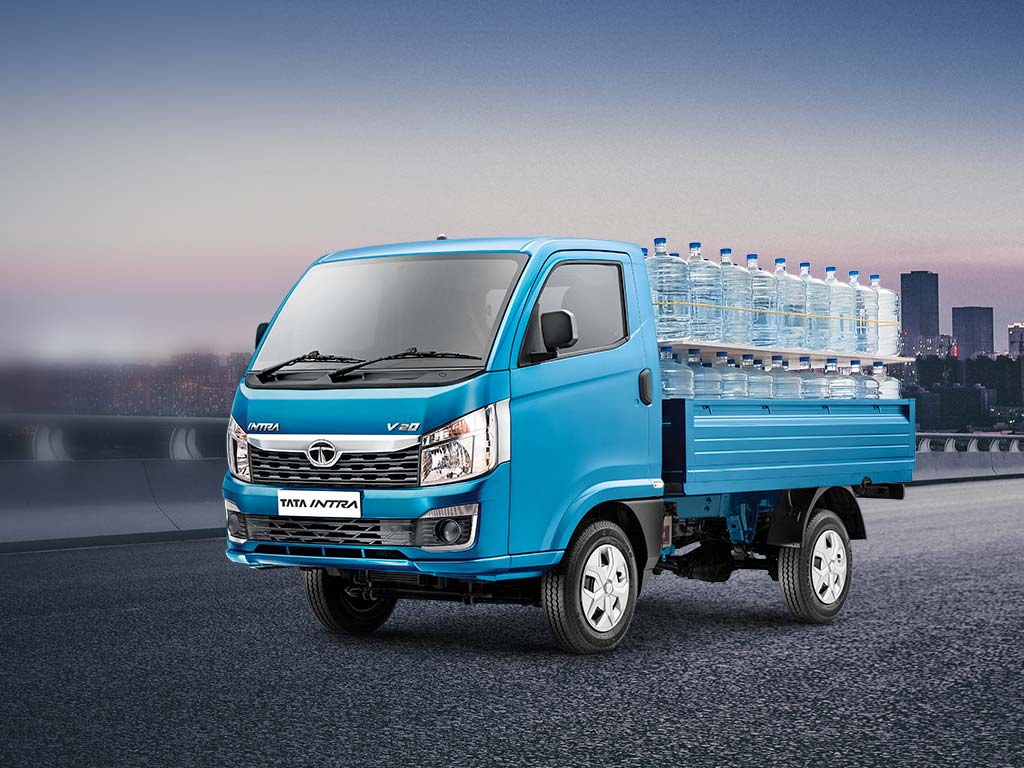

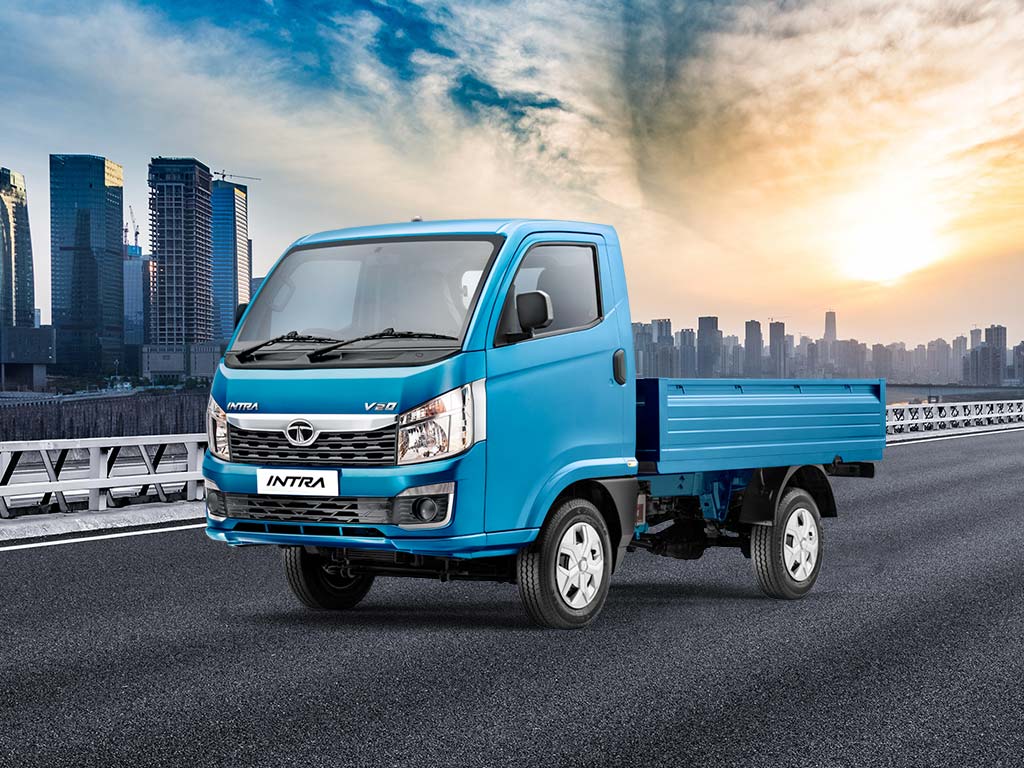

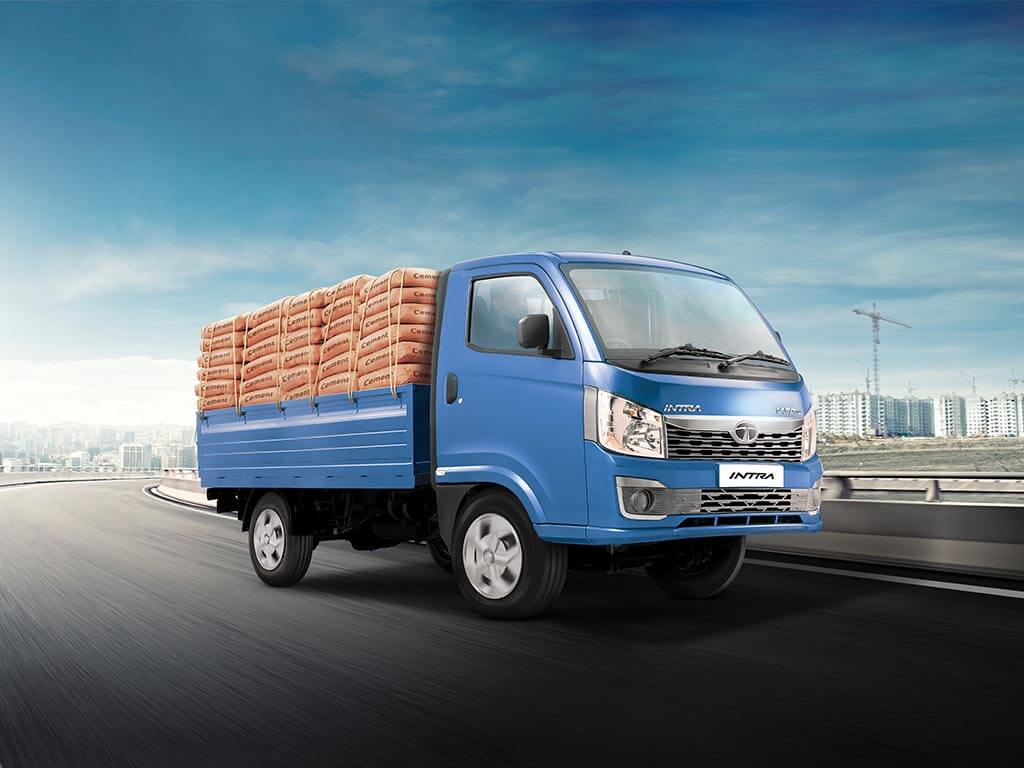

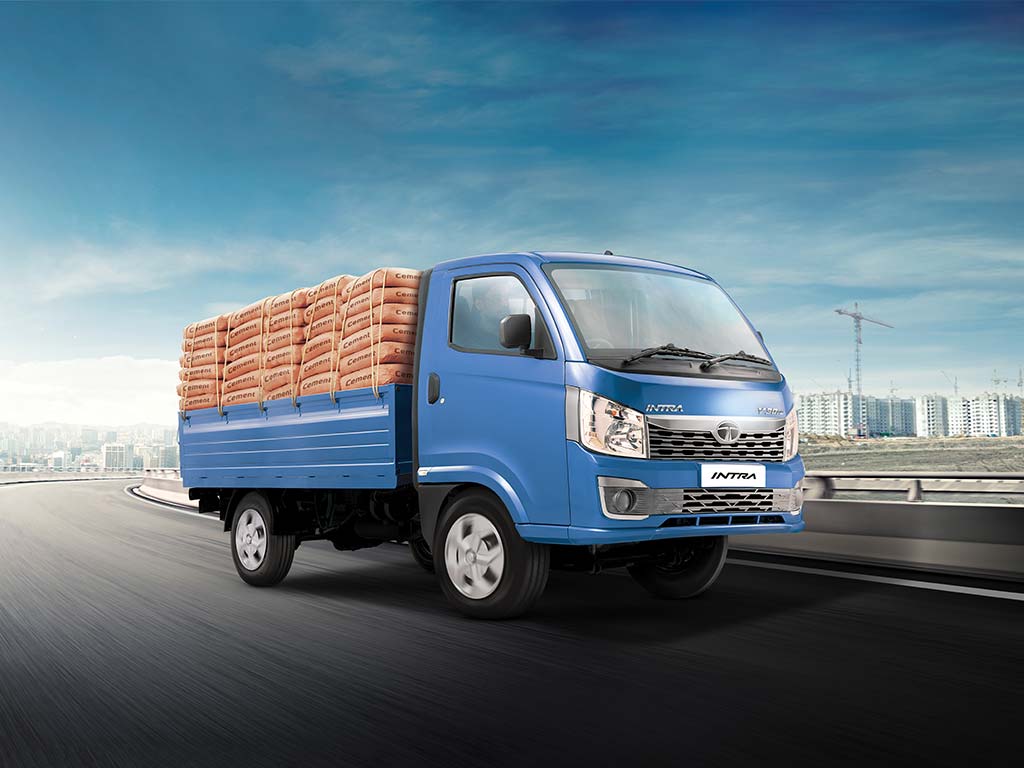

Tata Motors' Intra V20 embodies Tata Motors' innovative new ’Premium Tough' design philosophy. It seamlessly integrates visual elegance and sophistication with unparalleled strength and reliability.
Tata Motors’ Intra V20 has a new BSIV-compliant DI engine that generates 70hp at 4000 rpm. This compact pickup truck comes with a Gear Shift Advisor (GSA), which ensures best-in-class fuel efficiency and a smoother driving experience. Its Electric Power Assisted Steering (EPAS) makes maneuvering the vehicle much easier.
- BSIV-Compliant Engine
- 70hp Maximum Power
- BSIV Emission Standard Compliant
- Smooth 5-speed gearbox
With a reduced number of welding joints, the chassis offers superior structural strength and enhanced durability, making it suitable for enduring long-distance journeys and heavy-duty applications. The V20 comes with a rated payload of 1100 kg and ultra-strong leaf spring suspension.
Features designed for
performance and profits
- 4 cylinder, 1.4L CRDI engine
- 70hp @ 4000 rpm
- 140 Nm @ 1800-3000 rpm
Big, powerful and rugged latest engine for high performance and longer life.
5-speed synchromesh gearbox with Cable shift mechanism (GBS65 with 5F+1R)
Gear box with cable shift mechanism offers a pleasurable car like driving experience
Deep crown wheel pinion ratio RAR 4.88
- Enhanced torque on wheels
- Better restart Gradeability, ability to take more loads
Front: Disc brakes Rear: Drum brakes
Highly efficient braking system for confident and safe journeys, less braking disrance
Gear Shift Advisor
Indicates the optimum point for shifting gears (using arrows) on the instrument cluster.
Helps to achieve optimum fuel efficiency.
First time in SCV segment chassis frame has been manufactured using hydroforming process
Lesser welding joints on the chassis mean higher structural strength and lower NVH levels in the cabin and excellent ride quality
14-inch radial tyres (165 R14)
Bigger tyres for load carrying capability in varied terrains and longer tyre life
Ground clearance of 170mm
High ground clearance for enhanced capability to manoeuvre even in poor road conditions.
- Gradeability is defined as the highest grade a vehicle can ascend maintaining a particular speed.
- Gradeability: 45%
Best-in-class gradebility helps in negotiating steep moiuntain roads and flyovers with ease even in loaded conditions.
0-60 kmph in 14.5 seconds.
- Quick acceleration for faster turnaround time.
- More Trips lead to More Revenue
High top speed of 80 kmph.
Results in quicker turn around time, hence more earnings.
Walk through cabin
Big and wide walk through cabin with D+1 (+1) seating arrangement
- More cabin space for comfortable long drives.
- Comfortable seats not only ensure a relaxed driving experience but also offer a good resting experience
- Power steering as standard fitment across variants.
- Turning circle radius of 4.75m.
Shorter turning radius further enhances the maneuverability of the vehicle while driving through traffic conditions.
Ergonomically positioned steering wheel, dashboard mounted gear lever, ABC pedals etc.
All controls, pedals and levers placed within the reach of the driver makes longer drives comfortable and tireless
Overall length of 4282 mm
Large loading area with compact footprint makes it easy to park in the congested parking spots.
Low NVH levels
Low NVH (Noise, Vibration & Harshness) levels
Pleasant drive experience resulting in more time on road leading to more productivity & faster TAT
Loading area of 8.2 x 5.3 feet standard across variants.
Large & wide loading area facilitates owners to load more cargo, earn extra revenue, enhance the profits.
Load carrying capability
- Leaf spring suspension (6 in front, 7 in rear)
- Strong leaf springs enhance load carrying ability & are easy to maintain.
Better shock absorbing and load carrying capability for better ride comfort and durability.
- 2300 kg GVW
- Legal Payload of 1100 KG
Ability to carry heavy load facilitates more earning, and quicker ROI.
Rugged & reliable aggregates
Low maintenance cost on account of longevity of aggregate life.
Intra V20 specifications
Water cooled Direct Injection Common Rail Diesel Engine with Exhaust Gas Recirculation and Oxidation Catalyst with Turbo charger and Intercooler with Onboard Diagnostics (OBD-II)
52KW @ 4000 RPM
140 @ 1300-3000
GBS 65 Synchromesh 5F + 1R
Single plate dry friction diaphragm type
Hydraulic Power assisted Steering
Brake - Front
Brake - Rear
Front - Disc brakes; Rear - Drum brakes
Suspension - Front
Semi elliptical leaf spring
Suspension - Rear
Semi elliptical leaf spring
Turning Circle Diameter
Fuel Tank Capacity
Cargo Box Dimensions
