Move ahead with the power to do more
-
11 x 20-16 PR
Tyres
-
26%
Maximum Gradeability
-
900 Nm
Maximum Torque
-
Suspension
Parabolic Spring and Semi Elliptical Leaf Spring

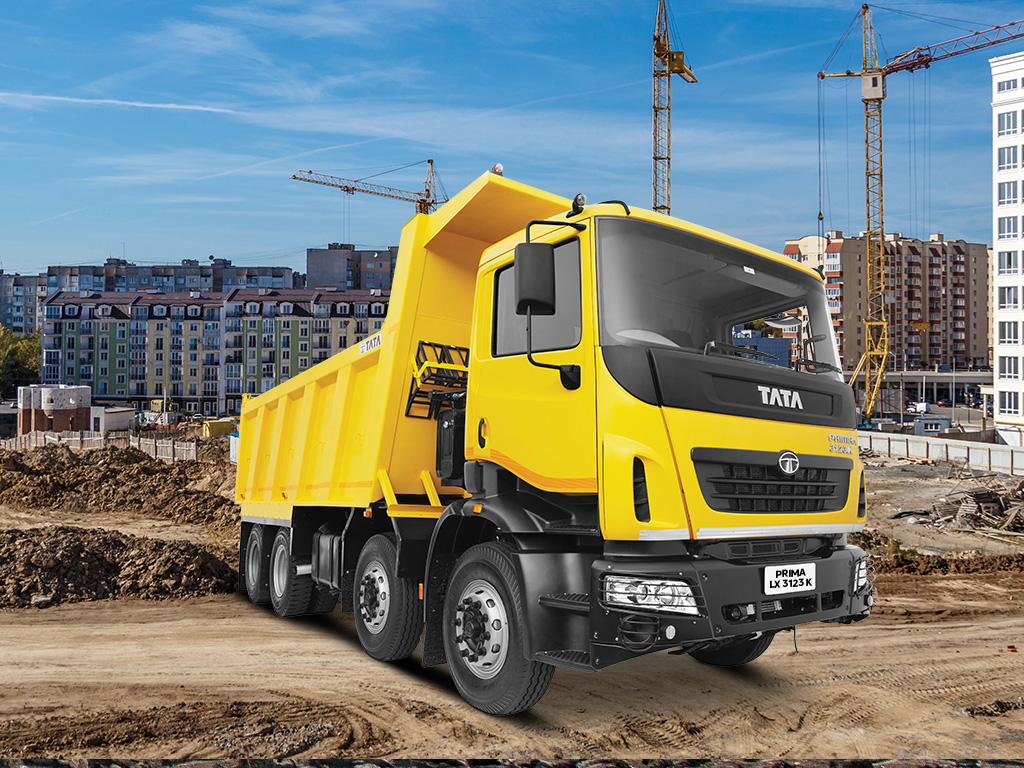

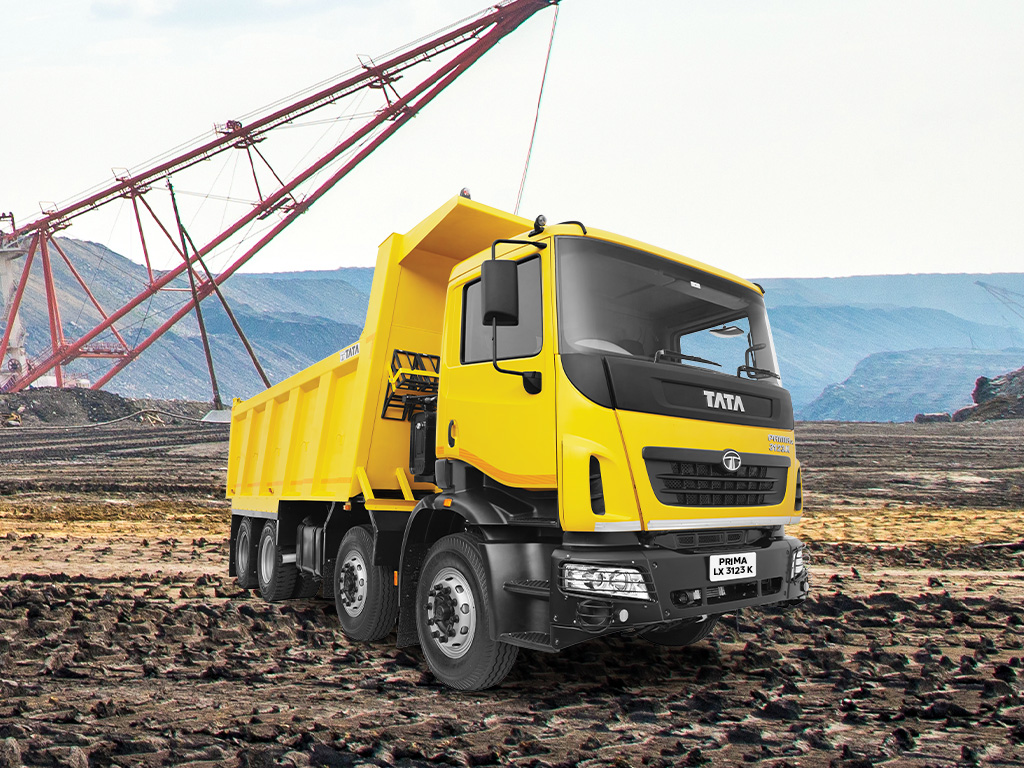

PRIMA LX 3123.K
The Tata Motors Prima Lx 3123.K is powered by a robust Cummins ISBe 6.7L diesel engine. With a maximum power output of 227 BHP at 2500 rpm and a maximum torque of 900 Nm, this truck is designed to handle heavy-duty tipper operations with ease and efficiency.
Effortless gear shifts and smooth power transmission are ensured by the G 1150 8F+1C+1R gearbox, providing a seamless and responsive driving experience for the driver. The Prima Lx 3123.K braking system features a full-air dual-circuit S-Cam with ABS, offering enhanced control and stability during braking maneuvers. At the front, the suspension system features a compensating linkage parabolic spring, providing excellent ride comfort and stability. At the rear, the truck is equipped with a two-spring balance beam bogie with semi-elliptic multi-rubber-mounted torque rods and a V-Rod, enhancing load-carrying capacity and minimizing vibrations during heavy tipper operations.
- CUMMINS ISBe 6.7L Diesel Engine
- 227 HP Maximum Power
- Tata G 1150, 8F+1C+1R Gearbox
- Full Air S-Cam Brake System With ABS
Whether you're involved in earth-moving, construction, or mining activities, the Prima Lx 3123.K will be your perfect companion. It combines power, safety, and reliability to meet the demands of heavy-duty tipper operations.
Features designed for performance and profits

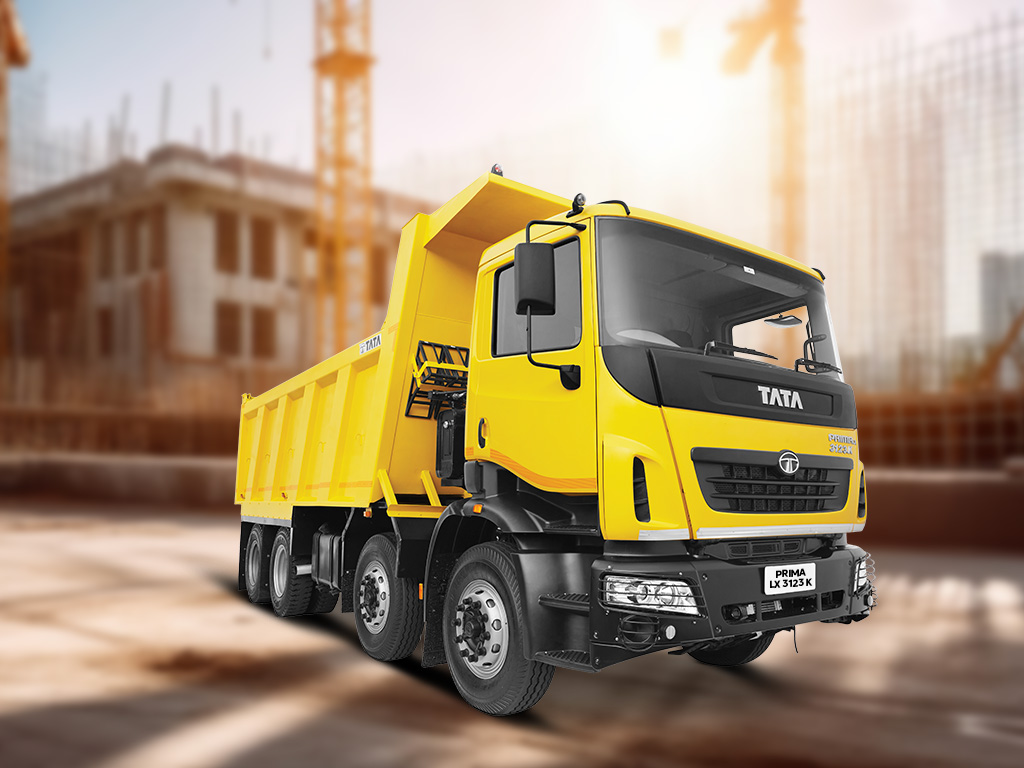

01PRIMA LX 3123.K specifications
Engine
Cummins ISBe 6.7
Body Type
PRIMA LX3123.K AC 22BX SRT 11X20 NT ABS
Engine Capacity
6700
Engine Power
227 BHP @ 2500 rpm
Torque
900 Nm at 1700 rpm
Gradeability
26%
Gear Box
G 1150 , 8F+1C+1R
Clutch
430
Steering System
Hydraulic Power Steering
Brakes
Full Air Dual circuit - S Cam with ABS
Suspension - Front
Compensating linkage Parabolic spring
Suspension - Rear
Two spring balance beam Bogie with semi elliptic multi rubber Mounted Torque Rods & V-rod
Tyre Size
11 x 20-16 PR
Length
8752
Width
2590
Height
3090
Wheelbase
5250
Ground Clearance
254
Turning Circle Radius
9577
GVW
31000 kg
Kerb Weight
15100 (with Body) kg
Fuel Tank Capacity
400
Body Option
22 Cum
