Move ahead with the power to do more
-
10.00X20-16 PR
Maximum Gradeability
-
BSIII
Emission Standard Compliant
-
685 Nm
Maximum Torque
-
Suspension
Parabolic Spring and Semi Elliptical Leaf Spring

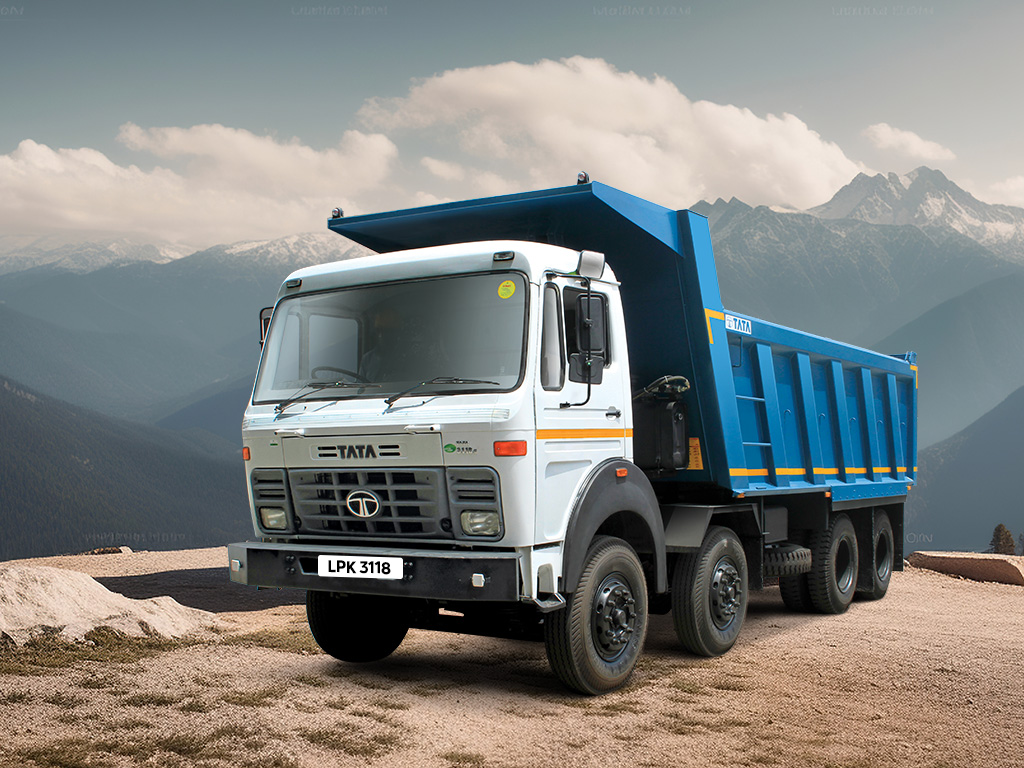

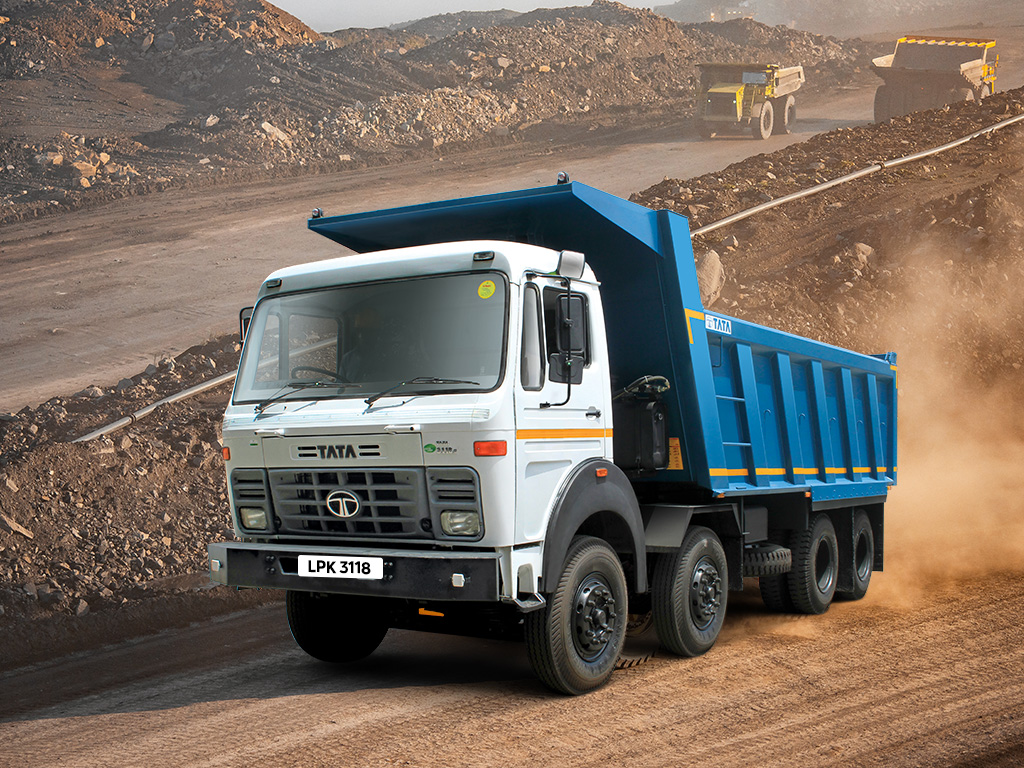

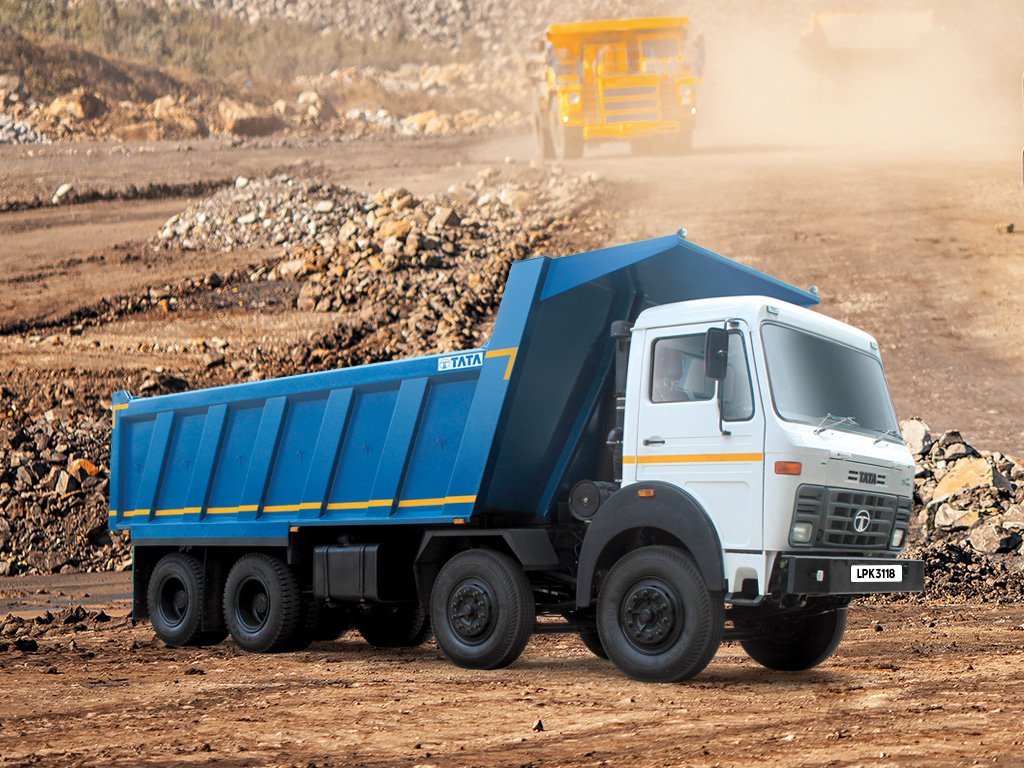

LPK 3118
The Tata Motors LPK 3118 is powered by a reliable CUMMINS B5.9 diesel engine. It delivers a maximum power output of 183 HP at 2500 rpm and a torque of 680 Nm. This tipper truck combines power, safety, and efficiency to meet the challenges of heavy-duty use cases.
The G 1150, 8F+1C+1R gearbox ensures seamless gear shifting and optimal power transmission. Safety is a top priority for us, and the Tata Motors LPK 3118 features a full air S-Cam braking system with an automatic adjuster for enhanced safety. The suspension system is carefully designed for stability and comfort, comprising a parabolic spring with an anti-roll bar at the front, ensuring excellent ride quality and reduced body roll during cornering. At the rear, the truck features a semi-elliptical leaf spring suspension, providing superior load-carrying capabilities.
- CUMMINS B5.9 Diesel Engine
- 183 HP Maximum Power
- Tata G 1150, 8F+1C+1R Gearbox
- Full Air S-Cam Brake System With Automatic Adjuster
Whether you're transporting goods or handling demanding construction tasks, the LPK 3118 is the perfect companion.
Features designed for performance and profits
01LPK 3118 specifications
Engine
CUMMINS B5.9-180 -32
Body Type
LPK3118/ 56 18 CUM TML SUSPENSION BS3
Engine Capacity
5883
Engine Power
183 HP @ 2500 rpm
Torque
680 Nm @ 1400 rpm
Gradeability
21.5%-1st & 31.5%-Crwl
Gear Box
G 1150 , 8F+1C+1R
Clutch
380
Steering System
Hydraulic Power Steering
Brakes
Full Air S-Cam with Automatic Adjuster
Suspension - Front
Parabolic spring at front, antiroll bar
Suspension - Rear
Semielliptical leaf spring
Tyre Size
10.00X20-16 PR
Length
8387
Width
2530
Height
2961
Wheelbase
5580
Ground Clearance
240
Turning Circle Radius
9800
GVW
31000 kg
Kerb Weight
9030 kg
Fuel Tank Capacity
400
Body Option
18 Cum
