Move ahead with the power to do more
-
11 x 20-16 PR
Tyres
-
40% (Crawler)
Maximum Gradeability
-
975 Nm
Maximum Torque
-
Suspension
Parabolic Spring and Semi Elliptical Leaf Spring

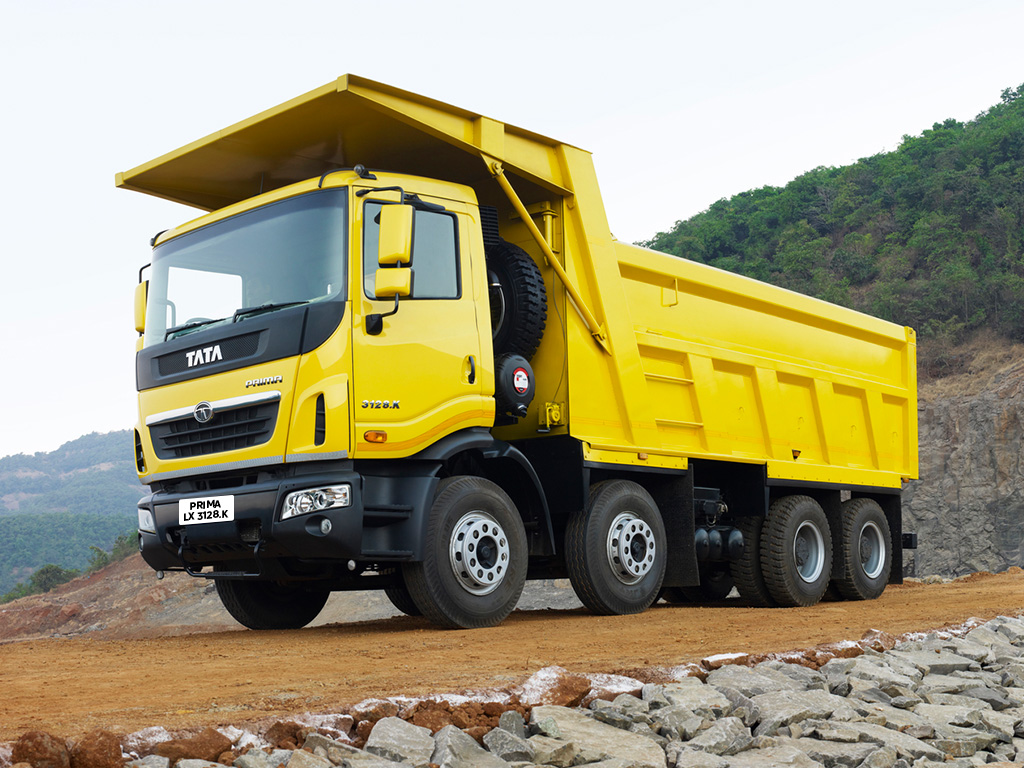

PRIMA LX 3128.K
The Tata Motors Prima Lx 3128.K is powered by the trusted Cummins ISBe 6.7 diesel engine, which delivers a maximum power output of 266 BHP at 2500 rpm and a maximum torque of 975 Nm. This tipper truck is engineered to tackle heavy-duty tipper operations with remarkable power and efficiency.
The G 1150 8F+1C+1R gearbox provides optimal power transmission and a seamless gear shifting experience. The Prima Lx 3128.K features a full-air dual-circuit S-Cam braking system with ABS that guarantees reliable and precise stopping power. At the front, the suspension system features a compensating linkage parabolic spring, providing excellent ride comfort and stability. At the rear, the truck is equipped with a two-spring balance beam bogie with semi-elliptic multi-rubber mounted torque rods and a V-Rod, enhancing load-carrying capacity and minimizing vibrations during heavy tipper operations.
- CUMMINS ISBe 6.7 Diesel Engine
- 266 HP Maximum Power
- Tata G 1150, 8F+1C+1R Gearbox
- Full Air S-Cam Brake System With ABS
With an impressive maximum gradeability of 40%, the Tata Motors Prima Lx 3128.K effortlessly conquers challenging terrains and inclines with confidence, making it the ideal choice for various construction and mining applications.
Features designed for performance and profits
01PRIMA LX 3128.K specifications
Engine
Cummins ISBe 6.7
Body Type
PRIMA LX3128.K CAB AC W/O LB SRT 11X20NT
Engine Capacity
6700
Engine Power
266 BHP @ 2500 rpm
Torque
975 Nm @ 1500 rpm
Gradeability
40% @ CRAWLER GEAR
Gear Box
G 1150, 8F+1C+1R
Clutch
430
Steering System
Hydraulic Power Steering
Brakes
Full Air Dual circuit - S Cam with ABS
Suspension - Front
Compensating linkage Parabolic spring at front
Suspension - Rear
Two spring balance beam Bogie with semi elliptic multi rubber Mounted Torque Rods & V-rod
Tyre Size
11 x 20-16 PR
Length
8317
Width
2534
Height
3090
Wheelbase
5250
Ground Clearance
253
Turning Circle Radius
9577
GVW
31000 kg
Kerb Weight
15100 (with Body) kg
Fuel Tank Capacity
300
Body Option
22/23 Cum
