Move ahead with the power to do more
-
25%
Gradeability
-
BSIII
Emission Standard Compliant
-
Tata 497 CR TCIC
Engine Power
-
Semi Elliptical Leaf Spring
Suspension System

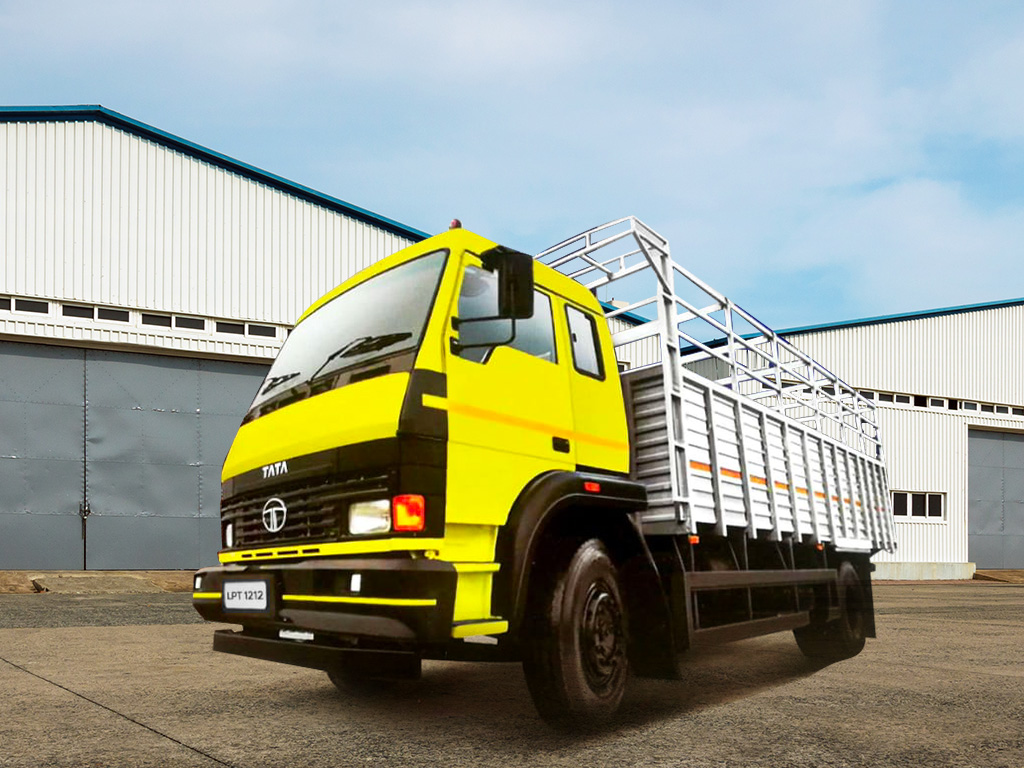

LPT 1212 MAX
Tata Motors LPT 1212 MAX embraces unmatched power and efficiency. Powered by the high-performance Tata 497 CR TCIC, a water-cooled direct common rail injection diesel engine, it delivers a maximum power output of 92 kW at 2400 rpm and a maximum torque of 400 Nm. Whether it's transporting goods or handling deliveries, this truck effortlessly conquers every task with ease and precision.
Experience smooth driving and optimal fuel efficiency with its GBS-40 synchromesh, 5F + 1R gearbox. The LPT 1212 MAX features a dual-circuit full-air S-CAM brake system with ABS to give you reliable and responsive braking performance. The semi-elliptical leaf spring suspension in the front and rear ensures a smooth ride, even on challenging terrain.
- Powerful Water-Cooled Direct Common Rail Injection Diesel Engine
- 400 Nm Maximum Torque
- Tata GBS-40 Synchromesh, 5F + 1R Gearbox
- Dual Circuit Full Air S-CAM Brake System With ABS
With a gradeability of 25%, this truck effortlessly handles steep inclines and challenging road conditions. Drive home the Tata Motors LPT 1212 MAX and elevate your business to new heights. Experience the perfect balance of power, efficiency, and reliability, setting new benchmarks in performance and delivering exceptional value for your operations.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. Optimum power output even at lower RPMs from its reliable engine
2. Optimum torque gives better performance and efficiency
3. Convenience of using vehicle on different terrains and different road conditions
1. Optimum power which enables driver to drive with lesser gear shifts and gives better fuel efficiency
2. High torque allows to carry more load with ease of driving even at low speeds or at stiff inclines and also improves clutch life
3. Best in class ground clearance for movement in difficult terrains
1. Optimum power output even at lower RPMs from its reliable engine
2. Optimum torque gives better performance and efficiency
3. Convenience of using vehicle on different terrains and different road conditions
4. Bigger size clutch offers better power transmission and less wear & tear for more life
LPT 1212 MAX specifications
Engine
Tata 497 TCIC CR
Engine Type
TATA 497 CR TCIC, water cooled direct common rail injection diesel
Engine Capacity
3783 cc
Max Engine Output
125 hp @ 2400 rpm
Max Speed
80 kmph (restricted through SLF)
Emission
BS III
Torque
400 Nm @ 1300-1600 rpm
Gradeability
26.40% & 25.4%
Gear Box
GBS-40 Synchromesh, 5F+1R
Clutch
330mm Dia, Single plate dry friction
Steering System
Power steering
Brakes
Dual Circuit full air S-Cam brakes with ABS
Suspension - Front
Semi-Elliptical Leaf Springs
Suspension - Rear
Semi-Elliptical Leaf Springs
Shock absorber
Hydraulic double acting telescopic type at front only
Tyre Size
9.00 R20 - 16PR (Radial)
No of Wheels
6+1
Axle Final ratio
Fully Floating axle RA108R. Axle Ratio : 5.857
Frame
Ladder type heavy duty frame with riveted/bolted cross members Side members are of channel section Depth -223 mm (max) Flange Width -60mm Thickness 7mm with additional reinforcement
Length
5895 mm & 8660 mm
Width
2268 mm & 2270
Height
2706 mm
Wheelbase
4200 mm & 4830 mm
Overall Length
8660 mm
Max Width LB
2270 mm
Turning Circle Diameter
16.6 mm & 16.7 mm
GVW
10950 kg
Max Permissible FAW
3660 kg
Max Permissible RAW
7290 kg
Fuel Tank Capacity
160 L
Cabin
Day Cab & Sleeper Cab
Seats
D+2 & D+2 + Sleeper Deck
Warranty
1 Year or 64000 kms, whichever is earlier
