Move ahead with the power to do more
-
Semi Elliptical Leaf Spring
Suspension
-
BS III
Emission
-
Tata 497 CR TCIC
Engine
-
30%
Gradeability

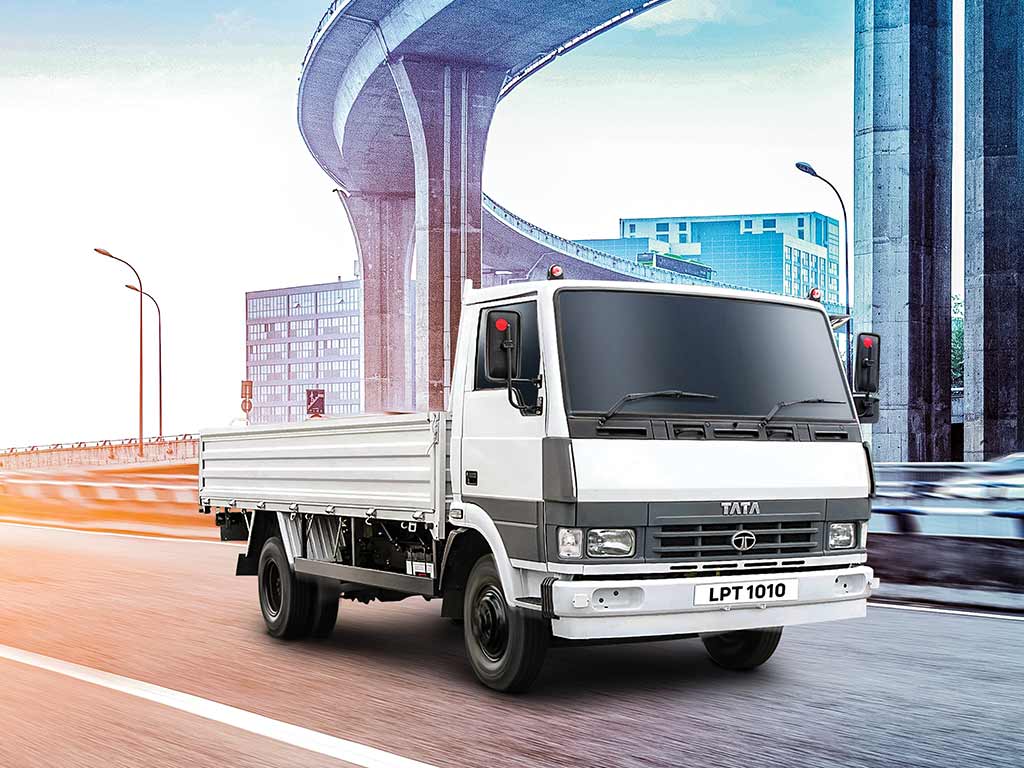

LPT 1010
The Tata Motors LPT 1010 redefines performance, efficiency, and reliability. Powered by a robust Tata 497 CR TCIC, water-cooled direct common rail injection diesel engine, this truck offers unparalleled power and efficiency. With a maximum power output of 92 kW and a maximum torque of 400 Nm, it effortlessly tackles any terrain and heavy workloads with ease.
The GBS-550 synchromesh, 6F + 1R gearbox ensures smooth and precise gear shifts, enhancing the overall driving experience and efficiency. Equipped with a dual circuit full air S-CAM brake system, the truck delivers reliable and responsive braking performance. The semi-elliptical leaf spring suspension in the front and the semi-elliptical leaf Spring with auxiliary springs in the rear provide unmatched comfort and stability.
- Powerful Water-Cooled Direct Common Rail Injection Diesel Engine
- 400 Nm Maximum Torque
- Tata GBS-550 Synchromesh, 6F + 1R Gearbox
- Dual Circuit Full Air S-CAM Brake System
With an impressive gradeability of 30%, this truck effortlessly conquers steep inclines and challenging terrain. The LPT 1010 is built to meet the diverse needs of businesses across industries. Its durability, reliability, and exceptional performance make it an ideal choice for various applications, guaranteeing enhanced productivity and profitability.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. Powerful 497 CR BS3 Engine with High cubic capacity reliable engine with proven track record.
2. High Torque at a wider range of rpm for optimum torque and acceleration - better on performance and efficiency
3. High gradeability allows to drive over steep inclines with ease
4. 6 Speed GBS-550 Gearbox with Aluminium Housing
1. Bigger capacity Engine for higher durability
2. Long life & Low maintenance of Engine
3. Higher HP -More Speed, More no of trips , More Earnings, Better Pick Up & Pulling
4. Higher low end torque - more power available at lower rpm's
5. Bigger Clutch dia for higher life of clutch
6. Bigger Gearbox - more durability & better performance
7. Car like smooth gear shifting - resulting in lesser fatigue on roads
8. Six Speed Forward with Overdrive Gearbox for Better Fuel Efficiency
9. Stronger Aggregates and Proven in Market over time
10. Higher Gradeability - Negotiate Hilly Terrains easily
11. High speed operation, quick turnaround time
12. Shortest turning radius resulting in better maneuverability, best for narrow lanes
13. High payload and GVW capacity backed with strong front and rear axles
1. High capacity reliable engine with proven track record.
2. Optimum torque gives better performance and efficiency.
3. High gradeability allows to drive over steep inclines with ease.
4.Lowest turning circle diameter in the class.
LPT 1010 specifications
Engine
Tata 497 TCIC CR
Engine Type
TATA 497 CR TCIC, water cooled direct common rail injection diesel
Engine Capacity
3783 cc
Max Engine Output
125 Ps @ 2400 rpm
Max Speed
100 kmph
Emission
BS III
Torque
400 Nm @ 1300-1600 rpm
Gradeability
30%
Gear Box
GBS-550(6.9) Synchromesh with Mechanical shift linkages. 6F+1R
Clutch
310mm Dia, Single plate dry friction
Steering System
Power steering
Brakes
Dual Circuit full air S-Cam brakes
Suspension - Front
Semi-Elliptical Leaf Springs
Suspension - Rear
Semi-Elliptical Leaf Springs
Shock absorber
Hydraulic double acting telescopic type at front and rear
No of Tyres
6+1
Tyre Size
8.25 x 16 - 16PR (Front - Rib, Rear - Lug)
No of Wheels
6+1
Size & Ply rating
8.25 x 16 -16 PR
Axle - Rear
Single reduction hypoid gears, fully floating axle shafts. Banjo Axle RAS-1068 Axle Ratio : 4.857
Frame
Ladder type heavy duty frame with riveted/bolted cross members Side members are of channel section Depth -200 mm (max) Flange Width -60mm Thickness 5mm
Length
6805 mm
Width
2140 mm
Height
2332 mm
Wheelbase
3800 mm
Overall Length
6195 mm & 6845 mm
Max Width LB
2255 (with HDLB) mm
Turning Circle Diameter
13.5 mm
GVW
10400 kg
Max Permissible FAW
3375
Max Permissible RAW
7025
Fuel Tank Capacity
160 L
Cabin
Day Cab
Seats
D+1
Warranty
1 Year or 64000 kms, whichever is earlier
