Move ahead with the power to do more
-
40%
Gradeability
-
BSIII
Emission Standard Compliant
-
Tata 497 CR TCIC
Engine
-
Semi Elliptical Leaf Spring
Suspension System

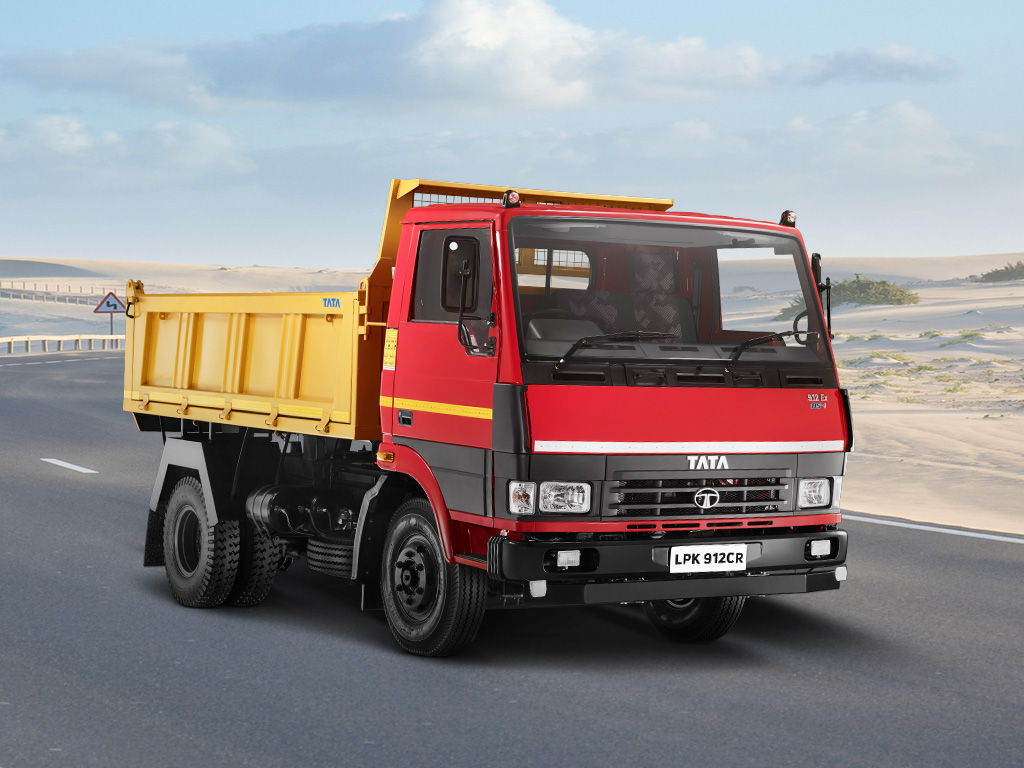

LPK 912
The Tata Motors LPK 912 is powered by the trusted TATA 497 CR TCIC, a water-cooled direct common rail injection diesel engine. This truck sets a new benchmark in performance and versatility with a best-in-class gradeability of 40.0%. It delivers a maximum output of 92 kW at 2400 rpm and a maximum torque of 400 Nm at 1300–1600 rpm, ensuring exceptional performance in every situation.
The GBS-40 synchromesh, 5F+1R gearbox ensures gear shifts are smooth and seamless. The LPK 912 comes with a dual-circuit, full-air S-CAM brake system for responsive braking performance and enhanced safety on the road. The front semi-elliptical Leaf Spring suspension, combined with the rear semi-elliptical leaf spring with auxiliary springs, promises a smooth journey for both the driver and cargo.
- Powerful Water-Cooled Direct Common Rail Injection Diesel Engine
- 400 Nm Maximum Torque
- Tata GBS-40 Synchromesh, 5F + 1R Gearbox
- Dual Circuit Full Air S-CAM Brake System
Furthermore, the LPK 912 is also compliant with BS III emission standards. Get the Tata Motors LPK 912 and experience unparalleled efficiency. Whether you're navigating busy city streets or tackling rugged terrain, this truck delivers the power you need to conquer any challenge.
Features designed for performance and profits
- Feature
- Advantage
- Benefit
1. Optimum power output even at lower RPMs from its reliable engine
2. Optimum torque gives better performance and efficiency
3. Convenience of using vehicle on different terrains and different road conditions
1. Bigger capacity Engine for higher durability
2. Long life & Low maintenance of the proven Tata 497 family engine
3. Higher HP -More Speed, More no of trips , More Earnings, Better Pick Up & Pulling
4. Higher low end torque - more power available at lower rpm's
5. Flat torque curve from 1300 - 1600 rpm for optimized and higher range of torque
6. Improved clutch material for longer life of the clutch
7. Heavy duty Gearbox - more durability & better performance
8. Stronger Aggregates and Proven in Market over time
1. Optimum power output even at lower RPMs from its reliable engine
2. Optimum torque gives better performance and efficiency
3. Convenience of using vehicle on different terrains and different road conditions
4. Bigger size clutch offers better power transmission and less wear & tear for more life

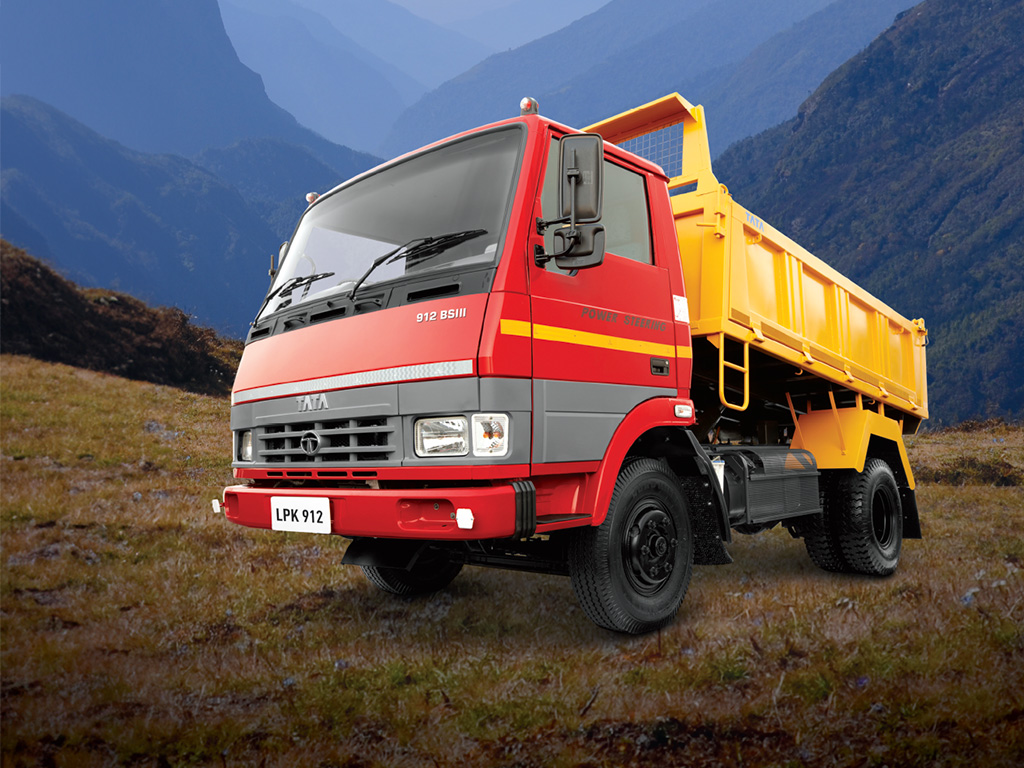

LPK 912 specifications
Engine
Tata 497 TCIC CR
Engine Type
TATA 497 CR TCIC, water cooled direct common rail injection diesel
Engine Capacity
3783 cc
Max Engine Output
125 Ps @ 2400 rpm
Max Speed
76 kmph
Emission
BS III
Torque
400 Nm @ 1300-1600 rpm
Gradeability
40%
Gear Box
GBS-40 Synchromesh 5F+1R
Clutch
310mm Dia, Single plate dry friction
Steering System
Power steering
Brakes
Dual Circuit full air S-Cam brakes
Suspension - Front
Semi-Elliptical Leaf Springs
Suspension - Rear
Semi-Elliptical Leaf Springs
Shock absorber
Hydraulic double acting telescopic type at front and rear
No of Tyres
6+1
Tyre Size
8.25 x 16 - 16PR (Front - Rib, Rear - Lug)
Axle - Rear
Single reduction, hypoid gears, full floating axle shafts. Banjo Axle RA1068. Axle Ratio : 4.857
Frame
Ladder type heavy duty frame with riveted/bolted cross members Side members are of channel section Depth -200 mm (max) Flange Width -60mm Thickness 5mm
Length
5230 mm
Width
2188 mm
Height
2418 mm
Wheelbase
2775 mm
Overall Length
5230 mm
Max Width LB
2188 mm
Turning Circle Radius
10.2 m
Turning Circle Diameter
10.2 mm
GVW
9600 kg
GCW
3375
Kerb Weight
6225
Fuel Tank Capacity
90 L
Cabin
Day Cab
Cargo Box Dimensions
3.5 Cu.M
Seats
D+1
Warranty
1 Year or 64000 kms, whichever is earlier
