Move ahead with the power to do more
-
Weveller Suspension
Suspension
-
5700 mm
Wheelbase
-
569 Nm
Torque
-
160 HP
Engine Power

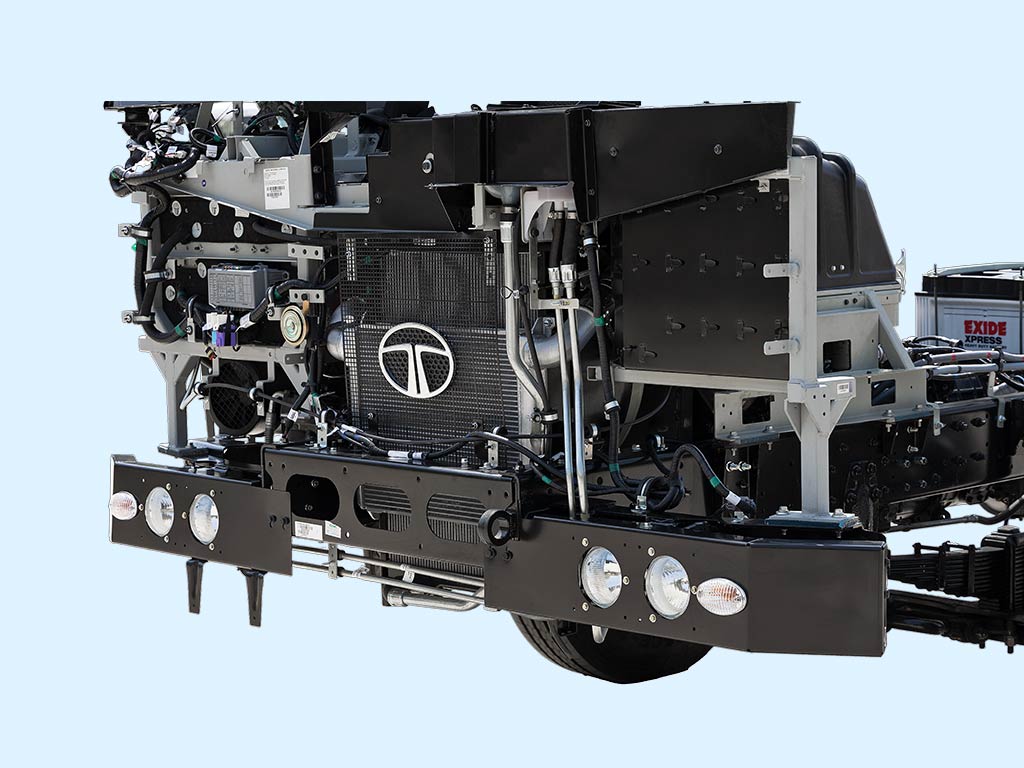

LPO 1616
Redefine passenger transport with the Tata Motors LPO 1616_57WB. A tested Cummins B5.9 160 HP EI oil-cooled turbocharged and after cooled engine delivers a maximum power of 160 HP at 2500 rpm and a torque of 569 N-m @ 1400-1700 RPM. It effortlessly conquers diverse traffic situations while maintaining fuel efficiency.
Its 6-speed G600 with O.D. gearbox ensures seamless gear transitions, enhancing the overall travel experience. A dual-circuit, full air S-CAM brake system - 394mm Dia. provides safety for the occupants.
- Oil Cooled Turbocharged and After cooled Engine
- 160 HP Maximum Power
- TATA 6-Speed G600 with O.D. gearbox
- Dual Circuit, Full Air S-CAM Brake System, 394mm Dia.

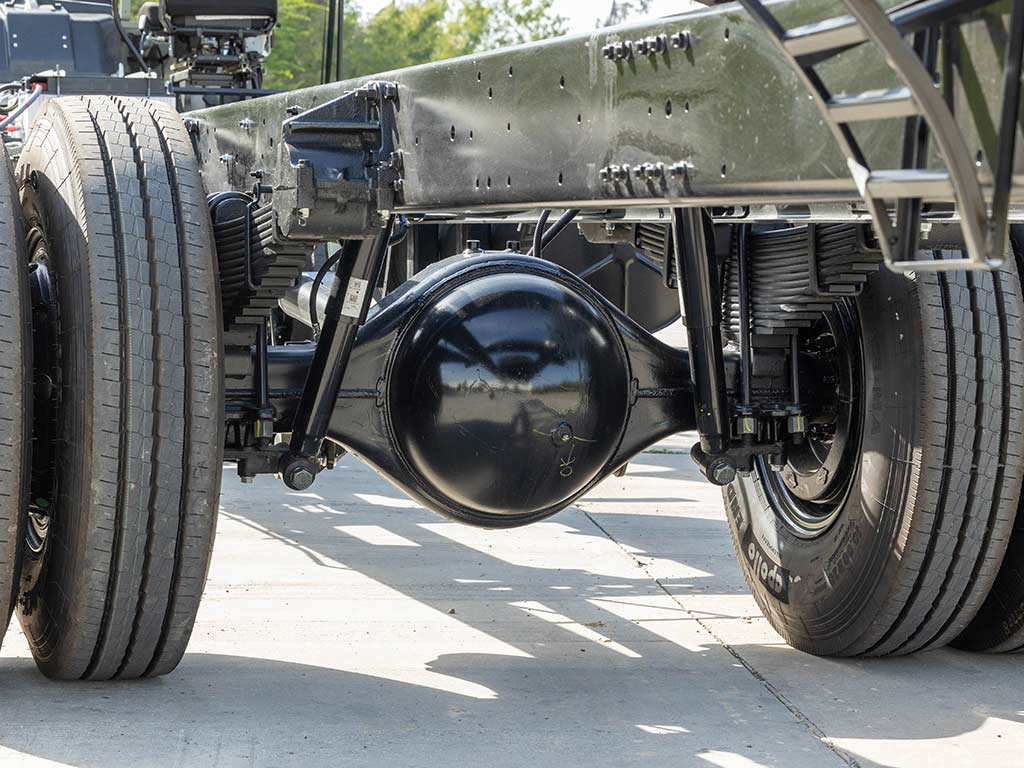

Its Weveller suspension at the front and rear is built to ensure exceptional stability and passenger comfort. With a seating capacity of 52+D, this bus provides ample space for passengers and the crew. Embark on a new level of travel comfort and reliability with the Tata Motors LPO 1616_57WB.

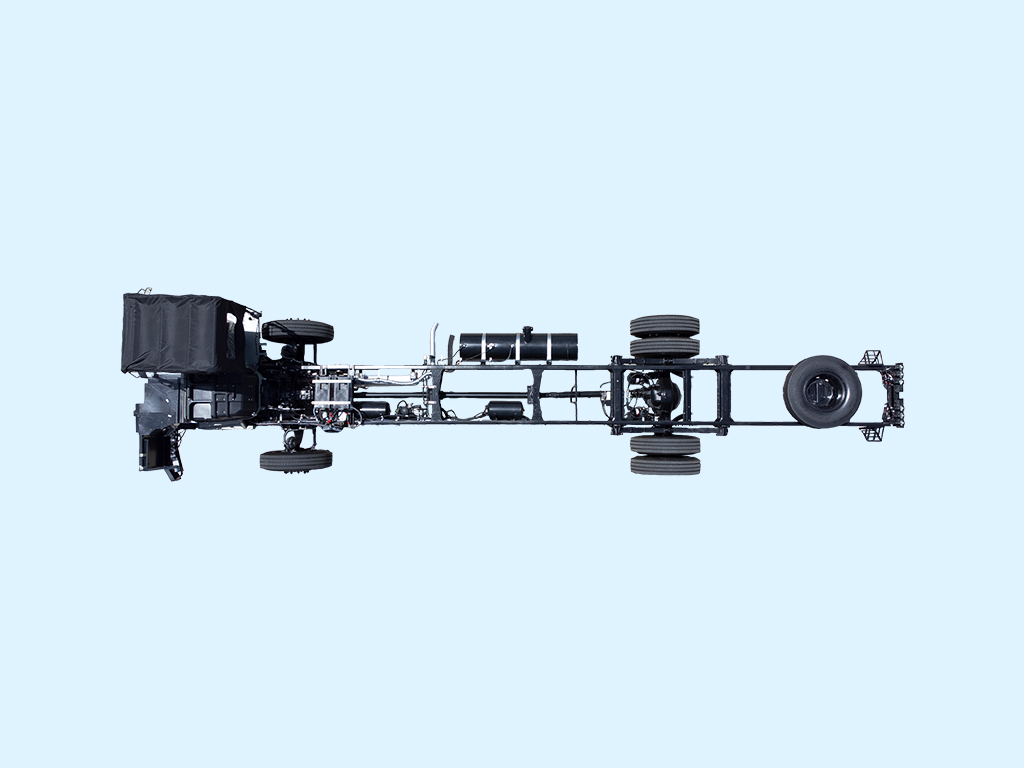

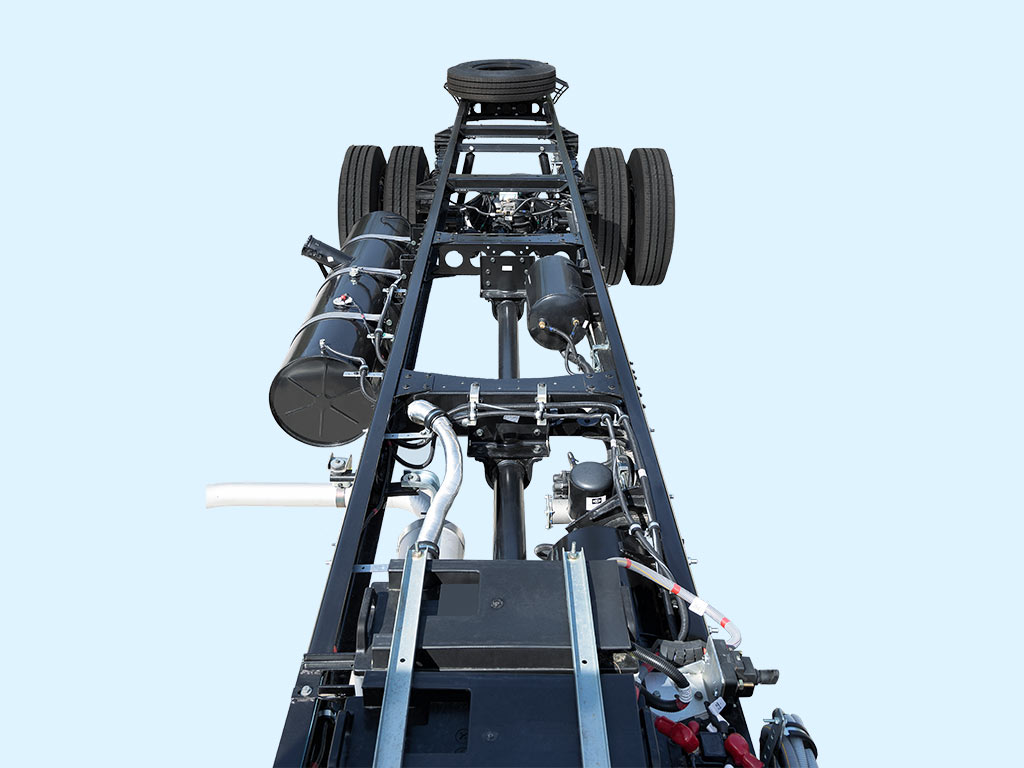

Watch the LPO 1616 57 WB BS-I Chassis
Features designed for performance and profits
01LPO 1616 specifications
Engine
CUMMINS B5.9 160 HP EI
Engine Type
Oil cooled Turbocharged and aftercooled Engine
Engine Capacity
5.9 liters
Max Engine Output
119KW @ 2500 RPM
Cylinders / Displacement
6 Cylinder inline / 5.9 litres
Max Speed
107 kmph
Torque
569 Nm @ 1400 RPM
Gradeability
10.2 Degree
Gear Box
G-600 with O.D 6/6 0.77
Clutch
Single plate dry friction type - 352 mm Dia.

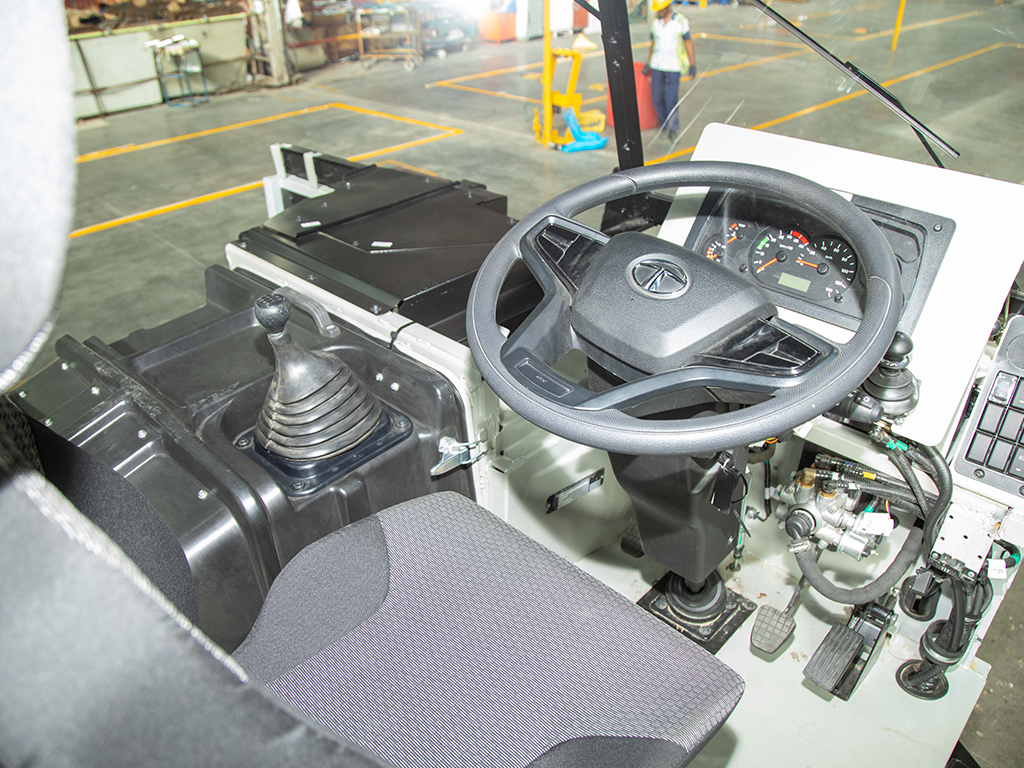

Steering System
Integral hydraulic power assisted Steering, Tiltable & telescopic

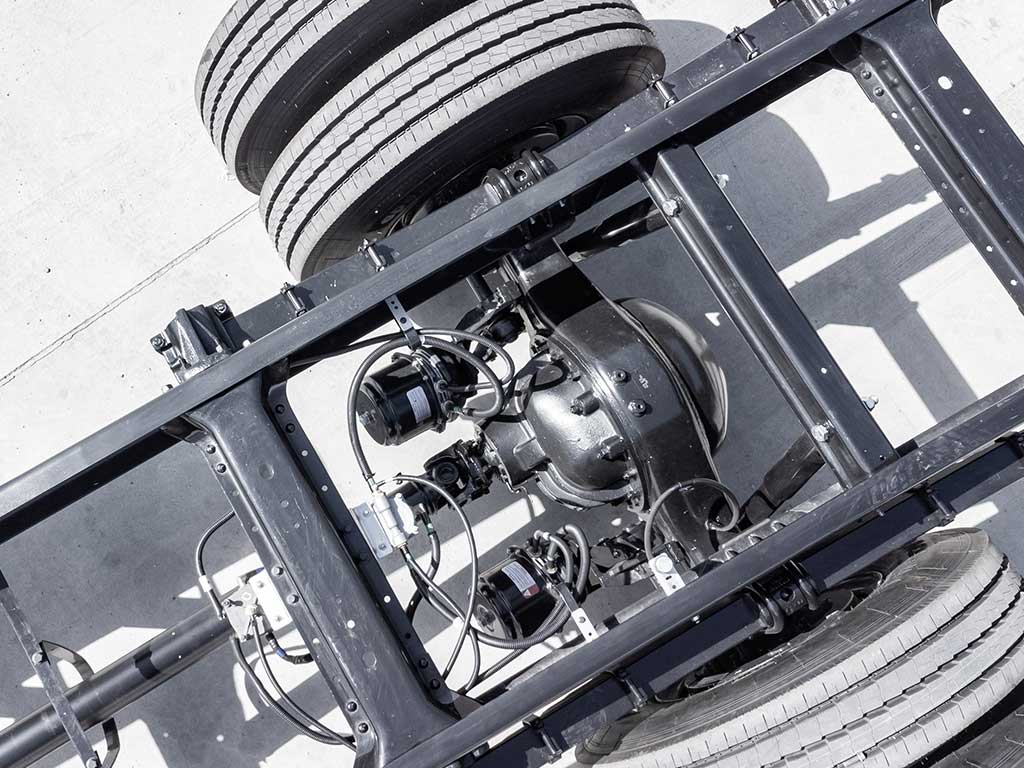

Brakes
Dual circuit, full air S-CAM brake system Spring actuated parking brake acting on rear wheels
Suspension
Weveller Suspension at Front & Rear
Suspension - Front
Weveller Suspension
Suspension - Rear
Weveller Suspension

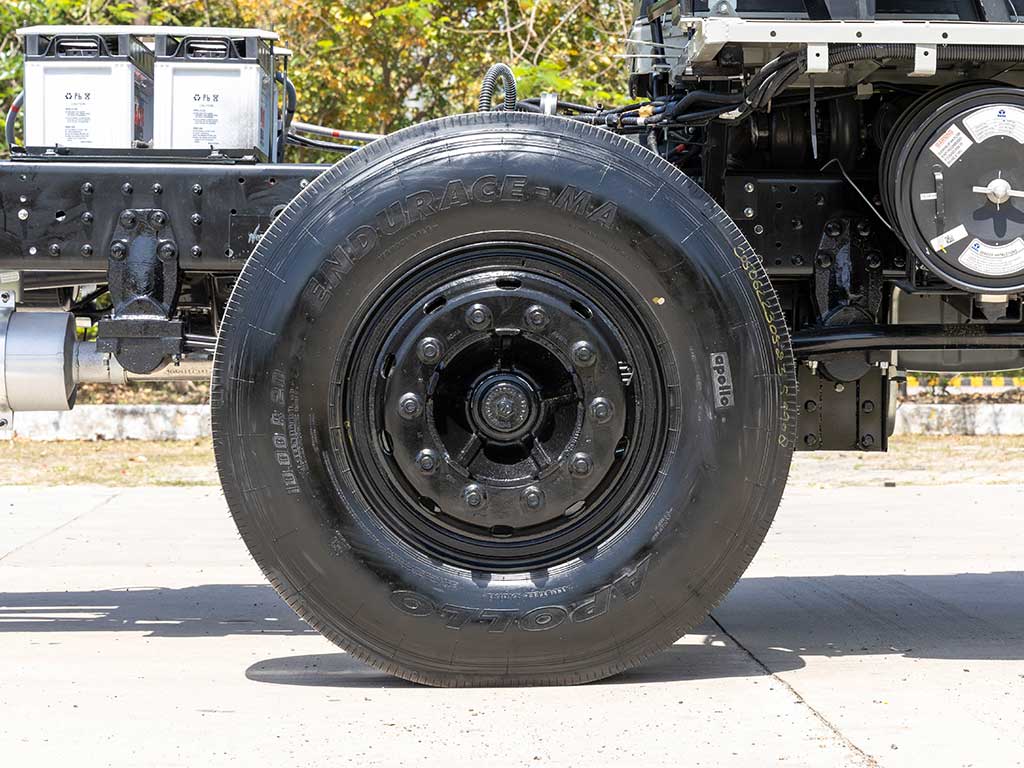

Tyre Size
10R 20 16PR
Length
10815 mm
Width
2580 mm
Height
1890 mm
Wheelbase
5700 mm
Ground Clearance
240 mm
Turning Circle Radius
24000 mm
GVW
16200 kg
Kerb Weight
Chassis: 4800 Bus Body: 9830 (Max)

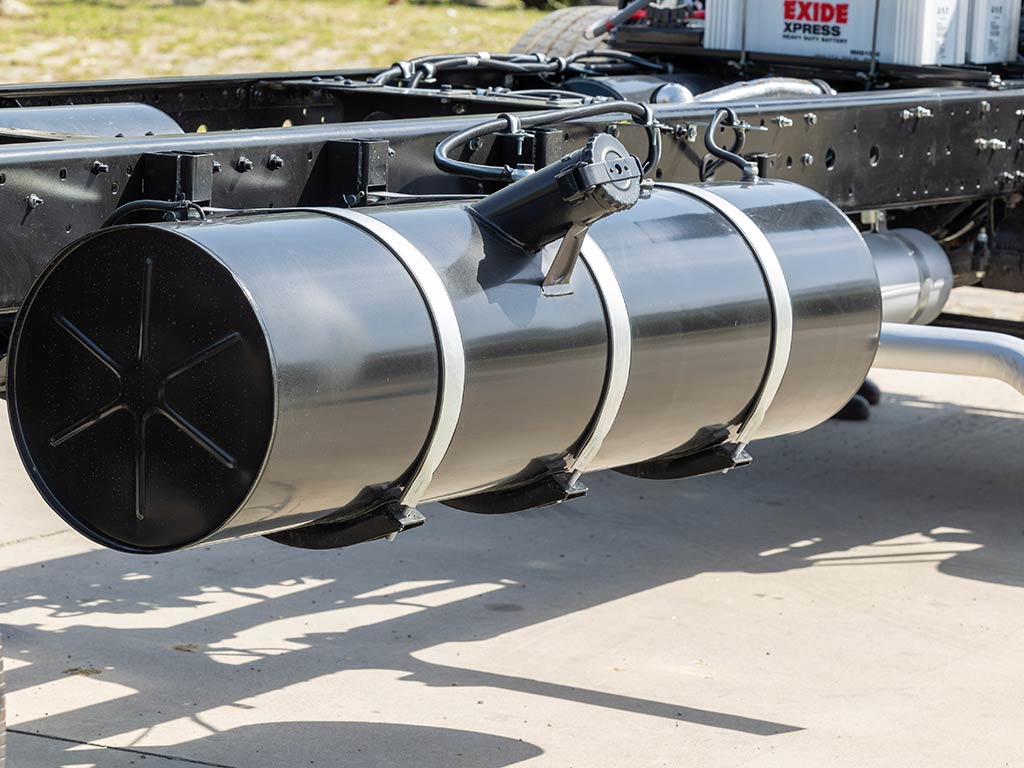

Fuel Tank Capacity
250 litres
Battery
2x12 Volts, 150 Ah
Alternator
90AMPS
Seats
52+D
Warranty
3 years or 3 Lac KM (1st year comprehensive, 2nd & 3rd year on engine & driveline)
